Decorative extractor hood
Model: Seville
IMPORTANT SAFETY INSTRUCTIONS:
WARNING: DISCONNECT THE RANGE HOOD FROM
POWER SUPPLY BEFORE SERVICING.
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a) Do not use this fan with any solid state speed control device.
b) Use this unit only in the manner intended by the manufacturer.
If you have questions, contact the manufacturer.
c) Before servicing or cleaning unit, switch power off at service
panel and lock service panel to prevent power from being
switched on accidentally. When the service disconnecting
means cannot be locked, securely fasten a prominent warning
device, such as a tag to the service panel.
CAUTION: FOR GENERAL VENTILATING USE ONLY.
DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE
MATERIALS AND VAPORS.
CAUTION: To reduce the risk of fire, use only metal duct work.
WARNING - TO REDUCE THE RISK OF A RANGE TOP
GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
cooking flaming foods.
c) Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan or filter.
d) Use proper pan size. Always use cookware appropriate for the
size of the surface element.
WARNING - TO REDUCE THE RISK OF INJURY TO
PERSONS IN THE EVENT OF A RANGE TOP GREASE
FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet,
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - you may be burned.
c) DO NOT USE WATER, including wet dishclothes or towels
- a violent steam explosion will result.
d) Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you
already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The Fire Department is being called.
4. You can fight the fire with your back to an exit.
WARNING - SUFFICIENT AIR IS NEEDED FOR PROPER
COMBUSTION AND EXHAUSTING OF GASES THROUGH
THE FLUE (CHIMNEY) OF FUEL BURNING EQUIPMENT
TO PREVENT BACK DRAFTING. FOLLOW THE
Call 1-800-667-8721 anywhere in the US and Canada
READ & SAVE THESE INSTRUCTIONS
HEATING EQUIPMENT MANUFACTURER'S GUIDELINES
AND SAFETY STANDARDS SUCH AS THOSE PUBLISHED
BY NATIONAL FIRE PROTECTION ASSOCIATION (NFPA),
AND THE AMERICAN SOCIETY FOR HEATING,
REFRIGERATION AND AIR CONDITIONING ENGINEERS
(ASHRAE), AND LOCAL CODE AUTHORITIES.
INSTALLATION INSTRUCTIONS:
WARNING - TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including Fire-Rated construction.
b) Sufficient air is needed for proper combustion and exhausting
of gases through the flue (chimney) of fuel burning equipment
to prevent back drafting. follow the heating equipment
manufacturer's guidelines and safety standards such as those
published by National Fire Protection Association (NFPA), and
the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and local code authorities.
c) When cutting or drilling into wall or ceiling, do not damage
electrical wiring or other hidden utilities.
d) Ducted fans must always be vented to the outdoors.
e) Use only metal ductwork.
WALL MOUNTING
• Connect the plastic conical outlet piece supplied with the hood
to an exhaust pipe connected directly to the outside. (Fig. 1)
• Screw on the connection box following Fig. 1 with the two
1/8" x 11/16" screws supplied in the box of accessories.
• The accessories needed to install the hood are inside the hood.
• Prepare a hole in the unit measuring 10.23" x 18.11" as shown
in figure 3 and screw in the extractor hood to the unit with
the 4 - 7/12" x 13/11" screws which are provided in the
accessories bag.
• This fan shall be mounted a minimum of 18 inches above the
heat source.

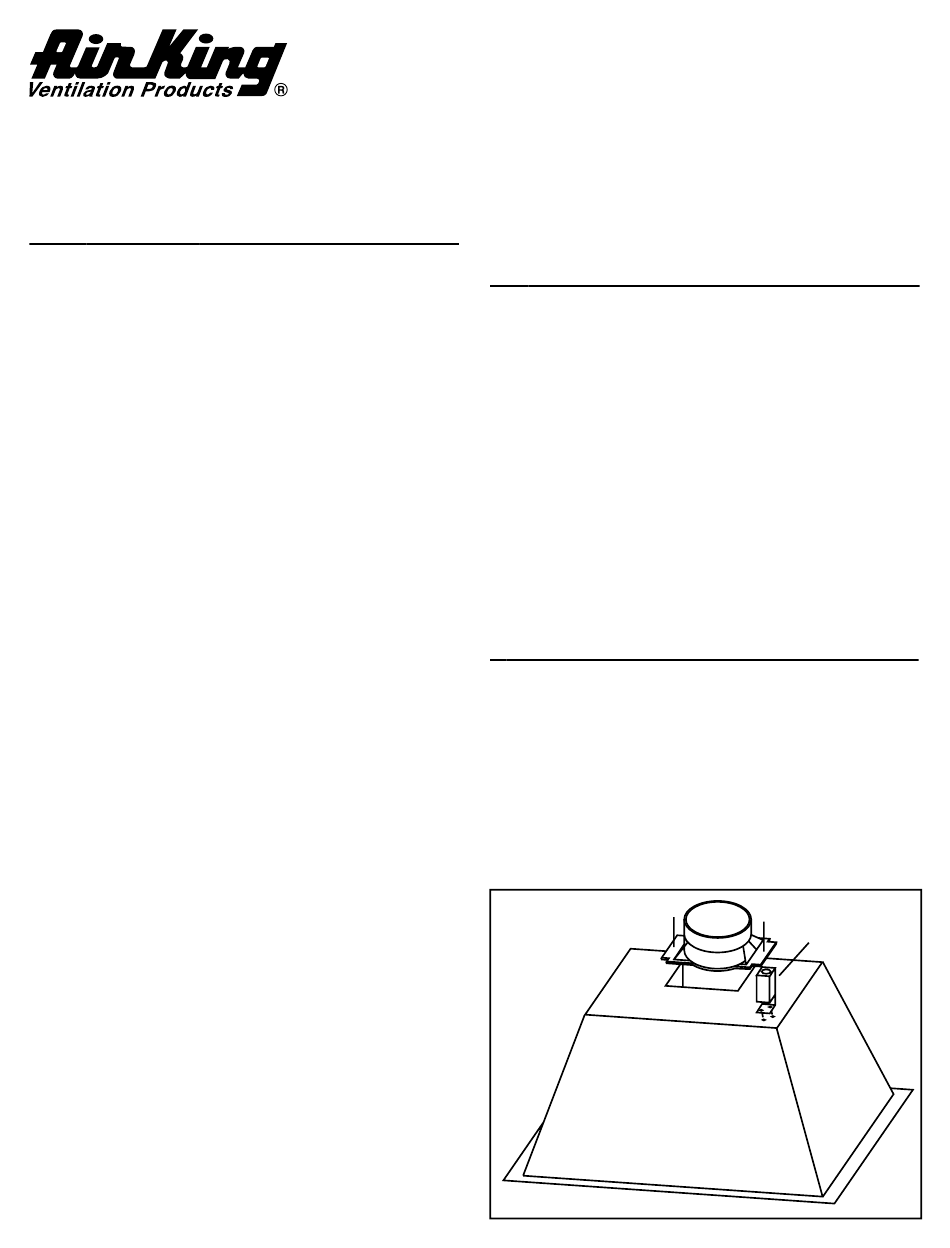

Figure 1
www.rangehoods.com
-
Junction
Box A
