657
MOTORIZED TREADMILL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 657 and is the answer not in the manual?

Questions and answers

Related Manuals for FitLux 657

Summary of Contents for FitLux 657

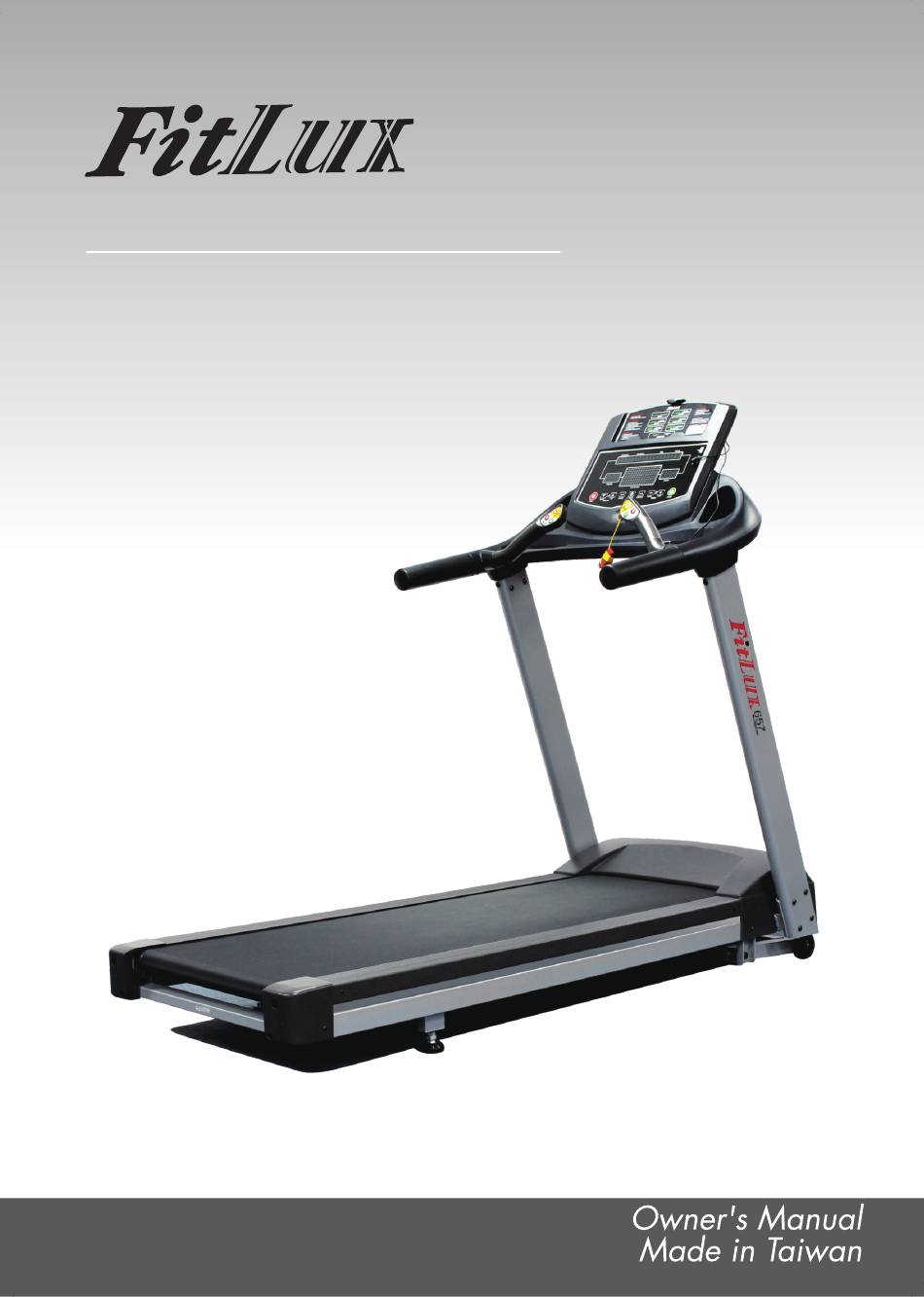

  • Page 1 MOTORIZED TREADMILL...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ........IMPORTANT SAFETY INSTRUCTIONS P .

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Please read the following basic precautions prior to use of the treadmill: * Never operate the treadmill with the air openings blocked. * Keep air openings free of lint, hair and the likes. WARNING * This treadmill requires a dedicated circuit as 110V/220V 20/15AMP separately that is not shared by any other electrical appliances.

  • Page 4: Electrical Grounding Instructions

    * Do not walk or jog barefoot or without shoes. * Do not plug into the same outlet with any * Do not walk or jog in loose shoes or slippers. other electrical appliance while using this Athletic shoes are always recommended treadmill.

  • Page 5: Caution: Before And After Running On The Treadmill

    CAUTION: BEFORE AND AFTER RUNNING ON THE TREADMILL Before Running: 1. Read the manual first for familiarization of the computer and other important features. 2. Before starting the treadmill, always stand on two side rails on both sides (not on the running belt) as shown on drawing.
  • Page 6 What to lubricate? Do not lubricate with other than our approved lubricant. Your treadmill comes with one 30ml tube of silicone. For further lubrication, you may order from distributor for our 200ml silicone: 200ml silicone in one bottle with 35cm applicator. 100% silicone, non-petroleum base, contains of no harmful solvents, non-toxic and nonflammable.

  • Page 7: Assembly Parts List

    ASSEMBLY PARTS LIST ......MAIN FRAME ......COMPUTER FRAME .

  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1.: Well connect the cable from right Front Post (3) to the cable from Main Frame STEP 2: Attach Front Post to the u-bracket on the Main Frame (1). STEP 3: Use 4 Bolts (A) to fix front post on the main frame.
  • Page 9 STEP 4: Ask one person to hold the Computer Frame (2) at the top of two Front Posts (3). Well connect the cables (4-1). Then insert Computer Frame (2) into top of Front Posts and fix by (B) (4-2). SCREW While inserting Computer Frame into Front Post, please ensure not to cut, press, bend or deform the cables inside.

  • Page 10: How To Operate

    One AUDIO wire is attached for audio input. HOW TO OPERATE For BM I 1. Press Speed / or Incline / button to choose male or female. Press Enter to confirm, figure for age flashes. 2. Press Speed or Incline / button to set age, press Enter to confirm, figure for height flashes...
  • Page 11 For Preset program P1 ~ P5 1. Press Profile button to choose program P1 Aerobic, P2 Cardio Vascular, P3 Fat Burn, P4 Speed Interval or P5 Hill Interval. 2. Press Enter and Speed / or Incline button to choose Level 1 ~ 3. 3.
  • Page 12 4.30 seconds after starting operating, if actual pulse is within “+ - 10 times” of Max. set pulse A.Then the following detection will be done in every 10 seconds. B.When actual pulse rate is “+ - 10 times” of Max. set pulse, speed will automatically decrease or increase at 0.2 KPH per detection.

  • Page 13: Computer Instructions

    COMPUTER INSTRUCTIONS SAFETY KEY Safety Key is for the operation and emergency stop. Before beginning a workout session ensure safety key is securely attached to an article of your clothing. START BUTTON It's to start the machine and figures 5 to 0 will count down in the window before machine starts.

  • Page 14: Functions Display

    FUNCTIONS DISPLAY SPORTS DATA & EXERCISE INSTRUCTION WINDOW: It displays related data from 4 function windows including Distance, Calories, Time and Pulse. PULSE : It shows your heart beat when holding your hands on the sensor plates on two handlebars. TIME: Count up: accumulate total working time from zero to 99:99.
  • Page 15 PROFILE FOR RANDOM PROGRAM (P1~P12) Random Program P 1 ~ P 4 SPEED & INCLINE DATA SPEED SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 2.0 KPH 2.0 KPH 3.0 KPH 3.0 KPH Interval 1 4.0 KPH 6.0 KPH 3.0 KPH 3.0 KPH Interval 2 6.0 KPH...
  • Page 16 Random Program P 5 ~ P 8 SPEED & INCLINE DATA INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 4.0 KPH 4.0 KPH 4.0 KPH 4.0 KPH Interval 1 4.0 KPH 4.0 KPH 4.0 KPH 4.0 KPH Interval 2 4.0 KPH 4.0 KPH 4.0 KPH...
  • Page 17 Random Program P9 ~ P12 SPEED & INCLINE DATA SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 2.0 KPH 2.0 KPH 3.0 KPH 3.0 KPH Interval 1 4.0 KPH 6.0 KPH 3.0 KPH 3.0 KPH Interval 2 6.0 KPH 8.0 KPH 4.0 KPH 5.0 KPH...

  • Page 18: Profile For Program

    PROFILE FOR PRESET PROGRAM (P1~P5) Preset Program P 1 ~ P 5 SPEED & INCLINE DATA HILL SPEED SPEED AEROBIC CARDIO VASCULAR FAT BURN INTERVAL INTERVAL INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 4.0 KPH 4.1 KPH 5.0 KPH 5.0 KPH 4.0 KPH...

  • Page 19: Master Power Switch Location

    MASTER POWER SWITCH LOCATION To completely shut off power to the treadmill, turn off master power switch and unplug from outlet. ERROR MESSAGE & TROUBLE SHOOTING E1 (ERROR 1): When the machine starts but computer could not read the signal from sensor for 7 seconds, E1 will be shown on the computer.

  • Page 20: Aligning The Running Belt

    ALIGNING THE RUNNING BELT Ensure the running belt is centered on your treadmill at all times FIGURE A Running style and Non-level surface are two instances which may cause the belt to drift off center. Minor adjustments to the two bolts at the rear of the treadmill are necessary when the belt has drifted off center (See Fig.

  • Page 21: Cleaning

    CLEANING Firstly, make sure the treadmill is off and unplugged from the electrical outlet. To remove dust, use a small vacuum nozzle to carefully vacuum around all visible components. To remove film or dust, use a slightly damp rag with a mild cleaning agent sprayed onto the rag only. Be careful not to immerse any treadmill component with any liquids.

  • Page 22: Exploded Drawing

    Exploded Drawing...

  • Page 23: Parts List

    WASHER (M10 x 22) CABLE(500 / brown) CABLE (6P x 950L) CABLE (90 / blue) CABLE (60 / brown) CABLE (160 / yellow-green) CABLE (170 / brown) INCLINE MOTOR BREAKER (15A) POWER SOCKET POWER SWITCH L-HOOK (657) BS WASHER (M4)
  • Page 28 20160825...
