Please read & understand all these instructions and the unvented cylinder / thermal
store specifi c instructions before commencing installation.
Please leave this manual with the user for future reference.

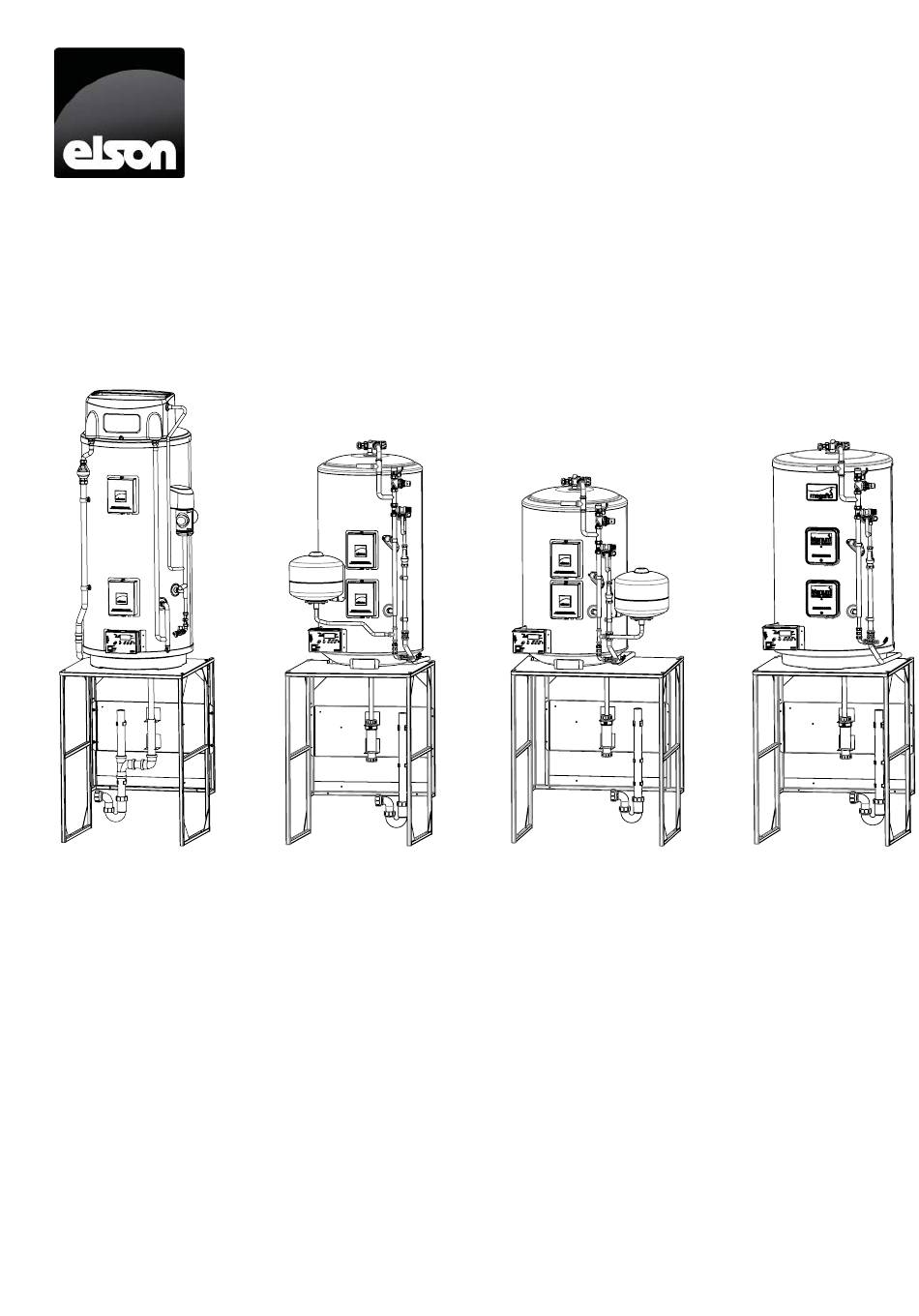

EBP Packages Manual
Directly Heated Hot Water Packages
Installation & Servicing Instructions
TO BE USED IN CONJUNCTION WITH ALL THE
INSTRUCTION MANUALS SUPPLIED WITH THE
PRODUCTS CONTAINED WITHIN YOUR PACKAGE.
IMPORTANT
Advertisement
Related Manuals for Elson Zircon
Summary of Contents for Elson Zircon
- Page 1 TO BE USED IN CONJUNCTION WITH ALL THE INSTRUCTION MANUALS SUPPLIED WITH THE PRODUCTS CONTAINED WITHIN YOUR PACKAGE. Manual Contents • Dimensional Details - Coral Aquanox • Dimensional Details - Zircon • Dimensional Details - Megafl o eco • Installation Instructions • Spare Parts - Zircon •...
- Page 2 EBP Packages Manual Dimension Details - Coral Aquanox Minimum Clearance 225mm CORAL CORAL AQUANOX AQUANOX 120td 150td 175td 210td Hydraulic 2011 2174 2350 1680 r standing store height o frame). r information on the full range of Coral Aquanox models please go to www.elsonhotwater.co.uk Available depth for washing machine 580mm.

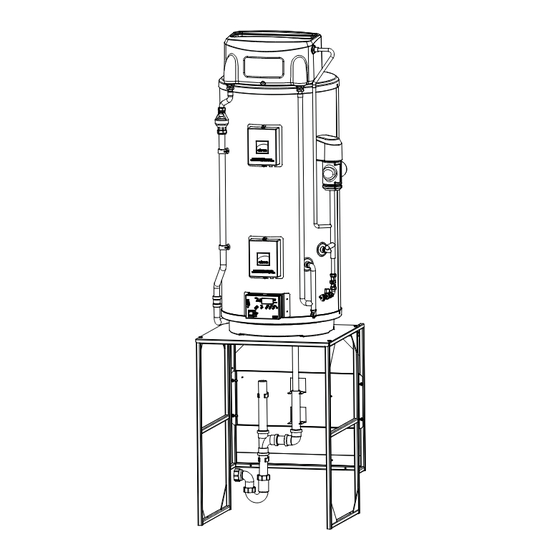

- Page 3 **For further information on the full range of Zircon models please go to www.elsonhotwater.co.uk *** The diagram is a representation of an Elson Zircon with cold water control pack 3 on a frame. Available depth for washing machine wide frame 580mm, deep frame 720mm.
- Page 4 EBP Packages Manual Dimension Details - Megafl o eco Minimum clearance above the TMV (1) 60mm Hydraulic 40mm r re re r Page 4...
- Page 5 3) Ensure that the front of the cylinder is square with frame. The If in doubt please consult Elson Technical. immersion heater enclosures should be facing forwards. Page 5...
- Page 6 EBP Packages Manual Thermal Store Fitting Instructions Store Location Ring Frame with HepVo Frame with Double Waste pipe Pipe Clip Pipe Clip Lower Overfl ow Pipe Lower Overfl ow Lower Overfl ow Pipe Pipe Double waste pipe O Dry Trap Fixing Holes 4) Fit lower overfl...
- Page 7 Cold Water Pack 3 Cold Water Pack 2 Cold Water Pack 3 Cold Water Pack 1 Please note that on EBP Packages with a Zircon direct cylinder, this spare parts list replaces the spare parts list in the Zircon manual. Page 7...
- Page 8 EBP Packages Manual Megafl o eco Direct EBP Packages Spare Parts Spare Parts Numbers for Megafl o eco Horstmann Electronic 7 Controller Item Description Part Number Thermostatic mixing valve assembly 90 002 460 15mm single check valve 95 607 987 1/4 turn isolation / drain valve 95 605 051 Horstmann electronic 7 controller...
- Page 9 EBP Packages Manual Coral Aquanox Direct EBP Packages Spare Parts Spare Parts Numbers for Coral Aquanox Horstmann Electronic 7 Controller Item Description Part Number Thermostatic mixing valve assembly 90 002 460 15mm double check valve 40 995 096 1/4 turn isolation / drain valve 95 605 051 Horstmann electronic 7 controller 24 500 002...
- Page 10 EBP Packages Manual Notes Page 10...
- Page 11 EBP Packages Manual Notes Page 11...
- Page 12 Spares The BDR Thermea products within For all technical support, replacement heateam the Elson package such as the boiler, parts & service issues please contact cylinder or thermal store will follow the Elson service desk. heateam is Elson’s service division.
