2.7.3 Minimum Required Fall Clearance for up to Two Workers w/SRDs
When attaching up to two Self-Retracting Devices (SRD) to the FallTech SteelGrip® Cable HLL system shown in Figure 5, it is permissible to
calculate the required clearance below the working surface by including the typical SRD deceleration distances detailed in the SRD user's
instruction manual. Calculating total clearance requirements using typical performance attributes for the SRD will generally
result in reduced clearance requirements.
A
B
C
A
B
C
D
E
F
G
1. Overhead Anchorage
* If SRD Deceleration Distance is unknown, use 2 feet for ANSI Z359.14 Class A SRDs or use
MHLL12 Rev A

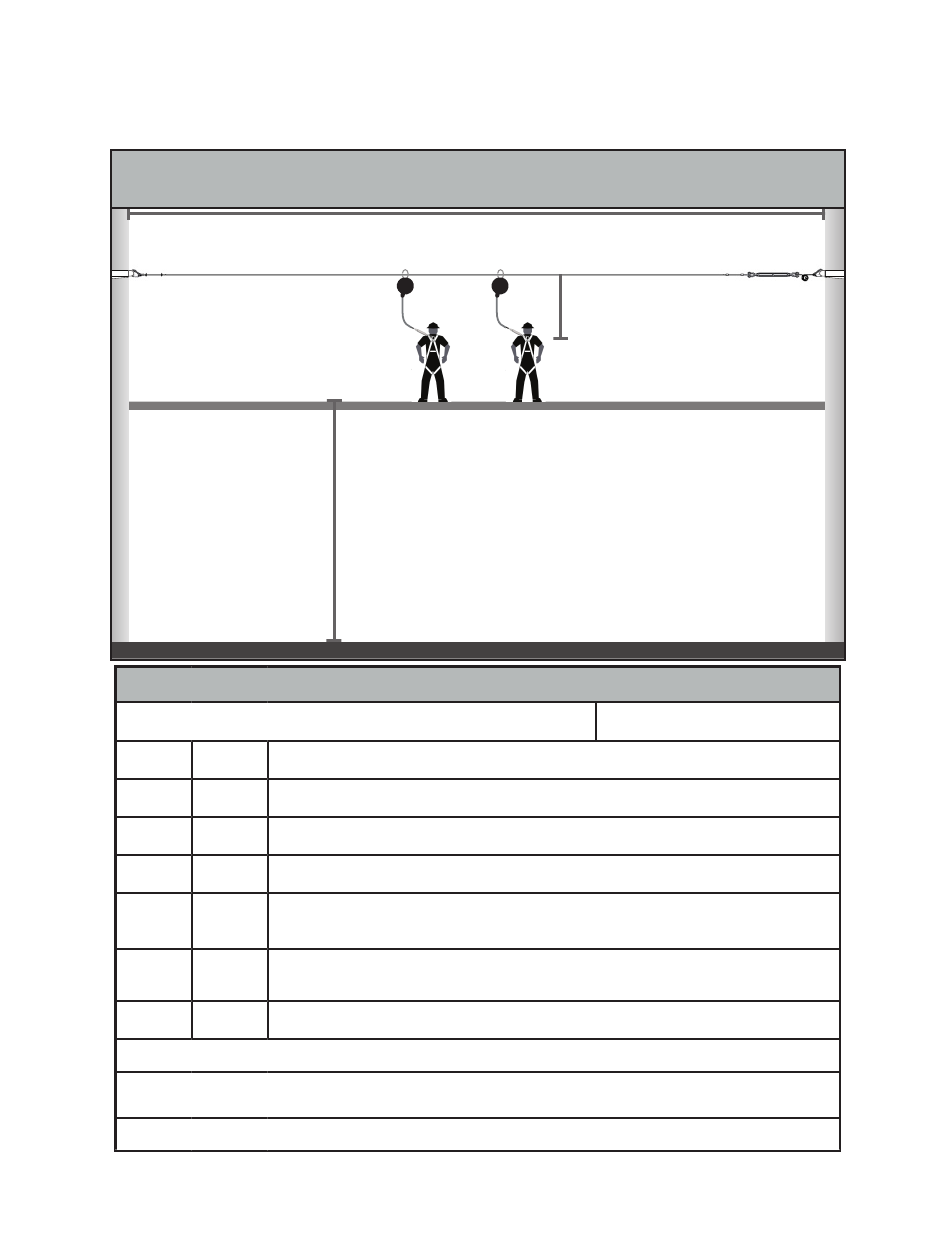

Figure 5 - SteelGrip® Temporary Cable HLL with SRD Minimum Fall Clearance
(Maximum Two Workers)
3
SteelGrip® Temporary Cable HLL with SRD Minimum Required Fall Clearance
310 lbs. Maximum User Capacity Each
Final Vertical HLL Sag (see chart on the following page)
Total SRD Deceleration Distance from User Instruction Manual*
1 ft
D-ring Shift and Harness Stretch
3 ft
Safety Factor
Sub Total - Minimum Required Fall Clearance
for direct overhead use of SRD (sum of A, B, C and D only)
* Additional Fall Clearance Calculation
1 ft
due to the use of stanchions
Total Minimum Required Fall Clearance When Using Stanchions - (Sum of E and F)
2. Walking/Working Surface
4-1/2 feet for ANSI Z359.14 Class B SRDs.
** Work below HLL to avoid Swing Fall
1
2
3. Nearest Lower Level or Obstruction
092117
Max. Two Workers
