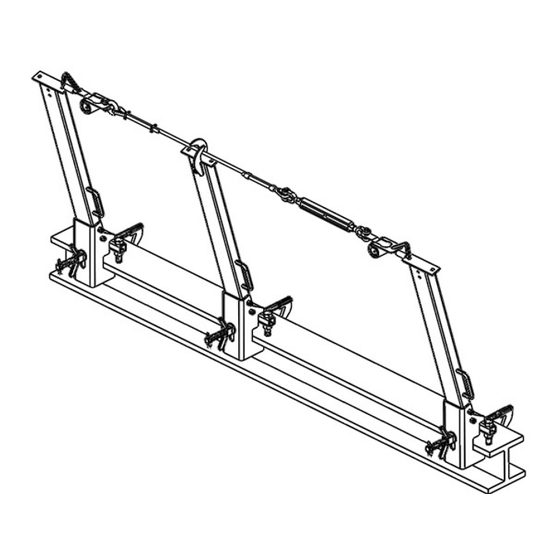

The FallTech SteelGrip® Temporary Cable Horizontal Lifeline (HLL) is designed as a
temporary reusable anchorage subsystem for the attachment of up to two
personal fall arrest systems (PFASs). The FallTech SteelGrip® Temporary Cable
HLL described in this manual when used as instructed in this manual is OSHA
1910.140 and 1926.502 compliant.
This manual is intended to meet the Manufacturer's Instructions as required by the American National Standards
Institute (ANSI) Z359 and should be used as part of an employee training program as required by the Occupational
Safety and Health Administration (OSHA).

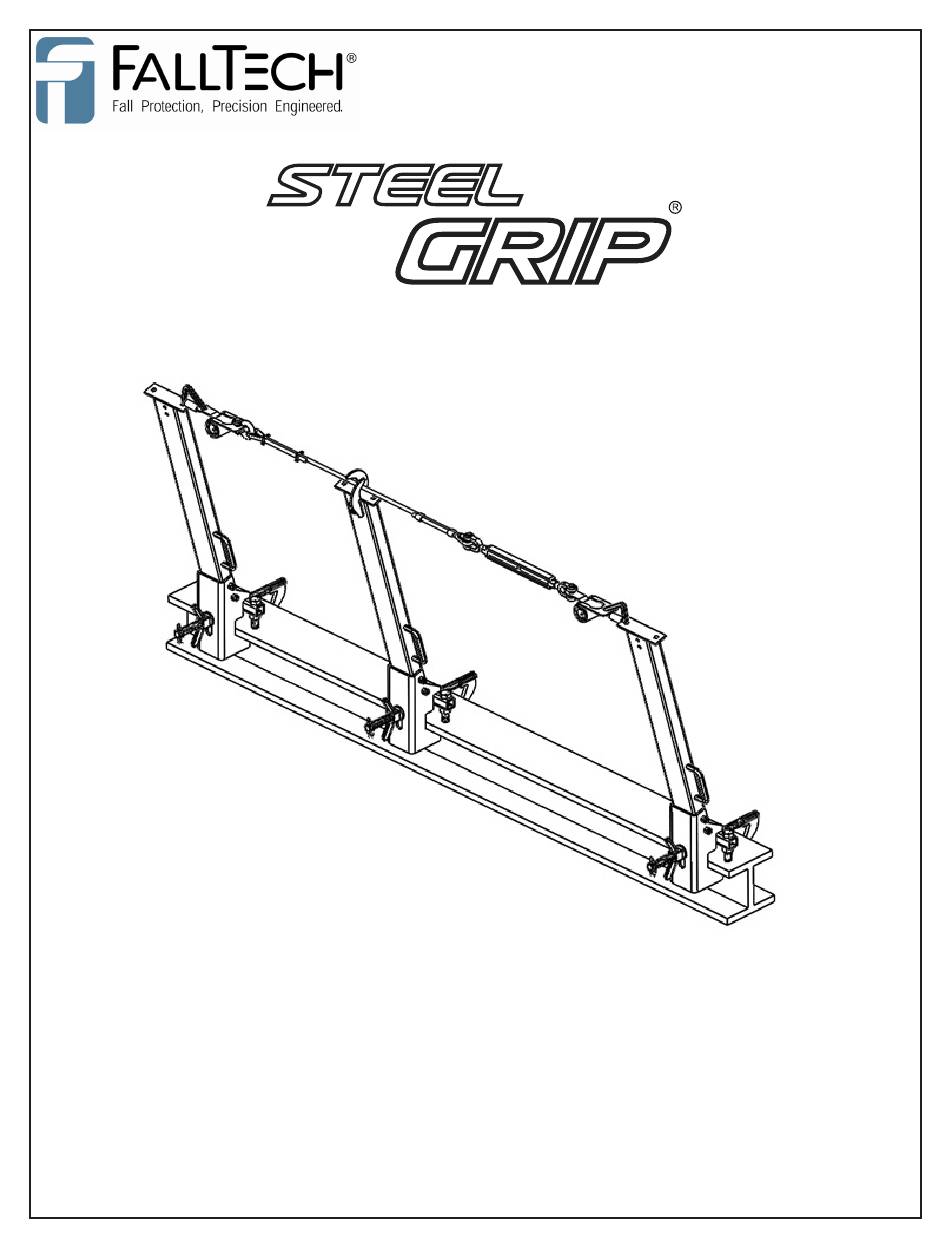

MHLL12 Rev A
Steel
GRIP
Temporary Cable Horizontal Lifeline
User Instruction Manual
092117

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SteelGrip Temporary Cable Horizontal Lifeline and is the answer not in the manual?

Questions and answers

Related Manuals for Falltech SteelGrip Temporary Cable Horizontal Lifeline

Summary of Contents for Falltech SteelGrip Temporary Cable Horizontal Lifeline

  • Page 1 Temporary Cable Horizontal Lifeline User Instruction Manual The FallTech SteelGrip® Temporary Cable Horizontal Lifeline (HLL) is designed as a temporary reusable anchorage subsystem for the attachment of up to two personal fall arrest systems (PFASs). The FallTech SteelGrip® Temporary Cable HLL described in this manual when used as instructed in this manual is OSHA 1910.140 and 1926.502 compliant.

  • Page 2: Table Of Contents

    Appendix A ......................... For the purposes of this manual, the FallTech SteelGrip® Temporary Horizontal Lifeline may be referred to as the HLL, the system or the lifeline. Throughout this manual, ANSI Z359.0-2012 fall protection words, phases and terms are used. These terms are all formally defined in Section 8.0 of this manual.

  • Page 3: Warnings And Important Information

    Do not alter or intentionally misuse this equipment. • Consult FallTech when using this equipment in combination with components or subsystems other than those described in this manual. • Do not connect rebar hooks, large carabiners, or large snap hooks to the FBH dorsal D-rings as this may cause a roll-out condition and/or unintentional disengagement.

  • Page 4: Application

    Application Purpose: The purpose of the FallTech SteelGrip® Temporary Cable HLL is to provide horizontal mobility for workers exposed to fall hazards and is designed as an anchorage subsystem for the attachment of up to two PFASs. The HLL is adjustable up to 100’ in length for a single span system and up to 330’...
  • Page 5 6’ unless otherwise specified by a specific anchorage solution. PFAS Selection: Only FallTech PFASs may be used in conjunction with this HLL system. The HLL may be used with FallTech shock absorbing lanyards, FallTech self-retracting devices and FallTech fall arrestor connecting subsystems.
  • Page 6 34.5’ * 7’ Freefall Distance scenario is only allowed when the SteelGrip® Temporary Cable HLL is attached to the FallTech SteelGrip® Stanchion. Freefall should be limited to 6’ or less when used with any other anchorage connector. MHLL12 Rev A...
  • Page 7 Minimum Required Fall Clearance for up to Two Workers w/SRDs When attaching up to two Self-Retracting Devices (SRD) to the FallTech SteelGrip® Cable HLL system shown in Figure 5, it is permissible to calculate the required clearance below the working surface by including the typical SRD deceleration distances detailed in the SRD user’s instruction manual.

  • Page 8: System Requirements

    24.0’ Rescue: The FallTech SteelGrip® Temporary Cable HLL is part of a complete PFAS. It is not intended as a rescue device. Users of this system presents a wide variety of potential rescue scenarios. Users of this system should understand their work environment and develop a rescue plan accordingly.

  • Page 9: Installation And Use

    Compatibility of Components: Equipment is designed for use with approved components and subsystems only. Substitutions or replacements made with non-ANSI Z359 compliant components or subsystems may jeopardize compatibility of equipment and may affect the safety and reliability of the complete system. Ensure compatibility between the connectors if non-FallTech components are used for fall protection.
  • Page 10 Assembly without FallTech Tension Indicator, skip to Step 3. Assembly with FallTech Tension Indicator: Remove cotter pins, unthread nuts, and remove bolts of two shackles. Attach a shackle on either side of the FallTech Tension Indicator. Align one shackle with the remaining Figure 9 hole of the SteelGrip®...
  • Page 11 Step 1: The HLL system described in this manual is designed for use with the FallTech SteelGrip® Stanchions, which provide a minimum two to one safety factor relative to the loads applied by the system, see Figure 17. In order to reduce the required fall clearance, the use of intermediate stanchions to reduce span length is recommended.
  • Page 12 5,000 lbs. (22.2 kN) in the absence of certification. Note: Single span lengths 60’ and shorter use a single FallTech SteelGrip®Coil Energy Absorber, see Figure 24 . Single span lengths longer than 60’ must use two FallTech SteelGrip® Coil Energy Absorbers, see Figure 25.

  • Page 13: Maintenance, Service And Storage

    Pre-Use Inspection: Prior to each the HLL system should be inspected by the user for damage, wear and to ensure the lifeline is properly tensioned. Please review the inspection checklist for inspection requirements. Inspection Frequency: Other than pre-use inspection, the FallTech SteelGrip® Horizontal Lifeline should be inspected by a competent person at least once a year.

  • Page 14: Labels

    Inspection Results: Inspection results should be recorded by a competent person at least once a year. Inspection Document: Record inspection results on the inspection record provided below, or similar document. INSPECTION RECORD PLANILLA de INSPECCIÓN Model # Serial # Modelo N° :____________________ N°...

  • Page 15: Definitions

    Definitions The following are general definitions of fall protection terms as defined by ANSI Z359.0-2012. Anchorage -A secure connecting point or a terminating component of a fall protection system or rescue system capable of safely supporting the impact forces applied by a fall protection system or anchorage subsystem. Anchorage Connector - A component or subsystem that functions as an interface between the anchorage and a fall protection, work positioning, rope access or rescue system for the purpose of coupling the system to the anchorage.
  • Page 16 Horizontal Lifeline – A component of a horizontal lifeline subsystem, consisting of a flexible line with connectors or other coupling means at both ends for securing it horizontally between two anchorages or anchorage connectors. Horizontal Lifeline Subsystem – An assembly, including the necessary connectors, comprised of a horizontal lifeline component and, optionally, of: a) An energy absorbing component or, b) A lifeline tensioner component, or both.

  • Page 17: Appendix A

    Appendix A Specifications for FallTech SteelGrip® Temporary Cable HLL Minimum Maximum Standards and Model # Tensile Strength User Kit Contents Regulations and Material Capacity 5000 lbs. Minimum Tensile Strength Cable: 3/8” Diameter 7X19 Galvanized Steel SteelGrip® Coil Energy Absorber: Stainless Steel...
  • Page 18 24” Stationary Beam Clamp Anchor Note: The above listing shows the most common FallTech anchors that are compatible with the FallTech SteelGrip® Temporary Cable HLL. Contact FallTech for additional information regarding other anchors not on this list. MHLL12 Rev A...
