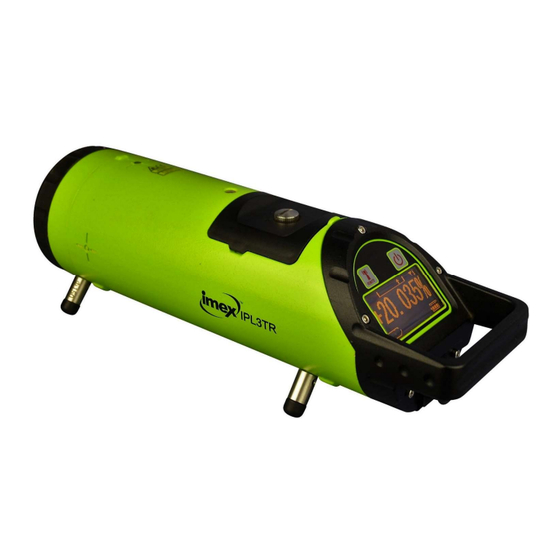

imex IPL3T Quick Start Manual

Pipe laser
Hide thumbs
Table of Contents

Advertisement

Quick Links

Quick Start Manual
IPL3T
PIPE LASER
QUICK START INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPL3T and is the answer not in the manual?

Questions and answers

Related Manuals for imex IPL3T

Summary of Contents for imex IPL3T

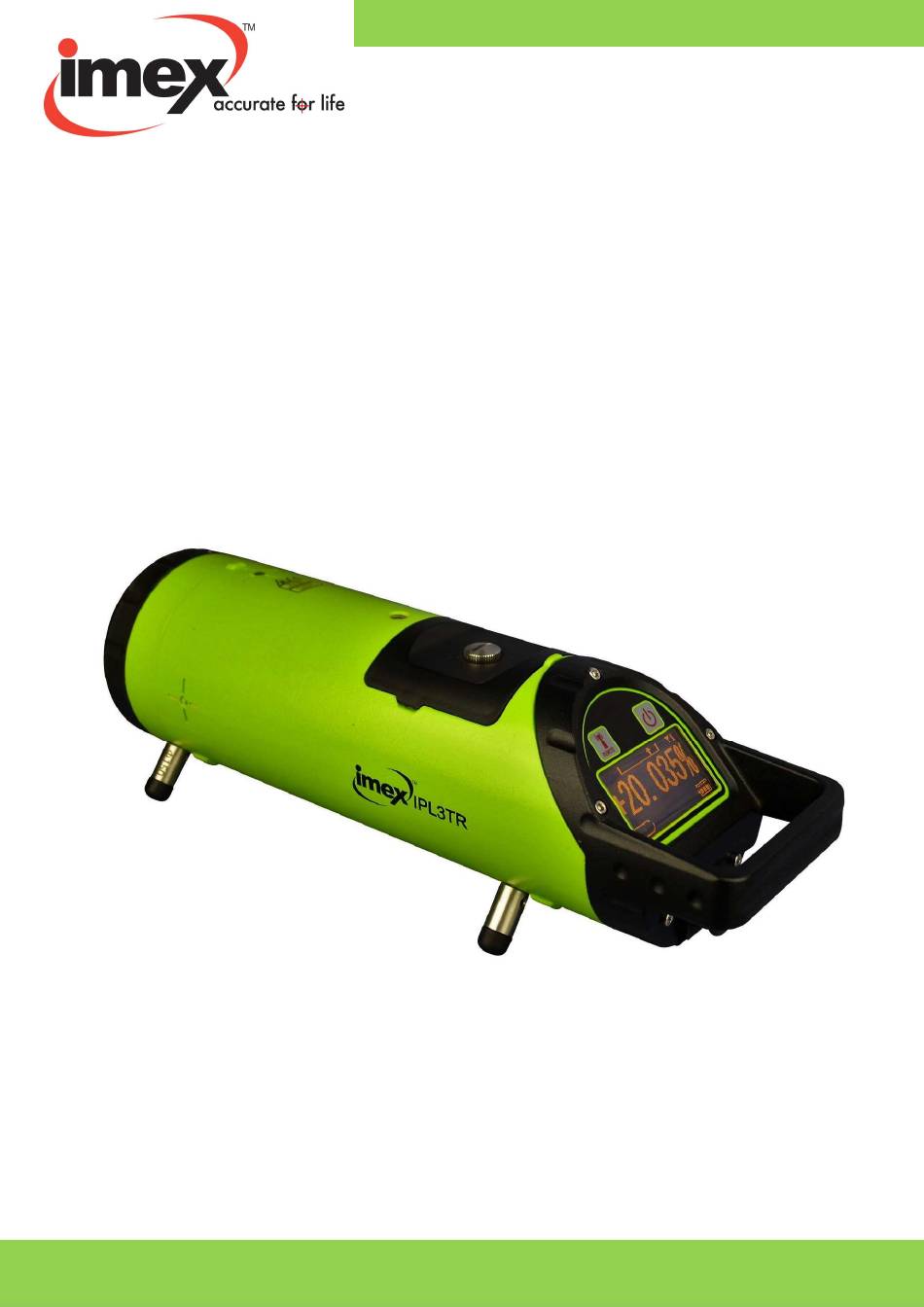

  • Page 1 Quick Start Manual IPL3T PIPE LASER QUICK START INSTRUCTION MANUAL...

  • Page 2: Table Of Contents

    Read carefully through the User Manual before using the product. Product The serial number of your IPL3T is indicated on the base of Identification the laser level. Please keep this recorded in your manual and always refer to this information, should you need to contact your Imex distributor.

  • Page 3: Features & Function

    1. Features and Functions Imex IPL3 Tpipe laser could output red or green self-leveling or graded set laser dot to provide precise horizontal and grade reference for tunnel excavating, pipe laying layout, pile driving and calibration with convenient operation and wide usage.

  • Page 4: Instrument Display

    3.2 Instrument Display 3.3 ON/OFF button a) Press ON/OFF button, the instrument will turn on, and self-level. b) Instrument will display the last set grade value. 3.4 Channel selection button Press this button to switch the channels from 1-9.The laser functions can only be controlled from a remote control on the same channel as the instrument.

  • Page 5: Grade Setting

    3.6 Laser left/right move button 3.6.1 Laser dot on-grade function a) Press buttons simultaneously and loosen after one second, the laser dot will automatically centre b) The symbol on LCD will flash during centering operations. c) After centering, LCD will display symbol.

  • Page 6: Beyond Tolerance

    3.9 Beyond Tolerance Alarm 3.9.1 (Front & Back Tolerance) When the instrument is placed in over incline position (front or back) or the grade is beyond the self-leveling range the laser will alarm (laser beam and symbol on LCD display will flash) You will then need to adjust the laser into tolerance range, see below;...

  • Page 7: Sleep Function

    3.11 Sleep Function The IPL3T is equipped with a sleep mode to save battery power by putting the laser to sleep without losing current working data a) Press the SLEEP button and the laser beam and LCD display will turn off and...

  • Page 8: Specifications

     Take the batteries out when the instrument is not in use for extended periods of time  Dry tools before putting into carry case  Keep the instrument in the carrying case when not in use. www.imexlasers.com © Copyright Imex Group International 2018...
