- Page 1 Quick Start Manual 88R/G ROTARY LASER LEVEL QUICK START INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Imex distributor. Serial number:………………………………………………………………… Validity This manual applies to the Imex i88R and i88G rotary laser of this levels and contains instructions required to operate these manual laser at a basic level. -
Page 3: Instrument Overview

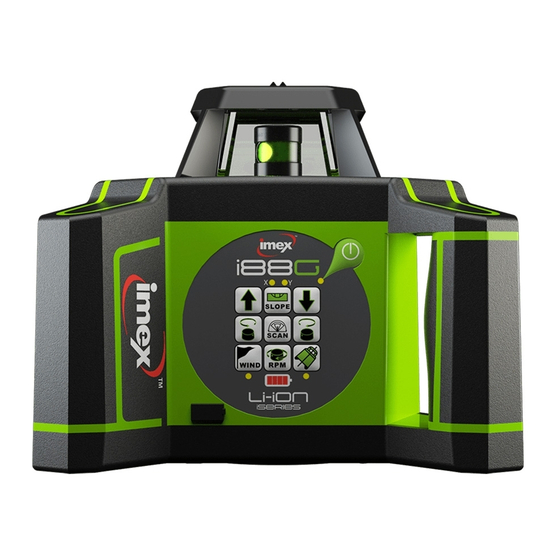

Instrument Overview i88G Laser Unit Rotary laser aperture Protective Lighthouse Control Panel Handle USB-C Port Control Panel a. X/Y Grade slope indicator f. On/Off b. Grade slope mode g. On/Off Indicator c. Grade slope adjustment arrows h. Scan mode d. Left & Right scan direction i. -
Page 4: Detector
LRX10 Laser Detector LRX10 Detector LCD Display a. Magnet b. Laser Sensor Window c. LCD Display d. LED Grade Indicators e. Detector Clamp f. On/Off g. Volume h. Accuracy (dead bands)/Alternate RL i. Grade LEDs Display j. Numeric Digit Display k. -
Page 5: Directions Of Use
When working in a very dusty environment place the laser up-wind so the dirt is blown away from the laser. Attach the i88R/G securely to a tripod or mount on a Setting up on a stable level surface. -
Page 6: Manual/Grade Slope
When activated the LED (d) will light. Mode When the TWS is activated on the i88R/G, if the unit is knocked or interfered with, the laser will stop spinning and the TWS indicator light will flash. The laser will then need to be reset by the operator before the laser will begin to spin again. -
Page 7: Rpm Mode
– right to for a horizontal line between 10˚-180˚ Using Scan Turn the i88R/G on and allow self-level. Mode Press the Scan button (h) to activate scan mode. Scan mode will activate and revert to 0˚... -
Page 8: Vertical Mode
Place the i88R/G on its back on a floor or board, or mount Vertical mode Ste-up alternatively on a tripod on the rear laser mount point. -
Page 9: Accuracy
5. Laser Accuracy General The Imex i77R is calibrated at point of manufacture and re checked prior to despatch to ±1.5mm/ 30m. It is the responsibility of the user to follow operating instructions and to periodically check the accuracy of the laser. If your i77R requires adjustment then please contact your nearest dealer 5.1 Checking the accuracy... -
Page 10: Care And Maintenance
. Care and Maintenance Transport When transporting the i77R always ensure that it is carried in the original foam lined carry case. Never transport the unit loose in your vehicle as the shock and vibration will affect the accuracy and could knock it out of calibration. -
Page 11: Laser Specifications
. Laser Specification Specification Operating Range 600m with detector Accuracy ± 1.5mm/30m Self –levelling ± 5° range Rotation Speed 0, 60, 120, 300, 800 rpm Laser 635nm Class 2 IP Rating IP66 Power 9Ah 3.7v Li-ion Battery Working time Approx 40 hours Battery charger 240v AC, 5v USB-C Car Charger Working... - Page 12 © Copyright Imex Group International 2018 Page | 11...
