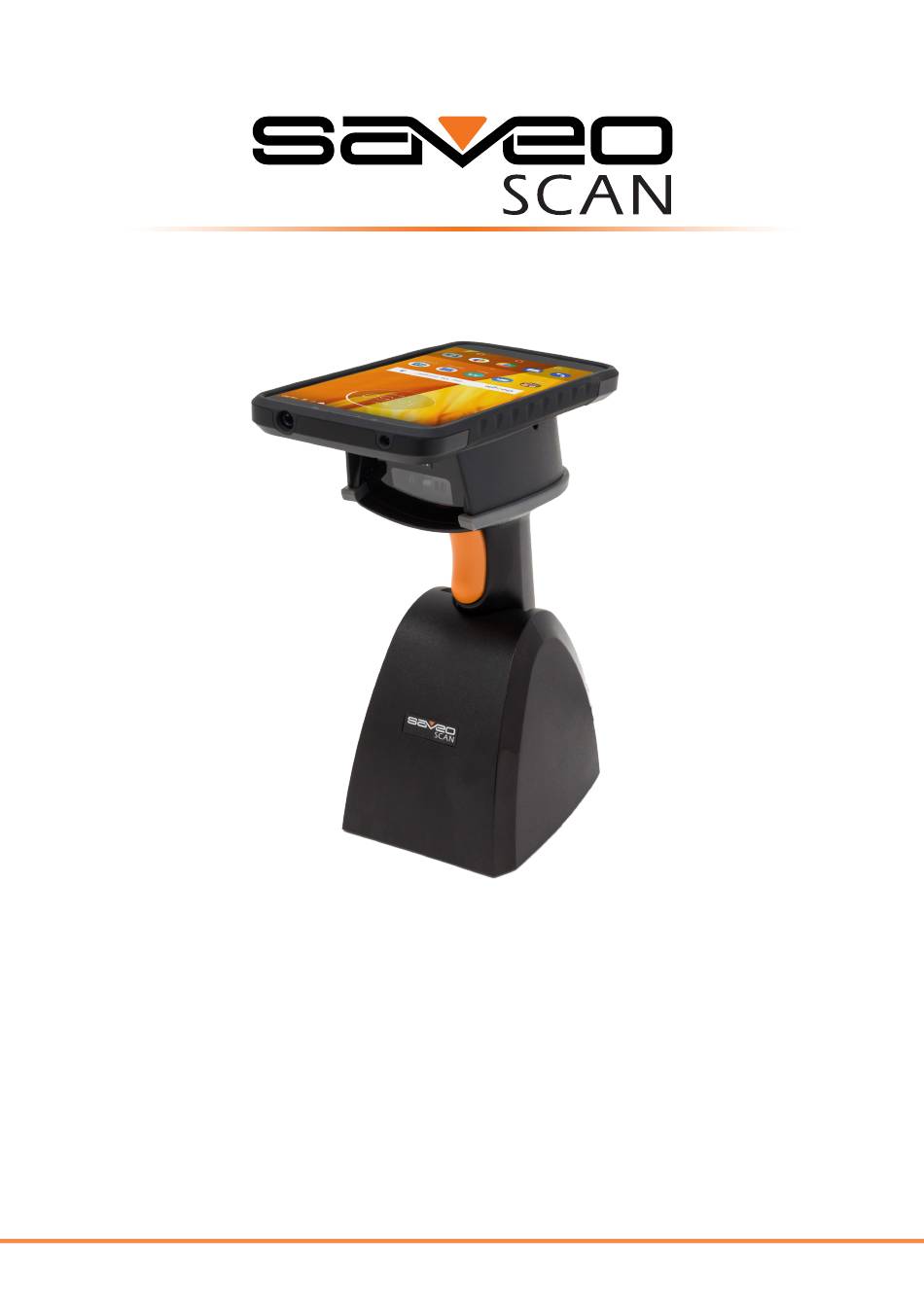

- Page 1 Scanning with Simplicity SAVEO-RV2-Z12D Bluetooth SPP set-up guide * shown with Motorola MOTO G 6th Generation US PH: +1 720 257 7070 info@saveoscan.com UK PH: +44 208 0998071 www.saveoscan.com...
-
Page 2: Table Of Contents
Contents Getting Started Introduction Product Inforrmation Operating Elements LED Indicator Attaching your phone to the scanner Connecting via Bluetooth SPP Unpairing your device User Preferences Operating Modes Reset to Defaults Battery Level Status Power Saving Mode Sound Settings Reading Mode Mobile Phone/Display Mode Transmission Speed Troubleshooting... -
Page 3: Getting Started
Getting started Introduction This document provide an easy way to program the decoding options and interface selections by scanning barcodes listed in this guide. Important Notice When printing barcodes for programming, the use of a high-resolution laser printer is strongly recommended for the best scan result. The settings will be updated periodically without prior notice. -
Page 4: Product Inforrmation
1 x Charging Cradle 1 x Micro USB cable Limited Warranty Saveo Scan provides a one year limited warranty. This warranty does not cover any product which has been subject to improper use, neglect or unauthorized repair or installation. This warranty does not cover consumable parts. (Cables & batteries are consumables.) -
Page 5: Operating Elements
If you want to charge smartphone and scanner simultaneously, please switch scanner to C (Charge Mode) before placing it in the cradle. Power on Saveo Scan On the underside of the scanner you will nd a small recessed button. Use a pen or paper clip to push the button until you hear a noti cation sound. - Page 6 Getting Started Operating Elements Universal Holder Exit Window Scan/Wake Button (For iOS devices ONLY. Press and Wrist Strap hold for four seconds to raise and lower the on-screen keyboard) Use Micro USB, Type-C, or Lightning cable (Optional) to connect to smartphone/tablet * shown with Optional Switch for O (Operation Mode) SBB005 Custom Rugged...
-
Page 7: Led Indicator
Getting Started LED Indicator Please refer to the table below for information regarding LED status indicator. LED Indicator Information Orange LED ON Full charged Orange LED (Flashing) Charging / Low battery Red LED ON O ine / Out of Range Green LED ON Good read Orange LED ON... -
Page 8: Attaching Your Phone To The Scanner
Getting Started Attaching your phone to the scanner Attaching your smartphone to scanner using the universal holder Extend the retractable arm before placing phone in holder and then pushing it rmly back against the phone. You can view a video deomonstration here: http://youtu.be/-x-n6RMleUY Extend retractable arm Press button and slide outwards to... - Page 9 Getting Started Attaching your phone to the scanner Attaching your phone to scanner using the smartphone ruggediser The ruggedised case can be attached directly to the top of the scanner. The case has two components, an inner silicone cover and an outer layer of hardened polycarbonate, o ering excellent protection while also allowing the phone to be removed with ease.
- Page 10 Getting Started Attaching your phone to the scanner Connect phone to scanner with Micro-USB cable As USB connection locations vary on di erent models of smartphone, the cable can be con gured for your speci c model. Please Note: The Micro-USB connection supports charging on all connected devices and data transfer on USB OTG capable devices only.
-
Page 11: Connecting Via Bluetooth Spp
Getting Started Connecting to Saveo Scan via Bluetooth SPP Switch scanner to Charge Mode/Bluetooth Mode Switch to right: Charge Mode/ Bluetooth Mode Scan the Wireless Bluetooth Communication barcodes below in order (B1 -> B2). Please Note: When Bluetooth is enabled, the LED will remain red until the scanner has been paired with a Bluetooth device. - Page 12 Getting Started Connecting to Saveo Scan via Bluetooth SPP Enable Bluetooth on your device Go to your phone’s homescreen and click on the menu button to nd “Settings”, then “Bluetooth” and switch bluetooth on. Scan SPP Bluetooth Pro le barcodes below in order (B3 -> B7) After you scan the SPP Bluetooth pro le barcodes, your scanner will become visible to Bluetooth enabled devices within range.
- Page 13 Getting Started Connecting to Saveo Scan via Bluetooth SPP & Table of Contents...
- Page 14 Getting Started Connecting to Saveo Scan via Bluetooth SPP Search for devices Your device will automatically search for available devices and Saveo Scan will appear as an external keyboard with a unique identi er number (R-xxxxxx). Select R-xxxxxx to connect Select scanner from “Available...
- Page 15 Getting Started Connecting to Saveo Scan via Bluetooth SPP Devices are now paired Once completed, scanner will be listed under “Paired devices”. Your scanner is now ready to use. Please open your app to con gure the scanner on your device.
-
Page 16: Unpairing Your Device
Getting Started Unpairing your device Go to the Bluetooth menu on your phone and select the option menu for the scanner from the list of paired devices. Choose “Forget”. Table of Contents... -
Page 17: User Preferences
User Preferences Operating Modes There are two operating modes on the scanner, Data Transmission Mode and Data Storage Mode. Scan the appropriate barcodes when switching between these two modes. Please note: Switching between modes will wipe the scanner’s internal memory. Data Transmission Mode (Default) Our Default setting is Data Transmission Mode. - Page 18 User Preferences Operating Modes There are two operating modes on the scanner, Data Transmission Mode and Data Storage Mode. Scan the appropriate barcodes when switching between these two modes. Please note: Switching between modes will wipe the scanner’s internal memory. Data Storage Mode In this mode, data will be saved directly to scanner’s memory.
- Page 19 User Preferences Operating Modes There are two operating modes on the scanner, Data Transmission Mode and Data Storage Mode. Scan the appropriate barcodes when switching between these two modes. Please note: Switching between modes will wipe the scanner’s internal memory. Transmit Memory Data Scan the following barcode to receive data stored in the scanner’s internal memory.
-
Page 20: Reset To Defaults
User Preferences Reset to Defaults - SPP Pro le To reset con guration to default scan the barcodes below in order (E1 -> E4) Demo W010F01 Demo WFFD980 Demo W100900 www.tec-it.com WFFD9C4 Demo Demo W010F00 %D%F%T Table of Contents... -
Page 21: Battery Level Status
User Preferences Battery Level Status Scan the barcode below to send battery level information to your device. The format is outlined in the table below. Current Battery Level Scan to send the current battery level to you device. Demo %^4^% 80% - 100% %^3^% 55% - 80%... -
Page 22: Power Saving Mode
User Preferences Power Saving Mode Power saving mode is enabled by default and will put the scanner to sleep after one minutes inactivity. To wake the scanner press the trigger. Below are the barcodes to change the power saving mode. Demo Disable Scan to disable power saving mode... -
Page 23: Sound Settings
User Preferences Sound Settings Scan the barcodes to select whether or not the decoder issues a ‘beep’ tone after a good decode. If selecting Disable, beeper signals are issued during parameter menu scanning and to indicate errors. Enable (default) Disable Table of Contents... -
Page 24: Reading Mode
User Preferences Reading Mode The default reading mode is Single Scan. To activate the scanner automatically scan Presentation Mode: Full Auto Mode below. Single Scan (Default) In this mode the scanner attempts to decode when the scan button is pressed. Demo Demo Presentation Mode: Full Auto Mode... -
Page 25: Mobile Phone/Display Mode
User Preferences Mobile Phone/Display Mode This mode improves barcode reading performance with target barcodes displayed on mobile phones and electronic displays. Disable (default) Enable Table of Contents... -
Page 26: Transmission Speed
User Preferences Transmission Speed Transmission speed is dependent on your device. In order not to lose data please Demo choose the correct speed. Mid Speed is the default. High Speed Transmission %B%T%H Demo Mid Speed Transmission (default) Demo Low Speed Transmission %B%T%L Table of Contents... -
Page 27: Troubleshooting
On the underside of the scanner you will nd a small recessed button. Use a pen or paper clip to push the button until you hear a noti cation sound. Ensure power switch remains depressed after you release it. This will power on the Saveo Scan. Please refer to Operating Elements in this manual. -
Page 28: General Information
General Information General Information FCC Approval This device had been tested in accordance with the procedures and in compliance with Part 15 Subpart B of FCC Rules. And keeps all requirments according ANSI C63.4 & FCC Part 15 B Regulation and CISPR22 Class B. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 29: Further Information
Further Information Contact us at: Email: info@saveoscan.com Phone: US: +1 720 257 7070 UK: +44 208 099 8071 IRE: +353 1 685 4600 or visit our website: www.saveoscan.com Table of Contents...
