Features; Installation; Specifications - Channel Vision Central C-0508 Manual

Model C-0508
Data termination module
C V
H A N N E L I S I O N
Central
Striped
Solid
Data router or switch
Computer

Installation:

h
Use RJ45 jumper cables to connect your data router or
switch to the C-0508.
h
Punch down as many as 8 Cat5 data lines on the 110
punch down connectors.
h

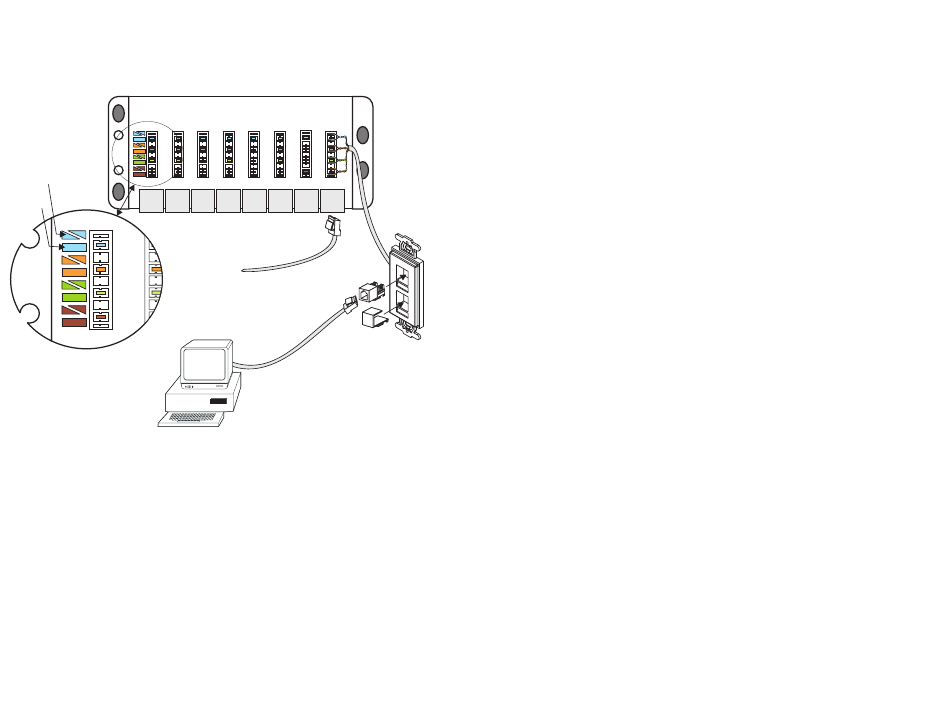

Connect the data wall plates in each room (see diagram).
h
Connect computer(s) to wall plate(s).
2
TM
C-0508
From

Features:

Compact Design
Simple connections
Provides 8 data terminations
G-Kit 7
(wall plate kit)

Specifications:

110 connectors:
RJ45 connectors:
Dimensions:
8
8
3.0"L x 6.38" W x 1.75" D
3
