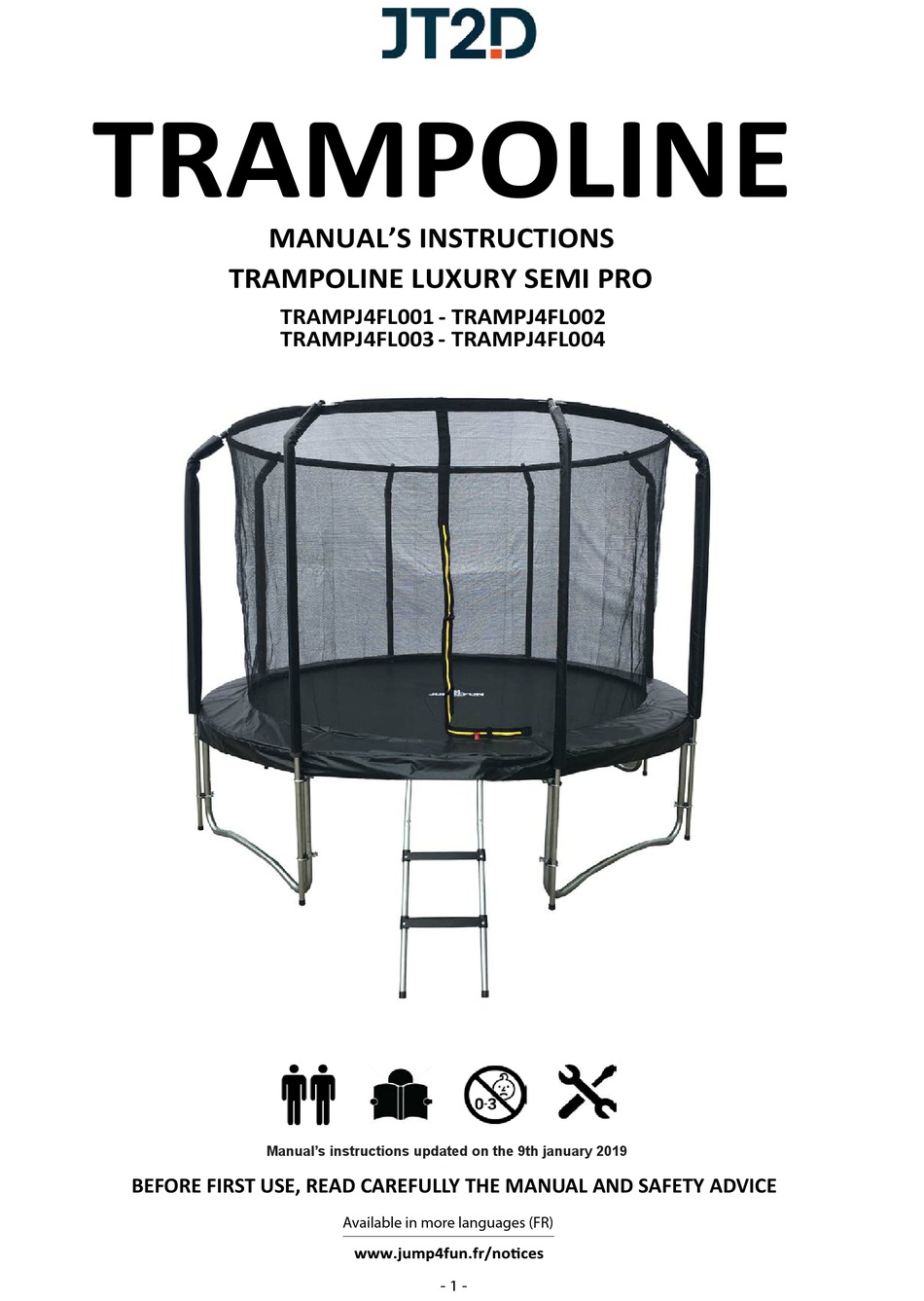

TRAMPOLINE
MANUAL'S INSTRUCTIONS
TRAMPOLINE LUXURY SEMI PRO
TRAMPJ4FL001
TRAMPJ4FL003
- TRAMPJ4FL004
Manual's instructions updated on the 9th january 2019
Manual's instructions updated on the 6th december 2018
BEFORE FIRST USE, READ CAREFULLY THE MANUAL AND SAFETY ADVICE
Available in more languages (FR)
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for JT2D Luxury Semi Pro TRAMPJ4FL001
Summary of Contents for JT2D Luxury Semi Pro TRAMPJ4FL001
- Page 1 TRAMPOLINE MANUAL’S INSTRUCTIONS TRAMPOLINE LUXURY SEMI PRO TRAMPJ4FL001 TRAMPJ4FL003 - TRAMPJ4FL004 Manual’s instructions updated on the 9th january 2019 Manual’s instructions updated on the 6th december 2018 BEFORE FIRST USE, READ CAREFULLY THE MANUAL AND SAFETY ADVICE Available in more languages (FR) - 1 -...
-
Page 2: Table Of Contents
SUMMARY Page 2 Introduction Page 5 General instructions Page 10 List of trampoline parts Page 11 Datasheets Page 15 Assembly of the frame Page 21 Safety net parts list Page 22 Assembly of the safety net Page 25 Security checks Page 26 Fundamental bouncing techniques Page 27... -
Page 3: Introduction
INTRODUCTION We thank you for purchasing this trampoline. This instruction Manual is valid for all our trampolines Luxury Semi Pro 8FT, 10FT, 12FT, 14FT. Before using the trampoline, read this manual to assess the precautions of use and assembly. To avoid injury, please read the appropriate safety tips and rules. W ARNINGS Using the trampoline at a high frequency can cause injury. - Page 4 Before you start using this trampoline, you should read all the information in this manual. As with any type of physical activity, the use of this trampoline requires special attention because participants can be injured. To reduce the risk of injury, please read the appropriate safety rules and advice carefully.
-
Page 5: General Instructions
GENERAL INSTRUCTIONS Placing the trampoline The minimum space around the trampoline must be 2m, this space must be clear of any object (walls, electrical wires, tree branches, fence, fence, garage etc.). Please note the following tips : Place the trampoline on a non-slip horizontal surface Clear the space around the trampoline No obstruction under the trampoline No obstruction above the trampoline... - Page 6 The metal structure of the trampoline can conduct electricity. Lightning, extension cords and all electrical equipment must never come into contact with the trampoline. When mounting or dismounting, please use gloves to protect your hands. For added stability, you can place sandbags on the trampoline feet. This will prevent the trampoline from tipping over in the event of lateral force.
- Page 7 commercial warranty. Do not use the trampoline under the influence of alcohol or drugs. Do not sit or lean on the cushion as it must be flexible to be able to move with the jumping mat. Be careful that small children do not get up using the cushions. Tears caused by bearing blockage are not covered by the commercial warranty.
- Page 8 Loss of control : When users lose control, they may not land properly on the mat, chassis or springs. Always keep the protective foams on top of them. Before performing more complicated jumps, you must first master the basic jumps. If the user is tired or tries to make a jump that exceeds his or her abilities, there is a risk of injury.
- Page 9 H : Outil de fixation des ressorts Warnings Be careful. The maximum authorized weight is between 75kg and 120kg; Maximum weight for each trampoline model Be careful. The maximum authorized weight is between 75kg and 120kg; Be careful. This trampoline is intended for domestic and family use only; Be careful.
-
Page 10: List Of Trampoline Parts
LIST OF PARTS OF TRAMPOLINE LUXURY LIST OF PARTS OF TRAMPOLINE LUXURY SEMI PRO Pieces Pictures Quantity 2,44m 3,05m 3,65m 4,26m 10FT 12FT 14FT A : Circular tubes Protective foam C : Jumping mat D : Springs E : Extensions tubes F : Bottom structure tubes G : Screws and rings... - Page 11 Protective foam Characteristics Trampoline 8FT - 244 cm Characteristics High height 94cm Total diameter 244cm Low height 78cm Diameter of jump mats 202cm Diameter 4,2cm Diameter jumping mat 190cm Details trampoline Characteristics Height 234cm 1,3mm Thickness arch 65cm Floor / carpet height Diameter arch 38mm Carpet height / height...
- Page 12 Trampoline 10FT - 305 cm Characteristics Protective foam Characteristics 305cm High height 94cm Total diameter Diameter of jump mats 260cm Low height 78cm Diameter jumping mat 251cm Diameter 4,2cm Height 245cm Details trampoline Characteristics Floor / carpet height 74cm Thickness arch 1,3mm Carpet height / height 171cm...
- Page 13 Trampoline 12FT - 366 cm Characteristics Characteristics Protective foam Total diameter 366cm High height 95cm Diameter of jump mats 311cm 78cm Low height Diameter jumping mat 303cm Diameter 4,4cm Height 246cm Details trampoline Characteristics Floor / carpet height 77cm Thickness arch 1,3mm Carpet height / height 169cm...
- Page 14 Trampoline 14FT - 427 cm Characteristics Protective foam Characteristics Total diameter 427cm High height 95cm Low height Diameter of jump mats 382cm 77cm Diameter jumping mat 372cm Diameter 4,4cm Height 245cm Details trampoline Characteristics Floor / carpet height 77cm Thickness arch 1,3mm Carpet height / height 168cm...
-
Page 15: Assembly Of The Frame
ASSEMBLY OF THE FRAME Please refer to the table in the parts’ list. Be careful, it takes at least 2 adults to mount the trampoline. Arrange the different pieces as shown below. Assemble all the circular tubes together to make a wide circle. It may be necessary to be two people to join the last two ends. - Page 16 In a second step, assemble the feet to the circular frame structure. Attach the foot supports to the top frame structure using the small screws and washers (G). The location of the holes on each side (2 middle holes) will be used to secure the safety net bars using the spring attachment tool (H).
- Page 17 Repeat the process for each spring (D). Use the T-shaped tool to make it easier for you (part H of the Instructions’ Manual). Be sure to follow the assembly steps in the order established as below depending on the size of your trampoline.
- Page 18 Attach the protective foam (B) with the elastic ties. Perform the verification. Your trampoline should now look like this. - 18 -...
- Page 19 IMPORTANT: this procedure must be followed, if this is not the case, the base structure may be bent and will not fall within the scope of the warranty. Please refer to the diagram below for the rest of the setup, depending on the trampoline you purchased. Trampoline 2,44m (8FT) - 48 prings Trampoline 3,05m (10FT) - 64 springs - 19 -...
- Page 20 Trampoline 3,66m (12FT) - 72 springs Trampoline 4,27m (14FT) - 80 springs - 20 -...
- Page 21 LISTE DES PIÈCES DU FILET DE SÉCURITÉ LIST OF SECURITY NET PARTS Pieces Quantity Pictures 2,44m 3,05m 3,65m 4,26m 10FT 12FT 14FT A : Bottom pole with foams B : Top pole with foams C : Phillips screws D : Plugs of poles E : Sleeves F : Safety net + string G : Fixing set...
-
Page 22: Assembly Of The Safety Net
ASSEMBLY OF THE SAFETY NET Please refer to the list of parts that make up the entire safety net for inventory. Be careful : 2 people in good physical condition may be necessary for the assembly of the the safety net. The following images may differ depending on the model and are non-contractual. Using the quick couplers (H), attach each bottom pole (A) to the trampoline legs as shown on the picture below. - Page 23 Note: Look carefully at the diagram to see clearly how to fix the cap on the top of the pole. Its opening must be on the same side as the outer elbow of the upper pole. Now insert the top poles (B) into the lower poles (A) already attached to the trampoline. Insert the pole socks (E) on the poles (A / B).
- Page 24 Clip the safety net rods onto each top pole plug (D). Then repeat this step until the net is fully secured. Secure the bottom of the net with the string provided with the safety net (G). Thread the string through the safety net, then into each loop of the jump mat. Once you have walked around the trampoline, tighten slightly so that the entire net is tight.
- Page 25 After assembling the trampoline, it is important that you perform the following safety checks. Trampoline’s base structure safety checks : Using a screwdriver, check that all the screws are tightly secured. Look under the trampoline and check that all the springs are hooked securely to the frame and triangle rings.
- Page 26 All trampoline users are recommended to understand and perfect these fundamental bounces. THE BASIC BOUNCE Start from a standing position, feet shoulder width apart with head and eyes on the mat. Swing your arms forwards and up and around in a circular motion. Bring feet together while in mid-air and point toes downwards.
- Page 27 Commercial warranty : Our Jump4Fun trampolines and all their parts have a commercial warranty of 2 years when purchased directly on the following websites www.jump4fun.fr or www.jt2d.com, from the date of delivery, under normal conditions of use. The warranty is limited to the exchange of the product or to the delivery of the spare parts, subject to the presentation of the purchase invoice by the buyer.
-
Page 28: After Sales Service
Do not hesitate to contact us, from Monday to Friday, from 9am to 5pm : Phone : +33 (0)7.57.90.09.01 E-mail : sav@jt2d.com Address : JT2D SAS 22 rue de l’Industrie...
