JT2D TRAJ4F101702 Manual Instructions

Rectangle trampoline - 10ft x 17ft - 305cm x 518cm
Hide thumbs

Advertisement

Quick Links

Download this manual
TRAMPOLINE
MANUAL'S INSTRUCTIONS
RECTANGLE TRAMPOLINE - 10FT x 17FT - 305cm x 518cm
TRAJ4F101702
Manual's instructions updated on the 9th january 2019
Manual's instructions updated on the 30th August 2018
BEFORE FIRST USE, READ CAREFULLY THE MANUAL AND SAFETY ADVICE
Available in more languages (FR)
www.jump4fun.fr/notices
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRAJ4F101702 and is the answer not in the manual?

Questions and answers

Related Manuals for JT2D TRAJ4F101702

Summary of Contents for JT2D TRAJ4F101702

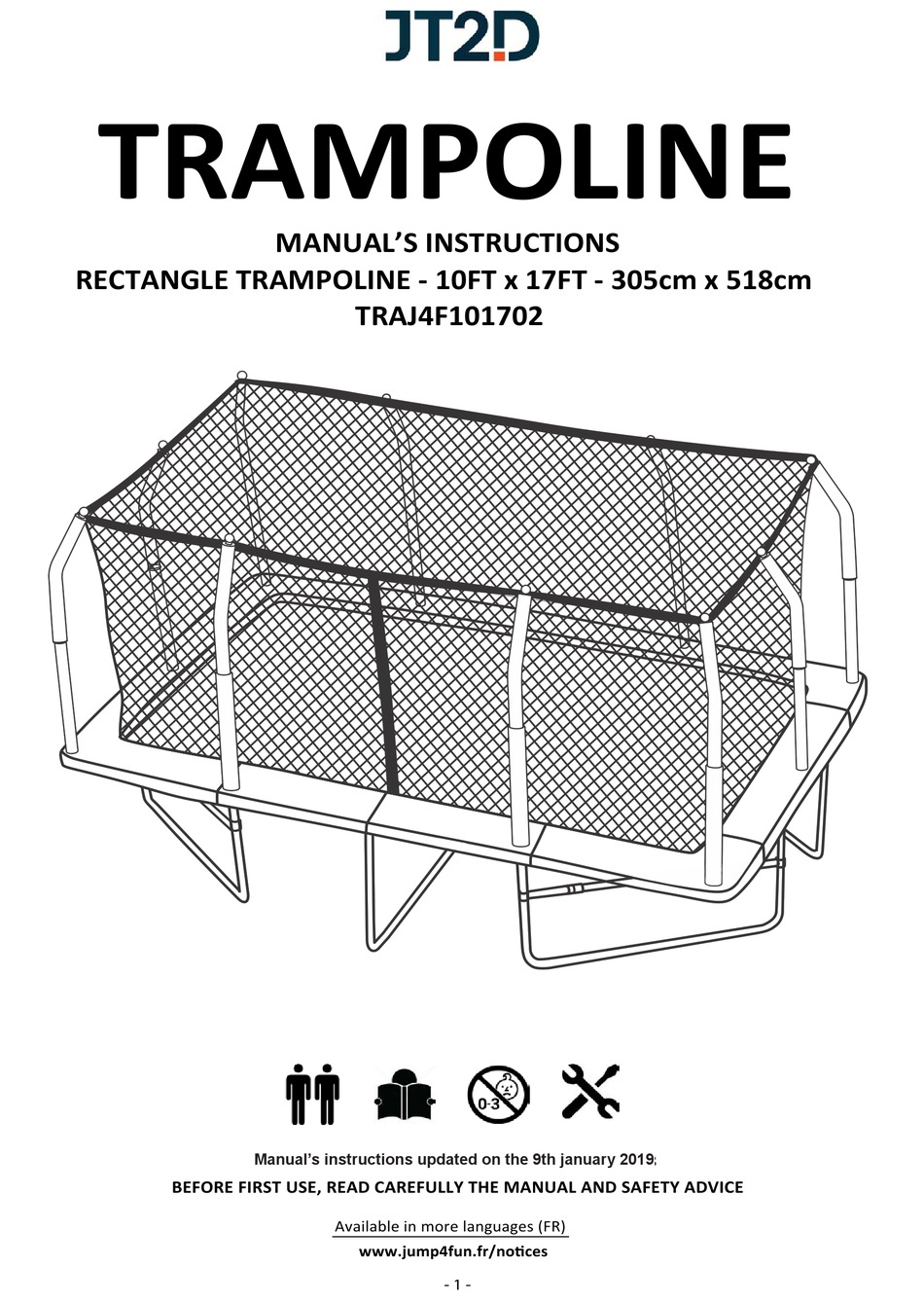

  • Page 1 TRAMPOLINE MANUAL’S INSTRUCTIONS RECTANGLE TRAMPOLINE - 10FT x 17FT - 305cm x 518cm TRAJ4F101702 Manual’s instructions updated on the 9th january 2019 Manual’s instructions updated on the 30th August 2018 BEFORE FIRST USE, READ CAREFULLY THE MANUAL AND SAFETY ADVICE Available in more languages (FR) www.jump4fun.fr/notices...

  • Page 2: Table Of Contents

    SUMMARY Page 3 Introduction Page 5 General instructions Page 10 Trampoline’s parts list Page 11 Assembly instructions Page 15 Safety net assembly Page 19 Testing the trampoline Page 20 Bounces techniques Page 21 Guarantees Page 22 After sales service - 2 -...

  • Page 3: Introduction

    INTRODUCTION We thank you for purchasing this trampoline. This instruction manual is valid for all our rectangulars trampolines. Before using the trampoline, read this manual to assess the precautions of use and assembly. To avoid injury, please read the appropriate safety tips and rules. W ARNINGS Using the trampoline at a high frequency can cause injury.
  • Page 4 Before you start using this trampoline, you should read all the information in this manual. As with any type of physical activity, the use of this trampoline requires special attention because participants can be injured. To reduce the risk of injury, please read the appropriate safety rules and advice carefully.

  • Page 5: General Instructions

    GENERAL INSTRUCTIONS Placing the trampoline The minimum space around the trampoline must be 2m, this space must be clear of any object (walls, electrical wires, tree branches, fence, fence, garage etc.). Please note the following tips : Place the trampoline on a non-slip horizontal surface Clear the space around the trampoline No obstruction under the trampoline No obstruction above the trampoline...
  • Page 6 The metal structure of the trampoline can conduct electricity. Lightning, extension cords and all electrical equipment must never come into contact with the trampoline. When mounting or dismounting, please use gloves to protect your hands. For added stability, you can place sandbags on the trampoline feet. This will prevent the trampoline from tipping over in the event of lateral force.
  • Page 7 commercial warranty. Do not use the trampoline under the influence of alcohol or drugs. Do not sit or lean on the cushion as it must be flexible to be able to move with the jumping mat. Be careful that small children do not get up using the cushions. Tears caused by bearing blockage are not covered by the commercial warranty.
  • Page 8 Loss of control : When users lose control, they may not land properly on the mat, chassis or springs. Always keep the protective foams on top of them. Before performing more complicated jumps, you must first master the basic jumps. If the user is tired or tries to make a jump that exceeds his or her abilities, there is a risk of injury.
  • Page 9 Warnings Be careful. The maximum authorized weight is 500 lbs/225kg. Be careful. This trampoline is intended for domestic and family use only; Be careful. Adult supervision is required; Be careful. This trampoline is intended for outdoor use only; Be careful. The trampoline must be mounted by an adult in accordance with the assembly instructions,and checked before first use;...
  • Page 10 Pieces Pictures Quantity A : Top tubes 108,5cm 115,3cm B : Top tubes 114,5cm 178cm C : Corner tubes 178cm D : Leg extensions 61cm E : Leg bases 166cm F : Corner supports 81cm G : Middle support 153cm H : Short leg supports 35,2cm I : Long leg supports...
  • Page 11 Frame assembly installation for model UBRTG01-101 Frame assembly installation for model UBRTG01-1017 Frame assembly installation for model UBRTG01-1017 STEP 1 - Frame Layout Frame assembly installation for model UBRTG01-1017 Lay out the trampoline parts on the ground so that you start to form a rectangle with the top Frame assembly installation for model UBRTG01-1017 tubes sections.
  • Page 12 5. Assemble frame parts with the 4 legs. 5. Assemble frame parts B1 and B2 with the 4 legs. Lay out the parts as shown in the figure. Connect Lay out the parts as shown in the figure. Connect the B1 and B2 and place onto the leg bases as shown and place onto the leg bases as shown in the figure below.
  • Page 13 STEP 3 - Trampoline mat assembly WARNING : Be careful where you place your hands during spring assembly as you can pinch yourself ! 1. Layout the Trampoline Mat inside the frame. 1. Layout the Trampoline Mat inside the frame. 1.
  • Page 14 STEP 4 - Cover pads assembly The trampoline is at a stage close to completion with all the springs in place. Before using the trampoline, please attach the provided safety pads. Step 1 : Lay out 2 sides of the pad shown here and connect with the attached velcro strips.

  • Page 15: Safety Net Assembly

    BIG ROPE UBRPR-1017 POLE CAP Safety net assembly SCREW Refer to parts list for identification of parts. Warning : Two adults in good physical condition are required for the following assembly. For your safety, you should wear proper shoes and clothing. Failure to follow these instructions and war- nings may result in injury.
  • Page 16 5. Attach the assembled poles to the trampoline structure using the curved-headed pole screws (10 AA screws) 6. Connect net rods together, using 5 pcs to Connect the fiber glass pieces together, using 5 pcs of fiber glass to make the long line, and make the long line, and 3 pcs to make the 3 pcs to make the short.
  • Page 17 9. Connect the net rods to the top of the poles by clicking them into the pole caps. Repeat this step 9. Connect the fiber glass to the top of the poles by clicking it into the pole caps. Do this for all 10 poles.
  • Page 18 Attach the bottom of the net to the mat 1. Connect the net to the V-rings of the trampoline 1. Connect the net to the V-rings of the trampoline mat using the attached clips, securing at regular mat using the attached clips, securing at regular 1.
  • Page 19 After assembling the trampoline, it is important that you perform the following safety checks. Trampoline’s base structure safety checks : Using a screw driver, check that all the screws are tightly secured. Look under the trampoline and check that all the springs are hooked securely to the frame and triangle rings.
  • Page 20 FUNDAMENTAL BOUNCES TECHNIQUES All trampoline users are recommended to understand and perfect these funda- mental bounces. THE BASIC BOUNCE Start from a standing position, feet shoulder width apart with head and eyes on the mat. Swing your arms forwards and up and around in a circular motion. Bring feet together while in mid-air and point toes downward.

  • Page 21: Guarantees

    Commercial warranty : Our Jump4Fun trampolines and all their parts have a commercial warranty of 5 years when purchased directly on the following websites www.jump4fun.fr or www.jt2d.com, from the date of delivery, under normal conditions of use. The warranty is limited to the exchange of the product or to the delivery of the spare parts, subject to the presentation of the purchase invoice by the buyer.

  • Page 22: After Sales Service

    Do not hesitate to contact us, from Monday to Friday, from 9am to 5pm : Phone : +33 (0)7.57.90.09.01 E-mail : sav@jt2d.com Address : JT2D SAS 22 rue de l’Industrie...
