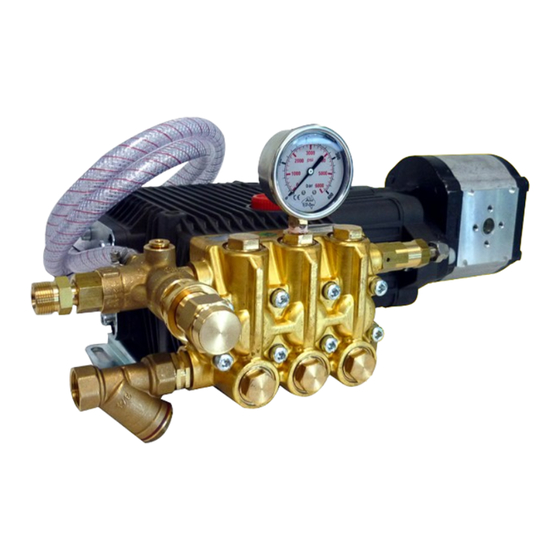

Aussie Eco-Clean
Hydraulic Drive
High Pressure Blaster
OPERATOR'S INSTRUCTION MANUAL
Models: WHY1520 HYD, THY2715 HYD,
TTL 1330 HYD, TTL 2028 HYD
TTK 2130 HYD, RAL 2035 HYD
Hydraulic specialist to install
Note: Max pump rpm 1450
Operators must read this manual and
understand it before operating this machine
Hydraulic drive blasters
to 500 BAR (7,200 psi) coming soon
Sept 2018
Australian Pump Industries
www.aussiepumps.com.au
REF: APHYDHPBVER3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aussie Pumps Eco-Clean WHY1520 HYD
Summary of Contents for Aussie Pumps Eco-Clean WHY1520 HYD
- Page 1 Aussie Eco-Clean Hydraulic Drive High Pressure Blaster Sept 2018 OPERATOR’S INSTRUCTION MANUAL Models: WHY1520 HYD, THY2715 HYD, TTL 1330 HYD, TTL 2028 HYD TTK 2130 HYD, RAL 2035 HYD Hydraulic specialist to install Note: Max pump rpm 1450 Australian Pump Industries www.aussiepumps.com.au Operators must read this manual and understand it before operating this machine...
- Page 2 Sept 2018 AUSSIE HIGH PRESSURE BLASTER RISK ASSESSMENT MODELS: DESCRIPTION: In line with the National Occupation Health & Safety Hydraulic drive high pressure cold water blasters Commission’s requirements the data below applies to designed for professional cleaning applications. the Aussie range of high pressure water blaster models: MATERIAL CONSTRUCTION: WHY1520/HYD...
- Page 3 Sept 2018 Risks associated with operating a high pressure cleaner … for use in daily SAFE WORK METHOD STATEMENT Risk Hazard Risk Controls Rating Entanglement with hose Personal injury of the Warning stickers (tripping, falling) operator or bystanders hose reel option ...
-
Page 4: Table Of Contents
Sept 2018 CONTENTS Risk Assessment ..........................2 System Specifications ........................4 Guarantee ............................5 Standard Equipment ........................5 Installation of Hydraulic Motor ..................... 5 Initial Set Up of Hydraulic Blaster ....................6 Safety Precautions ......................... 7 Assembly & Preparation for Use ....................8 High Pressure Hose ....................... -
Page 5: Guarantee
Sept 2018 The benefits under the Aussie Pump warranty are in GUARANTEE addition to other rights under Australian Consumer This Aussie Eco Clean product is guaranteed against Law. faults in manufacture for one year from purchase. The Hydraulic drive warranty is the responsibility of the Bertolini pump has a four year warranty, but must be hydraulic drive unit manufacturer. -
Page 6: Initial Set Up Of Hydraulic Blaster
Sept 2018 INITIAL SET UP OF HYDRAULIC BLASTER (TO BE COMPLETED ONCE HYDRAULIC MOTOR IS OPERATIONAL) The Aussie Eco-clean blaster is powered by either a Salami or Casappa hydraulic motor. NOTE: The hydraulic system must be designed to include devices to limit the flow and pressure of the system within the limits of the motor. -
Page 7: Safety Precautions
Sept 2018 SAFETY PRECAUTIONS - IMPORTANT 1. NEVER direct the spray jet at any surface that 10. NEVER pull the hose over sharp objects. may contain asbestos material. 11. DO NOT join hoses together to extend the 2. NEVER direct the spray jet at any person or length (buy an extra long hose) animal. -
Page 8: Assembly & Preparation For Use
Sept 2018 ASSEMBLY & PREPARATION FOR USE If pressure drops off, check nozzle for WARNING: Before operation ensure top wear. Nozzles should be replaced on mounted oil filler plug is replaced by breather. a regular basis (every month for Failure to fit breather and keep clean can result machines in regular use, every 3 in over pressuring of oil chamber (crank case) months... -
Page 9: Water Supply Hose
Sept 2018 WATER SUPPLY HOSE: SHUT DOWN Use a good quality supply hose (not supplied) of 19mm Turn off water supply if applicable. diameter minimum on TTL & TTK versions, 25mm on Disengage hydraulic to power to blaster. RAL version. -
Page 10: Care & Maintenance
Sept 2018 LONG LENGTH HOSES HOSE REELS, ASP SYSTEM..COUPLINGS - A wide range of optional long AUSSIE SAFETY PROTECTOR SYSTEM length hose assemblies, rapid reel hose reels AUSSIE SAFETY VALVE (B): This device “blows off” and quick couplers and fittings are available to excess pressure if unloader has been tampered with enhance your machine=s performance. -
Page 11: Trouble Shooting Guide
Sept 2018 TROUBLE SHOOTING GUIDE FAULT CAUSE REMEDY Pump running normally but Pump sucking air Check water supply and possibility of air ingress. pressure low on installation Check and clean or replace if necessary Valves sticking Check and replace Unloader valve seat faulty Check and replace Nozzle incorrectly sized Check and replace... -
Page 12: Parts Identification
Sept 2018 PARTS IDENTIFICATION Position Part No Description WHY 1520 THY 2715 TTL 1330 TTL 2028 TTK 2130 RAL 2035 Nozzles C915500MSS HP DETERGENT NOZZLE C915035M HP NOZZLE (15°ANGLE, TIP SIZE 035) C915045M HP NOZZLE (15° ANGLE, TIP SIZE 045) C915055M HP NOZZLE (15°... - Page 13 Sept 2018 PUMP PARTS WHY 1520 Kit No. Part No. Description Pieces Full Oil seal & Sight Glass BKIT82 BKIT141 Valve Kit BKIT12 Seal Kit Minor BKIT70 Seal Kit Major BKIT64 Oil Seal Kit BKIT166 Valve cap kit Item 29 B049832973 Oil filler plug with dip stick PUMP PARTS THY 2715 Kit No.
- Page 14 Sept 2018 PUMP PARTS TTL1330, TTL2028 Kit No. Part No. Description Pieces BKIT127 Full Oil seal & Sight Glass kit BKIT123 Valve Kit BKIT309 Seal Kit Minor BKIT310 Seal Kit Major BKIT37 Oil Seal Kit BKIT67 Valve cap kit Item 48 B060020322 OIL FILLER PLUG WITH DIP STICK For full pump parts list refer to www.aussiepumps.com.au...
- Page 15 Sept 2018 PUMP PARTS TTK 2130 Kit No. Part No. Description Pieces BKIT98 Full Oil seal kit BKIT123 Valve Kit BKIT89 Seal Kit Minor BKIT86 Seal Kit Major BKIT37 Oil Seal Kit BKIT67 Valve cap kit Item OIL FILLER PLUG B060020322 WITH DIP STICK For full pump parts list refer to...
- Page 16 WARNINGS OVERSPEEDING PRESSURE CLEANER DAILY CHECK LIST Do not operate machine at over the maximum Check pump oil level rpm. Over speeding can cause serious pump Check nozzle for wear damage. Check all HP components for leaks: Gun/lance, HP ...
