Installation Instructions For AC L.E.D. Exit Signs, CX Series

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS
BE OBSERVED INCLUDING THE FOLLOWING:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
2. Do not use outdoors.
3. Do not mount near gas or electric heaters.
4. Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by
unauthorized personnel.
5. The use of accessory equipment not recommended by Sure-Lites may cause an unsafe condition.
6. Do not use this equipment for other than its intended purpose.
SAVE THESE INSTRUCTIONS
7.
BEFORE INSTALLING, DETERMINE ARROW POSITION REQUIREMENTS:
Step 1. Open the exit door and remove the colored exit lens by prying up the four retaining clips.
Step 2. Before knocking out desired arrows, place the exit door frame down on wood blocks 1/2" from arrows, taking care to protect the door face finish.
Step 3. Re-install the colored exit lens with the gloss side facing towards the LED's.
Step 4. Tap the four retaining clips back into place.
FOR DOUBLE FACE UNITS:
Step 1. On housing, knock out desired arrows per Step 2 above.
Step 2. Install the extra colored exit lens with the gloss side facing towards the LED's.
Step 3. Secure using four retaining clips supplied.
NOTE: Servicing of any parts should be performed by qualified service personnel. ONLY use replacement parts supplied by Sure-Lites.
For replacement transformer, or LED display PC board, see the fixture label.
TROUBLE SHOOTING HINTS:
1. Check AC supply - be sure unit has 24 hour AC supply.
2. Unit is shorted.
If following the above trouble shooting hints
does not solve your problem, contact your local
Sure-Lites Representative or the factory for assistance.
ORANGE LEAD
BLACK LEAD - TO 120V
WHITE LEAD
- TO NEUTRAL
SUPPLY PC
Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX 770.486.4801
LED DISPLAY DOES NOT COME ON :
ORANGE LEAD - TO 277V
BLACK LEAD - TO 120V
WHITE LEAD - TO NEUTRAL
- TO 277V
2C POWER
BOARD
MAKE CONNECTIONS
IN JUNCTION BOX OR
CANOPY

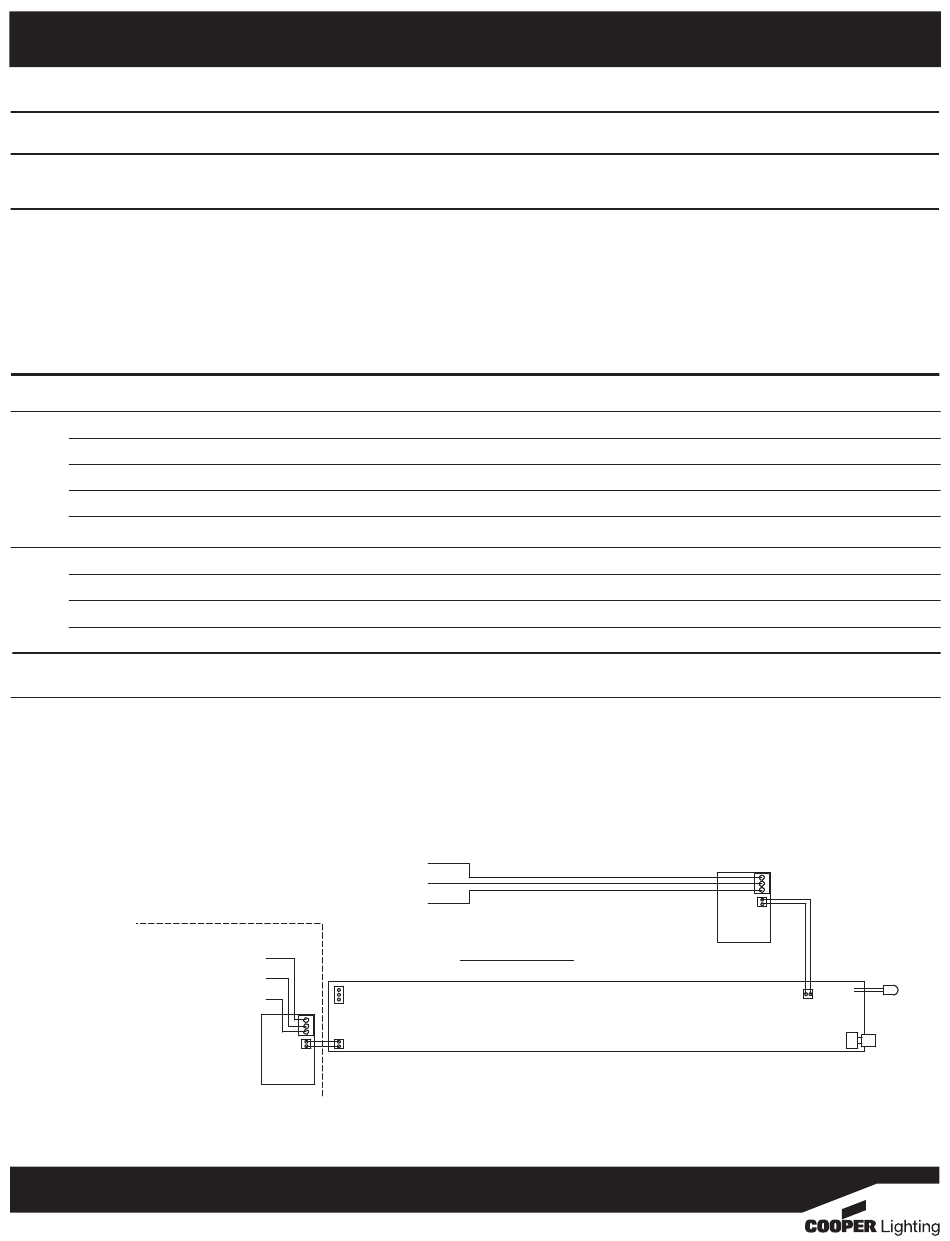

SCHEMATIC
