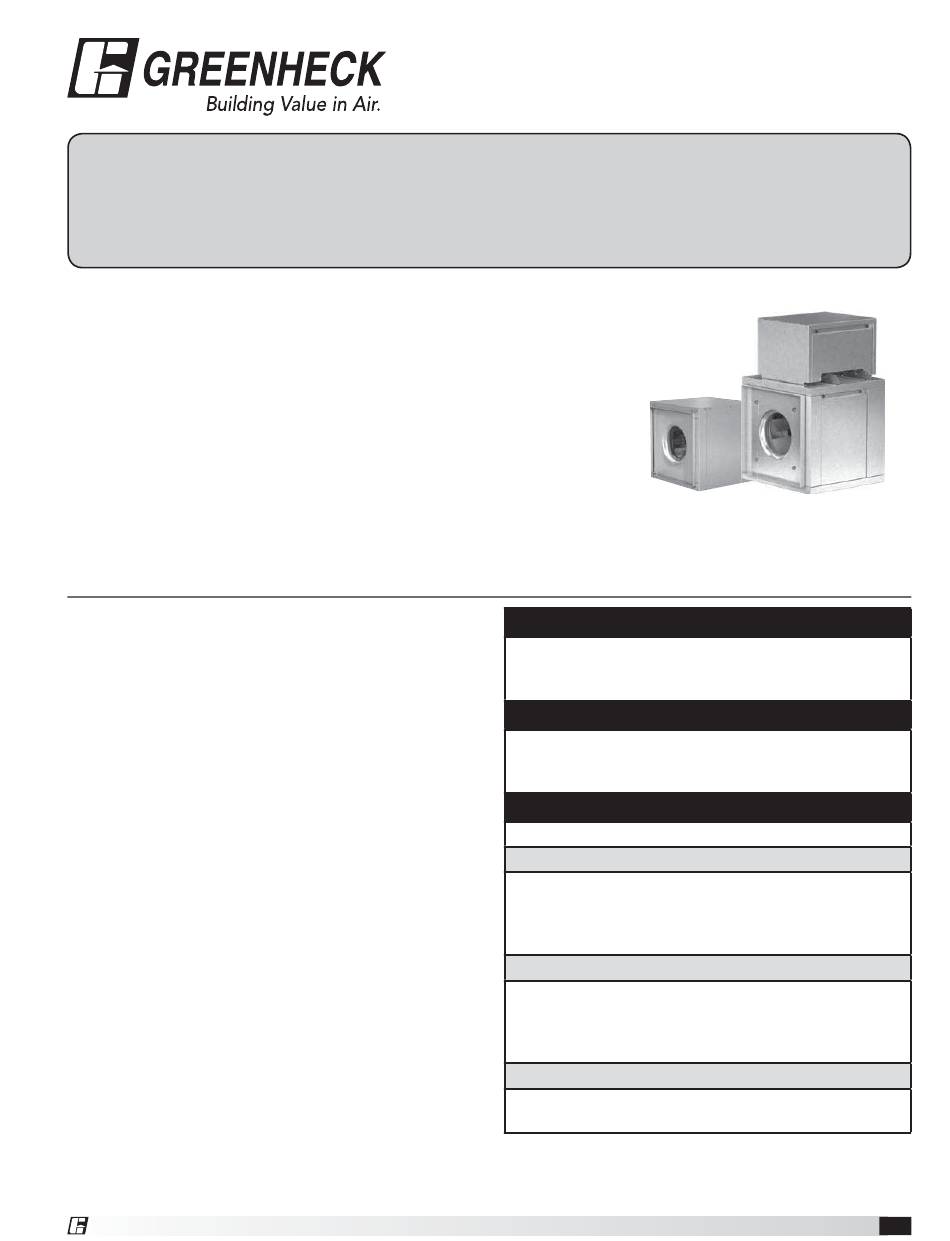

Installation, Operation and Maintenance Manual
Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.
Square Centrifugal Inline Fans
Fans include both direct- and belt-driven options with backward-inclined
wheels and feature rugged construction, high-efficiency and low sound
levels. These compact inline fans are the ideal selection for indoor clean
air applications including intake, exhaust, return, or make-up air systems.
The square housing design, compact size, and straight-thru airflow also
provide the system designer the flexibility to mount in horizontal and
vertical orientations. Each fan displays a permanently stamped metal
nameplate with complete model number, mark, and unique serial number
for future identification.
General Safety Information
Only qualified personnel should install this fan.
Personnel should have a clear understanding of these
instructions and should be aware of general safety
precautions. Improper installation can result in electric
shock, possible injury due to coming in contact with
moving parts, as well as other potential hazards. Other
considerations may be required if seismic activity
is present. If more information is needed, contact a
licensed professional engineer before moving forward.
1. Follow all local electrical and safety codes, as well as
the National Electrical Code (NEC) and the National
Fire Protection Agency (NFPA), where applicable.
Follow the Canadian Electric Code (CEC) in Canada.
2. The rotation of the wheel is critical. It must be free
to rotate without striking or rubbing any stationary
objects.
3. Motor must be securely and adequately grounded.
4. Do not spin fan wheel faster than max cataloged fan
RPM. Adjustments to fan speed significantly affects
motor load. If the fan RPM is changed, the motor
current should be checked to make sure it is not
exceeding the motor nameplate amps.
5. Do not allow the power cable to kink or come in
contact with oil, grease, hot surfaces or chemicals.
Replace cord immediately if damaged.
6. Verify that the power source is compatible with the
equipment.
7. Never open access doors to a duct while the fan is
running.
®
DANGER
Always disconnect, lock and tag power source before
installing or servicing. Failure to disconnect power
source can result in fire, shock or serious injury.
CAUTION
When servicing the fan, motor may be hot enough
to cause pain or injury. Allow motor to cool before
servicing.
CAUTION
Precaution should be taken in explosive atmospheres.
DANGER
Pour écarter les risques d'incendie, de choc électrique
ou de blessure grave, veiller à toujours débrancher,
verrouiller et étiqueter la source de courant avant
l'installation ou l'entretien.
ATTENTION
Lors de toute intervention sur la soufflante, le moteur
peut être suffisamment chaud pour provoquer une
douleur voire une blessure. Laisser le moteur refroidir
avant toute maintenance.
ATTENTION
Faire preuve de précaution dans les atmosphères
explosives.
Document 472058
Model SQ Direct Drive
Model BSQ Belt Drive
Centrifugal Inline Fans
Centrifugal Inline Fans
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BSQ and is the answer not in the manual?

Questions and answers

Summary of Contents for Greenheck BSQ

  • Page 1 Document 472058 Model SQ Direct Drive Model BSQ Belt Drive ® Centrifugal Inline Fans Installation, Operation and Maintenance Manual Please read and save these instructions for future reference. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with these instructions will result in voiding of the product warranty and may result in personal injury and/or property damage.
  • Page 2: Table Of Contents

    Table of Contents Storage Fans are protected against damage during shipment. If Receiving, Unpacking, Handling, Storage ..2 the unit cannot be installed and operated immediately, Inspection and Maintenance During Storage ..2 precautions need to be taken to prevent deterioration of Removing from Storage .
  • Page 3: Dimensional Data

    Dimensional Data Direct Drive Fan Dimensions Size Damper Weight^ ⁄ 60, 70 1 in. (25mm) (305) (330) (305) (225) (229) (12) ⁄ 80, 90, 95 (381) (406) (381) (302) (305) (19) ⁄ 97, 98, 99 (381) (533) (381) (302) (305) ⁄...
  • Page 4: Belt Drive - Fan And Optional Filter

    Belt Drive Fan Dimensions Size Damper Weight^ ⁄ ⁄ ⁄ ⁄ ⁄ 70, 80, 90 (435) (533) (435) (302) (451) (330) (337) (305) (48) ⁄ ⁄ ⁄ ⁄ ⁄ (435) (533) (435) (352) (451) (330) (337) (356) (49) 1-1/2 in. ⁄...
  • Page 5: Mounting - Horizontal Or Base Mount

    Mounting NOTE Hanging rails by others Flex duct is recommended for mounting to the inlet of the fan to allow for fitting adjustments. If the inlet venturi requires adjustment, it can be detached from the unit via the fasteners located on the inlet panel. All fan models can be mounted horizontally, vertically or at an angle.
  • Page 6: Mounting - Duct Or Side Discharge

    Duct Length Hanging Spring Isolator The inlet and outlet duct length should be approximately Mounting Style A Mounting Style B two to three wheel diameters long before and after the fan to achieve cataloged performance. Left Side Inline Discharge Discharge Hanging Neoprene Isolator Mounting Style A Mounting Style B...
  • Page 7: Pre Start-Up Checks

    Pre Start-Up Checks 3. Vibration Isolators: After fan is moved to desired location, punch out the four knockout holes which 1. Check all fasteners for tightness. The wheel are located on the unit top and bottom panels. should rotate freely and be aligned as shown in Assemble the brackets to the unit according to Figure 9.
  • Page 8: Operation

    6. The adjustable motor pulley is factory set for the Operation RPM specified. Speed can be increased by closing 1. Before starting up or operating fan, check all or decreased by opening the adjustable motor fasteners for tightness. In particular, check the sheave.
  • Page 9: Maintenance

    Maintenance Installation and maintenance are to be performed only Tapered Bushing Hub Installation by qualified personnel who are familiar with local codes and Removal and regulations and who are experienced with this type For wheel hubs and shaft pulleys utilizing a tapered of equipment.
  • Page 10: Recommended Bearing Lubrication

    3. Standard Mounting: Take the two socket head cap 5. Shaft bearings can be classified in two groups: screws that were removed and install them into the relubricating and non-relubricating. All bearings visibly threaded holes on the wheel hub. on standard belt drive fans are factory lubricated Reverse Mounting: Install the two socket head cap and require no further lubrication under normal use screws into the visibly threaded holes of the bushing...
  • Page 11 Isolator Parts List STANDING SUPPORT ISOLATOR HANGING SUPPORT ISOLATOR Unit side panel NOTE: Top bracket is reversible for mounting unit 90º from indicated. Unit side panel Base fastener by installer Direct or Belt Drive Direct or Belt Drive Direct or Belt Drive Direct or Belt Drive No.
  • Page 12: Parts Lists

    As a result of our commitment to continuous improvement, Greenheck reserves the right to change specifications without notice. Product warranties can be found online at Greenheck.com, either on the specific product page or in the literature section of the website at Greenheck.com/Resources/Library/Literature.
