MGL Avionics V16 User Manual

Aviation band transceiver
Hide thumbs Also See for V16:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installer and User Manual
MGL Avionics

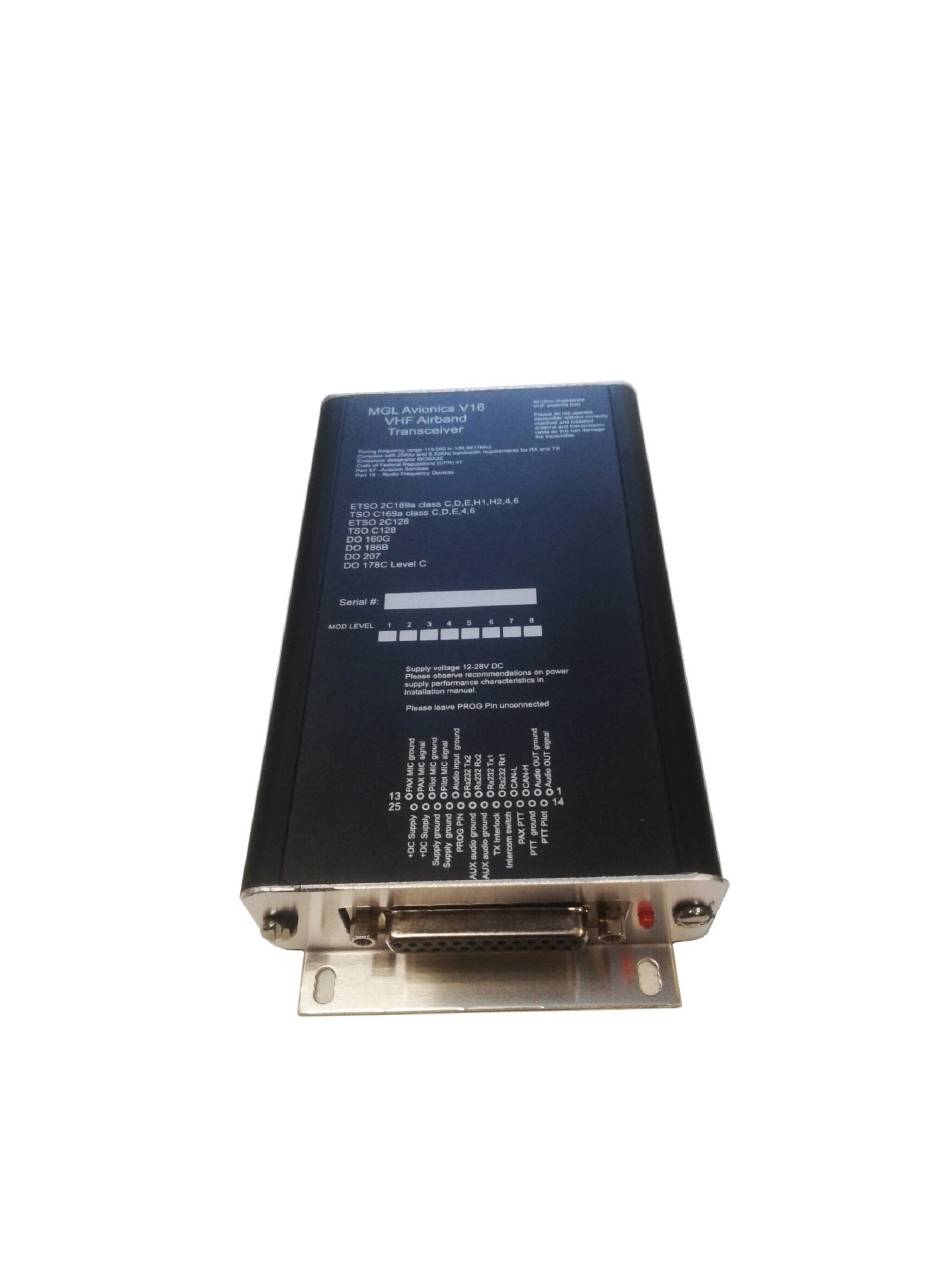

V16 Aviation band transceiver
ICD V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V16 and is the answer not in the manual?

Questions and answers

Related Manuals for MGL Avionics V16

Summary of Contents for MGL Avionics V16

  • Page 1 MGL Avionics V16 Aviation band transceiver ICD V1...

  • Page 2: Table Of Contents

    Table of Contents MGL Avionics V16 transceiver communications protocols............3 Version............................3 The legal stuff..........................3 General............................3 Frequencies..........................4 RS232 protocol........................5 General message format:....................5 Commands:........................5 Format of Acknowledge message (sent by transceiver)............8 Format of status message (sent by transceiver every 100mS unless setup menu is active)..........................8...

  • Page 3: Mgl Avionics V16 Transceiver Communications Protocols

    These conditions are not negotiable and will not be waived. Should the entity not accept these conditions MGL Avionics does not grant the right to use any of this information in any way. Usage of this information constitutes acceptance of a legally binding contract in the spirit of information placed in the public domain for the common good.

  • Page 4: Frequencies

    Command messages containing frequency request that are not within the permitted airband or illegal channel frequencies are ignored and not acknowledged. The V16 provides two RS232 ports and one CAN bus. Only RS232 port 1 supports this protocol. RS232 port 2 is reserved for special functions.

  • Page 5: Rs232 Protocol

    This form of checksum is also known as longitudinal checksum or 8 bit parity. Note: This protocol is based on the protocol used by the MGL Avionics V6 and V10 transceivers. Note that the commands and status messages are not all identical.
  • Page 6 Note: Frequency must be a valid frequency. Invalid frequencies will be ignored and no acknowledge will be sent for the message. Sends acknowledge when message received OK Increase RX and Intercom volume (3dB), If they are different they will be set to the same value as the intercom volume.
  • Page 7 6: Technical setup de-activate (power on state) 7: Technical setup activate If the V16 is placed in setup menu mode it will automatically cancel this mode if no activity within 60 seconds related to the Menu. If the menu is active the Setup menu message will be sent every 200mS interspaced with the normal status message.

  • Page 8: Format Of Acknowledge Message (Sent By Transceiver)

    the procedures required. No acknowledge is sent in response to these commands Increase Intercom volume (3dB). Don't care data value (recommend to set to zero) Sends acknowledge when message received OK Decrease intercom volume (3dB). Don't care data value (recommend to set to zero) Sends acknowledge when message received OK Set Intercom volume Volume value 0-31 (lowest to highest)

  • Page 9: Format Of The Setup Menu Message (Sent Every 200Ms If Setup Menu Active)

    Bit 2 – 1 = RX on active frequency Bit 3 – 1 = RX on standby frequency Bit 4 – 1 = Stuck PTT (PTT active for more than 34 seconds, TX canceled) Status Bit 0 – 1 = Fault detected Bit 1 –...

  • Page 10: Technical String

    The ID takes the value 0x44n for COM1 and 45n for COM2 where “n” can be a value from 0 to 15 depending on message type. Setting a V16 to COM1 or COM2 is done via dedicated CAN command described in this section.

  • Page 11: Menu Item Message

    ID 0x4n0 Status packet 1, length 8 bytes Byte 0 Message type = 0 Byte 1 Flags Byte 2 Status Byte 3 RX Volume Byte 4 Intercom Volume Byte 5 RX Squelch Byte 6 TX power Byte 7 VSWR ID 0x4n0 Status packet 2, length 7 bytes Byte 0 Message type = 1...

  • Page 12: Technical String

    Byte 1-7 Optional data for command Note: the V16 checks the length of a received CAN packet and will only accept packets that have the correct length for a given command. Do not pad a packet. Send it at the correct length.
  • Page 13 Flip active and standby frequencies RX and intercom volume UP 3db RX and intercom volume DOWN 3db Set RX and intercom volume. Value 0-31. RX volume UP 3db RX volume DOWN 3db Set RX volume. Value 0-31. Intercom volume UP 3db Intercom volume DOWN 3db Intercom volume.
