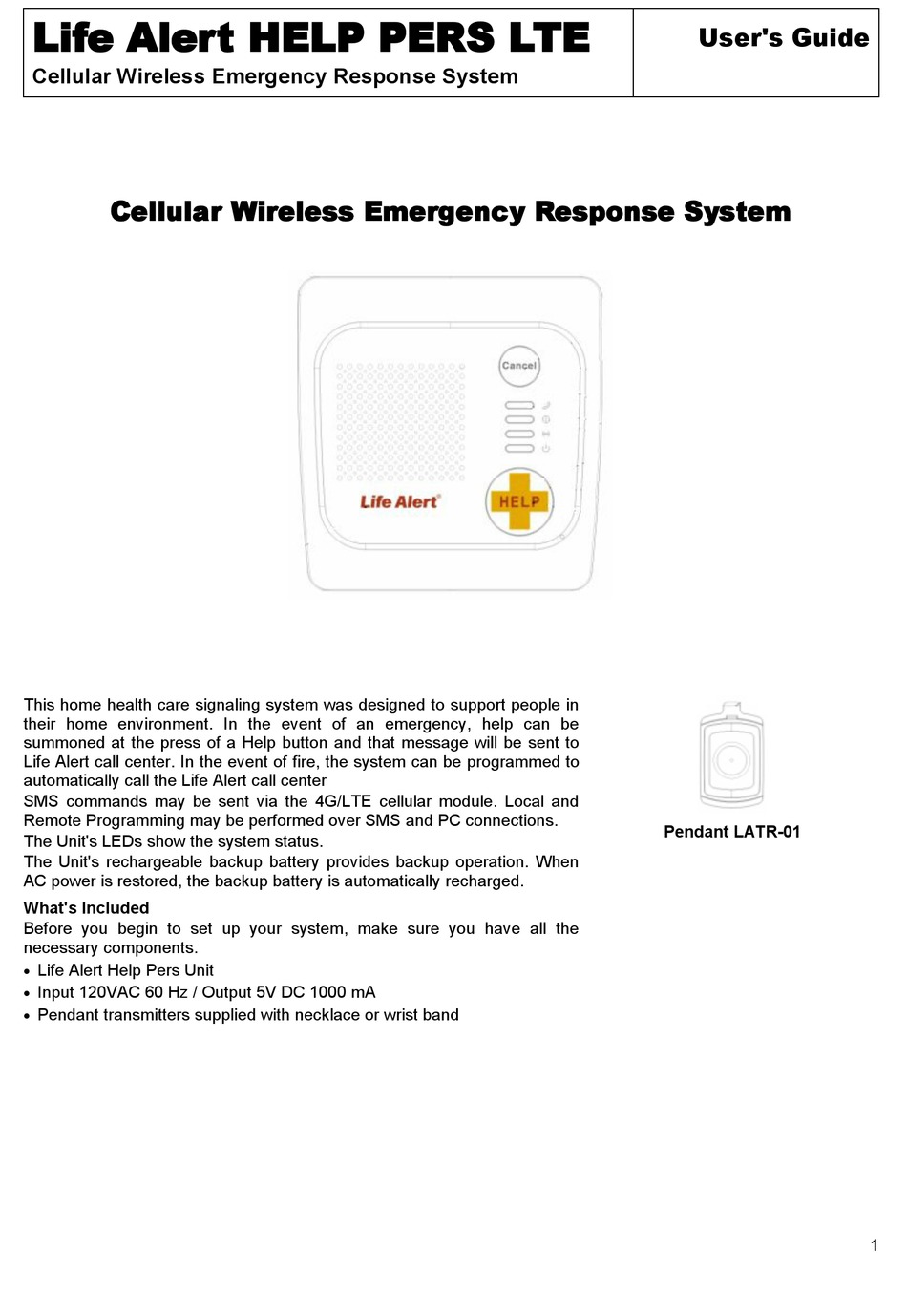

Life Alert HELP PERS LTE
Cellular Wireless Emergency Response System
Cellular Wireless Emergency Response System
This home health care signaling system was designed to support people in
their home environment. In the event of an emergency, help can be
summoned at the press of a Help button and that message will be sent to
Life Alert call center. In the event of fire, the system can be programmed to
automatically call the Life Alert call center
SMS commands may be sent via the 4G/LTE cellular module. Local and
Remote Programming may be performed over SMS and PC connections.
The Unit's LEDs show the system status.
The Unit's rechargeable backup battery provides backup operation. When
AC power is restored, the backup battery is automatically recharged.
What's Included
Before you begin to set up your system, make sure you have all the
necessary components.

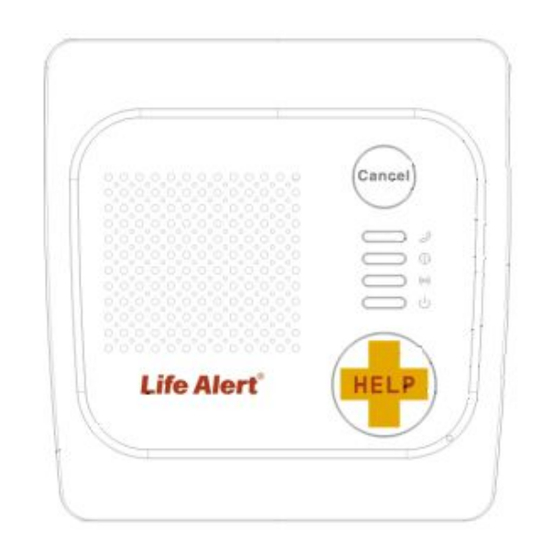

Life Alert Help Pers Unit
Input 120VAC 60 Hz / Output 5V DC 1000 mA
Pendant transmitters supplied with necklace or wrist band
2ABZ7-919
User's Guide
Pendant LATR-01
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Life Alert HELP PERS LTE
Summary of Contents for Life Alert HELP PERS LTE
- Page 1 In the event of an emergency, help can be summoned at the press of a Help button and that message will be sent to Life Alert call center. In the event of fire, the system can be programmed to automatically call the Life Alert call center SMS commands may be sent via the 4G/LTE cellular module.
-
Page 2: Specifications
After you complete the steps above press the Help Make sure that the location you have selected is near button, the unit will automatically call Life Alert call an electrical outlet. center and the dispatch will be in touch with you . -
Page 3: Using Your Help Pers
CANCEL – Cancel emergency call When your pendant transmitter or smoke detector signals to the unit , then it contacts Life Alert Monitoring Using your Pendant Transmitter Center to report the emergency event. The unit includes the following buttons. -
Page 4: Pendant Test
Your pendant the main unit. transmitter is waterproof. The unit calls Life Alert Monitoring Center and sends an Your pendant transmitter can be activated by simply emergency alarm. When your Monitoring Center pushing its button. Once pushed, a signal is sent from... -
Page 5: Remote Sms Commands
EVENT ZONE EVENT EVENT ZONE EVENT CODE DESCRIPTION CODE DESCRIPTION RESTORAL TO FIRE SENSOR Variable FIRE SENSOR LOW BATTERY Variable LOST SUPERVISION RESTORAL TO FIRE SENSOR Variable LOW BATTERY FIRE SENSOR LOST Variable SUPERVISION Remote SMS commands The commands structure: ... - Page 6 12. Read the latest 8 logs GETPW#LOG# for the device data return: +LOG=XXXX# 13. Modify Fibro data SETPW#FIBRO#XXXX# package account data return: +FIBRO=XXXX# 14. Enrolling Wl devices SETPW#ZONEX#RFID CODE# data return: +ZONEX=RFID CODE# 15. Delete Wl devices SETPW#ZONEX#000000# data return: +ZONEX=Deleted# 16.
- Page 7 pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
-
Page 8: Supplier's Declaration Of Conformity
Yasha Sigal Email: Yasha@lifealert.com Phone No.: +18182075116 Fax No.: Product details Product: Life Alert HELP PERS LTE Brand name: Life Alert Model name: 2ABZ7-919 Manufacturer: Life Alert Emergency Response, Inc Address: 16027 Ventura Blvd. Suite 400 Encino California United States 91436...
