- Page 1 PF3100 UV Pilot Card Product Manual March 2018 Rev. 1.1 PROFIRE PF3100 UV Pilot Card The PROFIRE PF3100 UV Pilot Card allows the use of an optical flame detector with the PF3100 system. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 1 of 11...
-
Page 2: Table Of Contents
PF3100 UV Pilot Card Product Manual Introduction ............................... 3 Certifications .............................. 3 Card Information ............................4 Wiring Diagram ............................6 Mounting Instructions ..........................7 Enclosure Specifications ..........................8 Instructions for Use ............................ 8 Preventative Maintenance & Inspection ..................... 9 Important Safety Information ........................10 PROFIRE Contact Information ........................ -
Page 3: Introduction
Introduction Functional Description The PROFIRE PF3100 UV Pilot Card is designed to detect flame via an optical flame detector. It also includes the ability to control an external ignition source via an on-board relay. The function of this module is to relay UV flame scanner information to the BMS for flame detection purposes. -
Page 4: Card Information

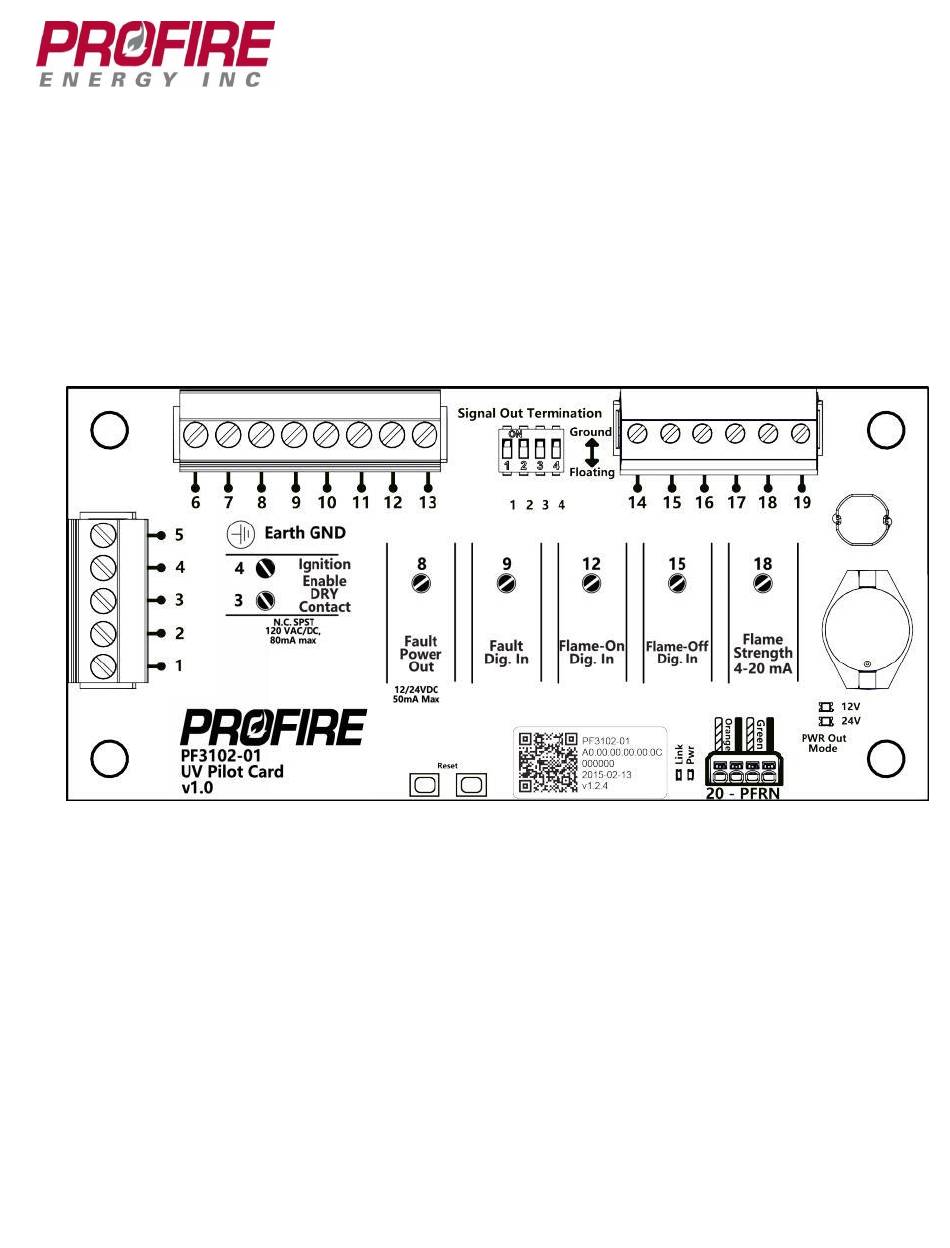

PF3100 UV Pilot Card Product Manual Card Information Card Specifications The ambient temperature rating for the UV Pilot Card is -40°C (-40°F) to +60°C (+140°F). Card Diagram Terminal Specifications Description Name Fig. Ignition Enable (N.O. Dry Contact) Dry Output - 120 VAC/VDC, 80mA Max... - Page 5 Fault Digital In (Figure C) The fault input is used as an interlock for flame detection. The external contact must always be energized – if this contact becomes de-energized, an alarm will trip in the PF3100. Flame-On Digital In (Figure The flame-on signal receives information on flame presence.
-
Page 6: Wiring Diagram
PF3100 UV Pilot Card Product Manual Wiring Diagram The diagram below indicates how the UV card is connected to the BMS module. PROFIRE 1.855.776.3473 solutions@profireenergy.com Page 6 of 11... -
Page 7: Mounting Instructions
PF3100 UV Pilot Card Product Manual Wiring Specifications 12-30 AWG can be used for all connections. External fuses must be installed according to the local code. Wire gauge size must also be selected in accordance with local codes. Mounting Instructions... -
Page 8: Enclosure Specifications
Instructions for Use The UV Pilot card is designed to be used with a certified BMS controller as part of the PF3100 platform. The only connection to the BMS is the PFRN. External power is not required for the board. Configuration of the card settings are performed on the PF3100 User Interface. -
Page 9: Preventative Maintenance & Inspection
PF3100 UV Pilot Card Product Manual Ignition The UV Pilot card will close the ignition during a BMS ignition sequence. This may be connected to an ignition source such as the PROFIRE Pilot Spark card. Preventative Maintenance & Inspection In order to ensure that this product works correctly and efficiently, the following maintenance and inspection procedures should be followed: ➢... -
Page 10: Important Safety Information
Please contact PROFIRE should any replacement parts be required. Important Safety Information Before installing the PF3100 UV Pilot card, please review the list of warnings below. Product use in a manner not specified by PROFIRE is not recommended. Failure to observe the following warnings may result in death, electrocution, property damage, product damage, product damage, government fines, or malfunction of the product itself. -
Page 11: 10. Profire Contact Information
Evaluation for the UV Pilot Card as part of the system assembly is required after final installation. ➢ Equipment MUST be installed with a PF3100 controller. 10. PROFIRE Contact Information If you have any concerns or questions about this product, please contact PROFIRE as follows: U.S.
