Quantum TURBO3 Operating Instructions Manual page 4

"CD" Camera Cables power digital cameras from any Quantum Turbo
model that has a low voltage output. Examples are CD1, CD3, CD30.
"SD" Camera Cables power digital cameras from Turbo 3 or T2X2 only.
Examples are SD2, SD4.
Plug CD or SD cables only into socket B of Turbo 3, and plug the other
end into the camera it is designed for. Turbo 3 automatically adjusts
the DC low voltage correctly for the compatible camera. The yellow
LED indicator will light for SD cables. The white LED indicator
will light also when CD cables are connected.
Quantum Qflash "T" models come with their own power cord which
plugs into the A or B socket of Turbo 3.
Qflash Pilot can use an accessory power cord CCQ8, CQ8, or CQ2 for
power. Plug into A or B socket of the Turbo 3.
4. Operation
Turn Turbo 3 OFF before attaching or removing cables.

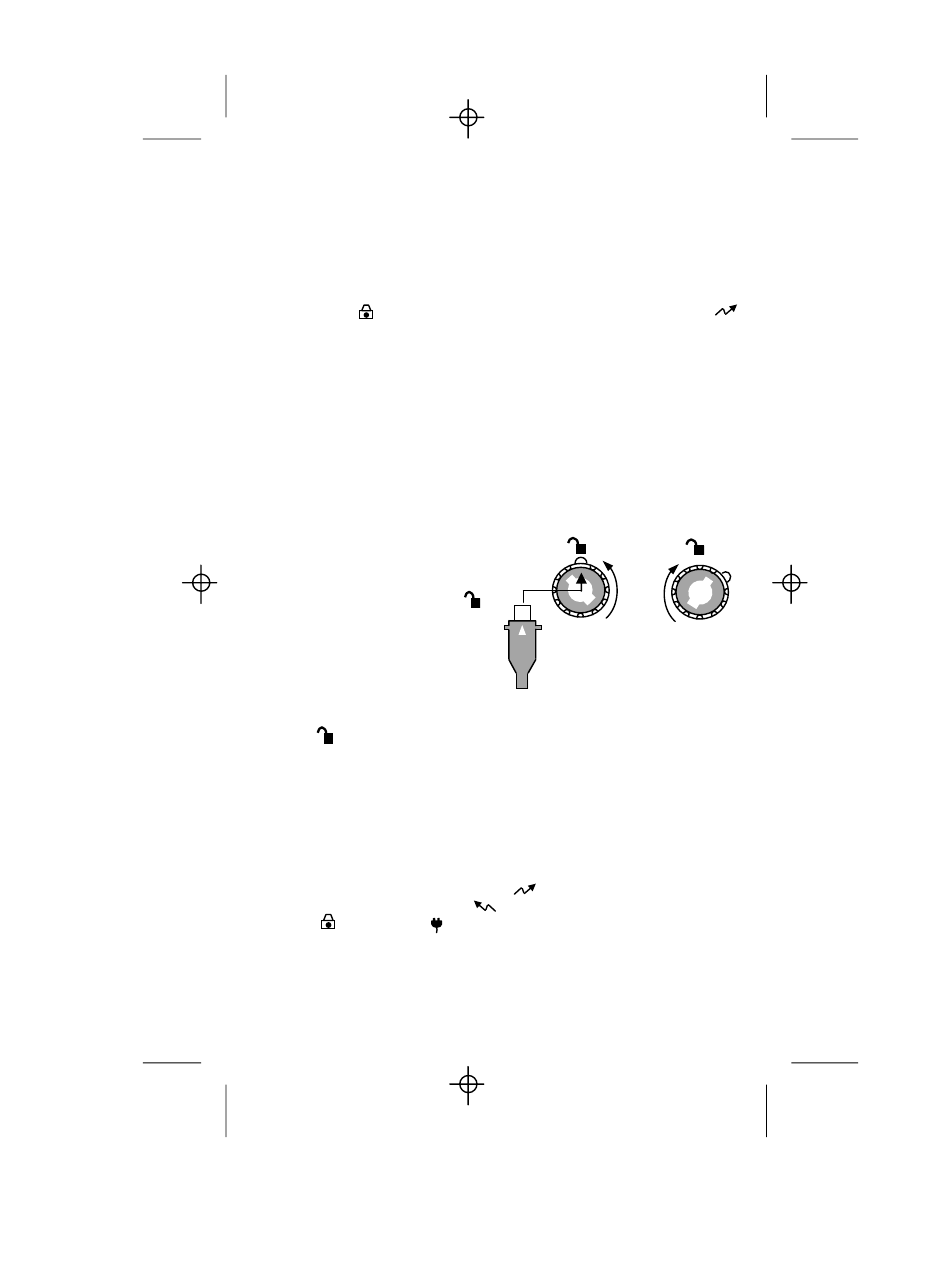

To attach a locking cable, turn the
lock ring counter clockwise. Line up
the key indicator ▲ on the cable
plug with the "unlock" symbol
and press fully in. Lock the cable
by turning the lock ring clockwise.
UNLOCK LOCK
To insert a non-locking cable line up the key indicator with the "unlock"
symbol on the panel and press fully in.
To turn Turbo 3 on press and hold the ON / OFF button until the "fuel
gauge" lights, then release before the lights go out. To turn off, press
and hold the button until the lights go out.
The fuel gauge displays the remaining capacity in the pack.
Each socket A and B lights steadily when in use. The A socket has a
white LED indicator and flash symbol . The B socket has a white
LED indicator and flash symbol , a yellow LED indicator with
camera and charger symbols. Please see Sections 6 and 7 for
LED indications of the status of your Turbo 3 and/or any problems that
it may have detected.
You may connect flashes to either A or B sockets, but digicams may
connect only to the B socket. Keep unused sockets clean and dry with
the attached covers.
