Felix Storch F-750 Operation Manual

Produce quality meter
Hide thumbs Also See for F-750:
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
F-750
Produce Quality Meter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-750 and is the answer not in the manual?

Questions and answers

Related Manuals for Felix Storch F-750

Summary of Contents for Felix Storch F-750

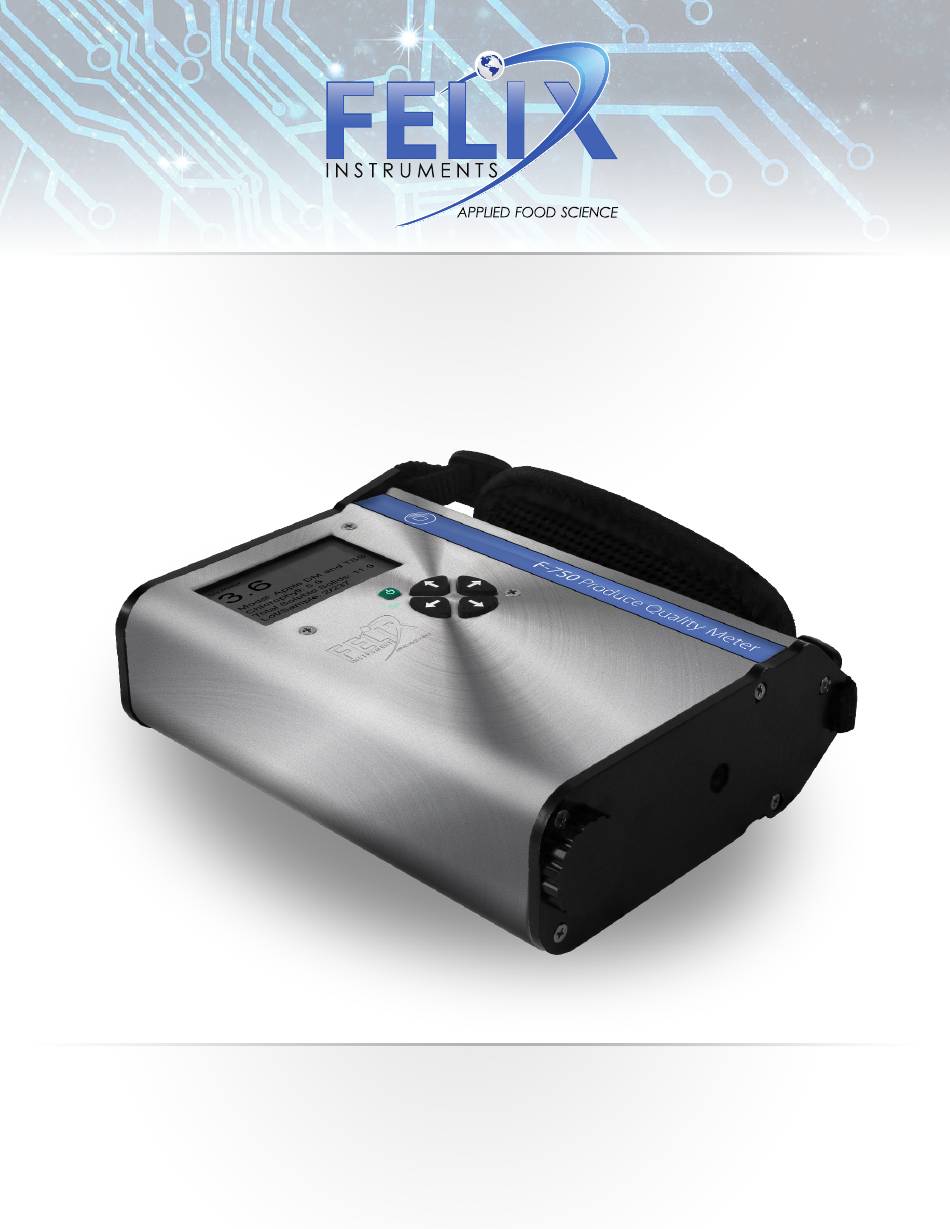

  • Page 1 Operation Manual F-750 Produce Quality Meter...

  • Page 3: Table Of Contents

    Firmware Update Procedure ........................13 Warnings ..............................13 Supporting Science............................14 F-750 Vocabulary Definitions ........................16 TECHNICAL SUPPORT ..........................18 Customer Service ............................ 18 Frequently Asked Questions ........................19 FELIX INSTRUMENTS HARDWARE WARRANTY ................... 20 F-750 PRODUCTION TEST CHECK SHEET ..................... 21...

  • Page 4: Introduction

    Harvesting immature fruit has a high impact on fruit eating quality. Judging fruit maturity by shape and color alone results in varying success. The F-750 solves this issue with its simple user interface and precise measurements. It comes equipped with GPS for spatial mapping, enabling users to generate orchard-wide maps of fruit parameters, such as planning for harvest sequences and improving crop management techniques.

  • Page 5: Specifications

    The F-750 will arrive with removable, rechargeable batteries, two battery chargers (one for the wall and a car charger), a white Teflon calibration disc, and a clip to attach the F-750 to a belt. There is a tripod mount located on the bottom of the F-750 Produce Quality Meter case.

  • Page 6: Navigating Menus

    A Glossary of Vocabulary Definitions is located at the end of this manual. Navigating Menus Use the power button to turn on the F-750. After the instrument powers on, the display will show the current model loaded on the unit and the battery life. Instructions at the bottom of the display indicate to press the square/start button to record a new measurement or press the right arrow to view the main menu.

  • Page 7: Select Model

    Browse Records The data saved by the F-750 is referred to as a record. Each record has different parameters saved in it, depending on the model used when taking the measurement. For example, if using the mango model, the record will contain values for dry matter, color and chlorophyll.

  • Page 8: Setup Instrument

    Date & Time: The date & time menu adjusts the time stamp on the F-750. Record Prefix: At the record prefix menu, a new prefix can be entered or select a recently used prefix.

  • Page 9: F-750 Data

    F-750 Data Data collected by the F-750 can be reviewed on the instrument by using the “Browse Records” menu. The data is stored on the removable SD card. To remove, press into the unit and the card will eject. To replace, insert metal side first with the label facing the back of the unit.

  • Page 10: How To Generate A Model

    F-750 Instruction Manual rev. 3/26/2014 How to Generate a Model 1554 NE 3 Ave, Camas, WA 98607, USA Phone (360) 833-8835 Fax (360) 833-1914 sales@felixinstruments.com http://www.felixinstruments.com...
  • Page 11 F-750 Instruction Manual rev. 3/26/2014 1. Connect the instrument to the computer and open the software. 2. Insert the SDcard to the computer. 3. Prompt user for the location of the calibration files. 4. Load Slov-Golay scans into the program.
  • Page 12 F-750 Instruction Manual rev. 3/26/2014 7. The user manually enters known calibration values determine by reference method (i.e. TSS or DM). This is the Y population. 8. Program preforms PLS regression with Leave One out Cross Validation (k-1 cross validation).
  • Page 13 13. Graph the B coefficient or weighted regression coefficients. 14. Check the B coefficient for noise. If noise is present, identify and remove it. 15. Save the model to the file system on the F-750. 1554 NE 3 Ave, Camas, WA 98607, USA Phone (360) 833-8835 Fax (360) 833-1914 sales@felixinstruments.com...

  • Page 14: Partial Least Squares Basics

    F-750 Instruction Manual rev. 3/26/2014 Partial Least Squares Basics 1. Collect Spectra (X data or training set). 2. Determine your Reference Method and experimental error (Y data or calibration set). 3. Plot the Spectra and determine what preprocessing is required.

  • Page 15: How To Collect Spectra And Reference Values

    F-750 Instruction Manual rev. 3/26/2014 How to Collect Spectra and Reference Values 1554 NE 3 Ave, Camas, WA 98607, USA Phone (360) 833-8835 Fax (360) 833-1914 sales@felixinstruments.com http://www.felixinstruments.com...

  • Page 16: Cleaning And Maintenance

    Cleaning and Maintenance Keep the lens of the F-750 clean and protected from dirt and scratches. If the lens is dirtied, unscrew the cover plate and gently wipe the lens in a smooth straight motion with rubbing alcohol and a clean nonabrasive cloth.

  • Page 17: Supporting Science

    F-750 Instruction Manual rev. 3/26/2014 Supporting Science Cozzolino, D., Parker, M., Dambergs, R. G., Herderich, M. and Gishen, M. (2006), Chemometrics and visible-near infrared spectroscopic monitoring of red wine fermentation in a pilot scale. Biotechnol. Bioeng., 95: 1101–1107. Downey, G. 1996. Non-invasive and non-destructive percutanous analysis of farmed salmon flesh by near infra-red spectroscopy.
  • Page 18 F-750 Instruction Manual rev. 3/26/2014 P. Subedi, K. Walsh, and P. Purdy. (2010) Determination of Optimum Maturity Stages of Mangoes Using Fruit Spectral Signatures, China Int Mango Conf 1-12. K. Walsh, J. Guthrie and J. Burney. (2000) Aust. J Application of commercially available, low-cost, miniaturized NIR spectrometers to the assessment of the sugar content of intact fruit.

  • Page 19: F-750 Vocabulary Definitions

    Partial Least Squares (PLS): mathematical method used by the F-750 to generate a mathematical model of regression coefficients. PLS1 only predicts a single trait with a single regression vector. PLS2 can be used to predict multiple traits with a single regression vector. The F-750 will do PLS1 multiple times to predict multiple traits.
  • Page 20 F-750 Instruction Manual rev. 3/26/2014 regression vector specific to a single property (such as dry matter). By taking the dot product of the regression vector and a scan of an unknown sample, a concentration can be determined. These are stored in a single row wise vector, there is 1 element in the vector for every pixel used the regression.

  • Page 21: Technical Support

    F-750 Instruction Manual rev. 3/26/2014 TECHNICAL SUPPORT If you have a question about the F-750, first look in the F-750 Instruction Manual. There is also online support available for the F-750 through our parent company at http://felixinstruments.com/support. If you cannot find the answer, you can contact a Technical Support Representative located in your country.

  • Page 22: Frequently Asked Questions

    1. What can the F-50 Produce Quality Meter measure? a. The F-750 Produce Quality Meter can be used to predict the concentration of dry matter and total soluble solids. It can categorize trait groups and is ideal for total trait quantification.

  • Page 23: Felix Instruments Hardware Warranty

    F-750 Instruction Manual rev. 3/26/2014 FELIX INSTRUMENTS HARDWARE WARRANTY Important: Please Read! Seller’s Warranty and Liability: Seller warrants new equipment of its own manufacturing against defective workmanship and materials for a period of one year, of a single shift operation, from date of receipt of equipment - the results of ordinary wear and tear, neglect, misuse, accident and excessive deterioration due to corrosion from any cause is not to be considered a defect.

  • Page 24: F-750 Production Test Check Sheet

    F-750 Instruction Manual rev. 3/26/2014 F-750 PRODUCTION TEST CHECK SHEET 1554 NE 3 Ave, Camas, WA 98607, USA Phone (360) 833-8835 Fax (360) 833-1914 sales@felixinstruments.com http://www.felixinstruments.com...
