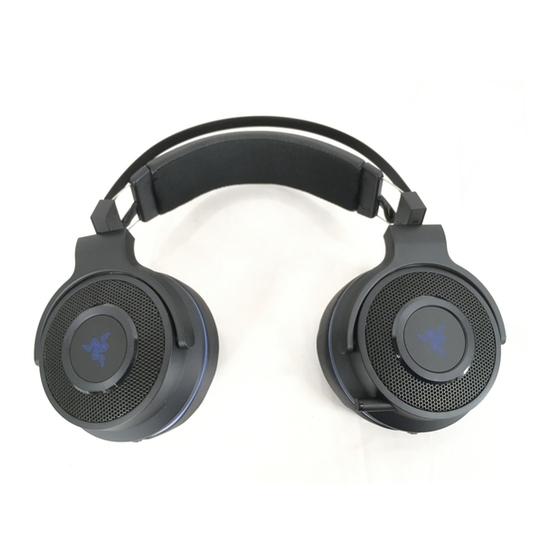

Wireless gaming headset and usb wireless dongle

Advertisement

DTD :27/7/2017
User manual for Wireless Gaming Headset (Model:RC30-022302)
and
USB Wireless Dongle (Model: RC30-022301)
Razer

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC30-022302 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Razer RC30-022302

  • Page 1 DTD :27/7/2017 User manual for Wireless Gaming Headset (Model:RC30-022302) USB Wireless Dongle (Model: RC30-022301) Razer...
  • Page 2: Package Contents / System Requirements

    PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS Wireless Gaming Headset (Model:RC30-022302) USB wireless dongle (Model: RC30-022301) USB to Micro-USB cable Optical to mini-optical cable Important Product Information Guide SYSTEM REQUIREMENTS PlayStation®4 PC (Windows 7 or higher) / Mac (OS X 10.9 or higher) A free USB port ™...
  • Page 3: Registration / Technical Support

    Register your product online at razerzone.com/registration to get real-time information on your product’s warranty status. If you haven’t registered for a Razer ID yet, register now at razerzone.com/razer-id to get a wide range of Razer benefits. Your product’s serial number can be found underneath the leatherette cushion, as shown here.
  • Page 4: Device Layout

    DEVICE LAYOUT Adjustable padded headband Circumaural, leatherette ear cushions Microphone LED Retractable microphone Razer logo backlighting ™ F O R GA M E R S . B Y G AM E R S .
  • Page 5 LED indicator Headset power button Micro-USB charging port Mic volume control Audio volume control USB wireless dongle Optical input port Optical to mini-optical cable Micro-USB to USB cable ™ F O R GA M E R S . B Y G AM E R S .
  • Page 6 SETTING UP YOUR RAZER THRESHER 7.1 CONNECTING YOUR USB WIRELESS DONGLE TO YOUR PS4 1. Plug the USB wireless dongle to your PS4*. 2. Plug the optical to mini-optical cable from the USB wireless dongle to your PS4*. *Not applicable to Playstation Slim models ™...
  • Page 7 3. From the PS4 home Screen, go to Settings > Sound and Screen > Audio Output Settings. 4. On the Primary Output Port, select DIGITAL OUT (OPTlCAL), and then select Dolby Digital 5.1ch. Note: Please make sure that Dolby Digital 5.1ch is the only selected option on the list. ™...
  • Page 8 5. On the Audio Format (Priority), select Linear PCM. 6. Go to Settings > Devices > Audio Devices, and then select your Razer Thresher 7.1 for the Input Device and Output Device options. ™ F O R GA M E R S . B Y G AM E R S .
  • Page 9 Note: It is recommended to set Volume Control and Adjust Microphone Level to maximum then use the headset controls to fine-tune the settings. 7. On the Output to Headphones, select Chat Audio. CONNECTING YOUR AUDIO DONGLE TO YOUR PC 1. Plug the USB wireless dongle to your PC. ™...
  • Page 10 You can also right-click on the sound icon on the system tray, and then select Playback devices. 3. In the Playback tab, select Razer Thresher 7.1 from the list, and then click the Set Default button. CONNECTING YOUR AUDIO DONGLE TO YOUR MAC 1.
  • Page 11 2. Open your Sound settings from System Preferences > Sound. 3. In the Output tab, select Razer Thresher 7.1 from the list. 4. In the Input tab, select Razer Thresher 7.1 from the list. ™ F O R GA M E R S . B Y G AM E R S .
  • Page 12: Charging Your Headset

    USING YOUR RAZER THRESHER 7.1 CHARGING YOUR HEADSET Plug your Razer Thresher 7.1 to a powered USB port using the Micro-USB to USB cable. For best results, please fully charge the headset before using it for the first time. A depleted unit will fully charge in about 4 hours.
  • Page 13: Power Off

    POWER OFF Press and hold the headset power button until you hear the OFF tone, the LED indicator is off, or until the Razer logo is turned off. ™ F O R GA M E R S . B Y G AM E R S .
  • Page 14 CONNECTING NOTIFICATIONS The headset and the audio dongle will display notifications depending on its current status, as shown here: NOTIFICATION STATUS Searching Blinking Connected Static Note: If the headset is not connected, it will automatically power off after a few minutes. ™...
  • Page 15 USING THE AUDIO VOLUME CONTROL Rotate the audio volume control to increase or decrease the volume. You will hear a short beep when you reach the minimum or maximum volume. Press the audio volume button to mute or unmute the in-game audio. Press and hold the audio volume button until you hear a tone to enable or disable the virtual surround sound environment.
  • Page 16 USING THE RETRACTABLE MICROPHONE Pull the tip of the microphone until it is fully extended. Bend the microphone until it is in front of your mouth, then adjust the length as preferred. ™ F O R GA M E R S . B Y G AM E R S .
  • Page 17 USING THE MIC VOLUME CONTROL Rotate the volume control to increase or decrease the microphone volume. You will hear a short beep when you reach either the minimum or maximum volume. Press the mic volume control to mute or unmute the microphone. The microphone LED will light up when muted.
  • Page 18 Please refer to the Online Master Guide at razersupport.com for in-depth instructions on how to configure and use your Razer Thresher 7.1. ™ F O R GA M E R S . B Y G AM E R S .
  • Page 19: Safety And Maintenance

    SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Thresher 7.1, we suggest that you adopt the following guidelines: Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to razersupport.com...
  • Page 20: Limited Product Warranty

    Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.
  • Page 21 COSTS OF PROCUREMENT For the avoidance of doubt, in no event will Razer be liable for any costs of procurement unless it has been advised of the possibility of such damages, and in no case shall Razer be liable for any costs of procurement liability exceeding the retail purchase price of the Product.
  • Page 22 STATEMENT OF COMPLIANCE WITH EU DIRECTIVE Hereby, Razer (Europe) GmbH, declares that this Razer Thresher 7.1 For PS4 ( Wireless Gaming Headset Model: RC30-022302 and USB Wireless Dongle Model: RC30-022301) is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
