WARNING
• Observe all local plumbing and building codes.
• Cover the drain in your sink to avoid losing parts.
• When connecting the plastic tubes, please note there should be no torsion or deformation.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 12 minutes
Tools Required for Assembly (not included): Adjustable wrench
Helpful Tools (not included): Channel-lock pliers, Safety goggles.
• Prior to beginning installation, turn off the water supply and turn on the existing faucet to release
build-up pressure.

ASSEMBLY INSTRUCTIONS

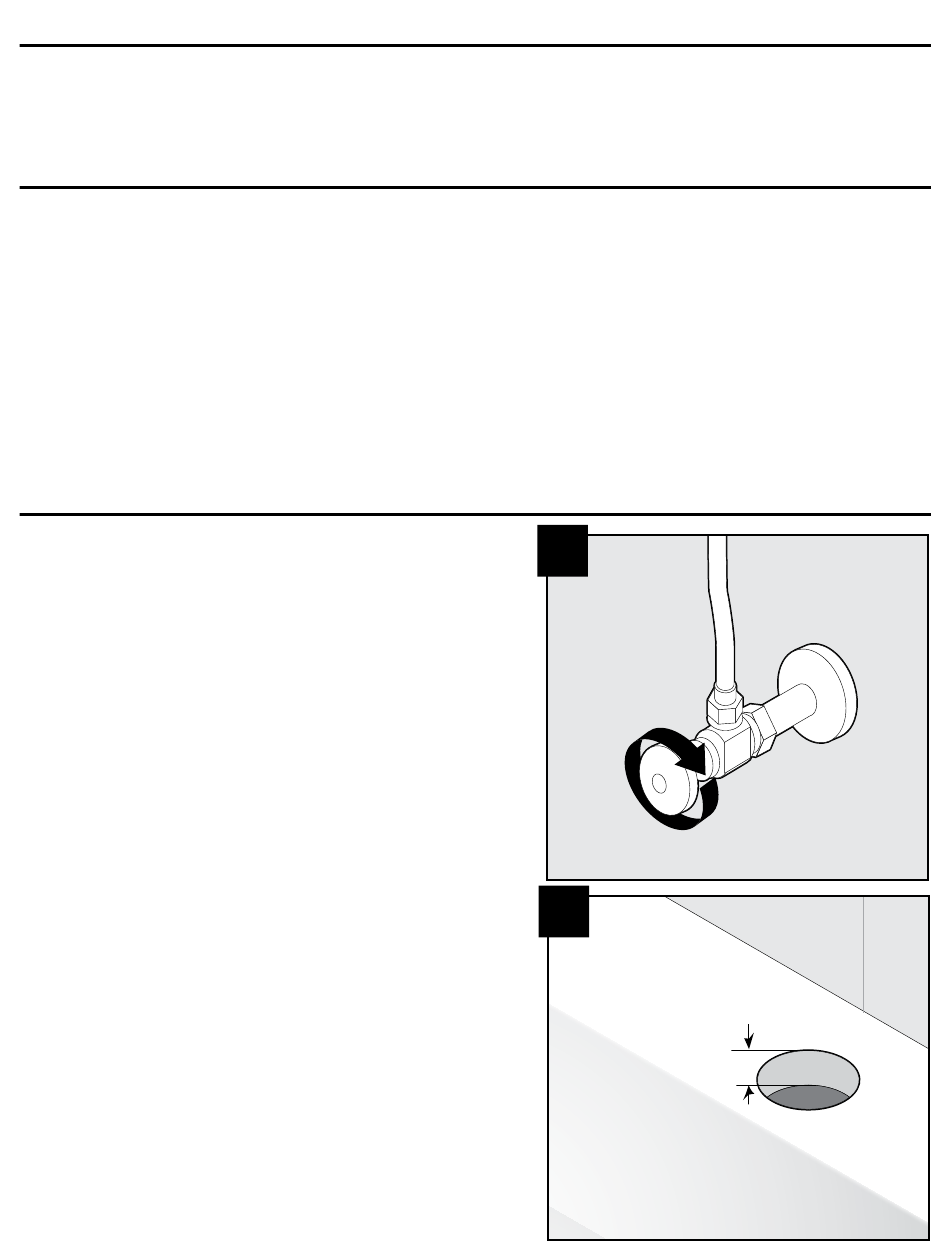

1. Turn off water supply. Remove existing
faucet if necessary.
2. Determine the location to install the dispenser.
A minimal 1-1/4 in. diameter hole is required to
install the dispenser.
1
2
1/16 in. (1 mm) min.
1-1/2 in. (38 mm) max.
Ø 1-1/4 in. (32 mm) min.
Ø 1-1/2 in. (38 mm) max.
3
