Room Temperature Sensor Installation Guide

Mounting

The RTS-424 backplate is designed for mounting directly on a standard North American, European or
Australian electrical box, but may be mounted in other ways as well.

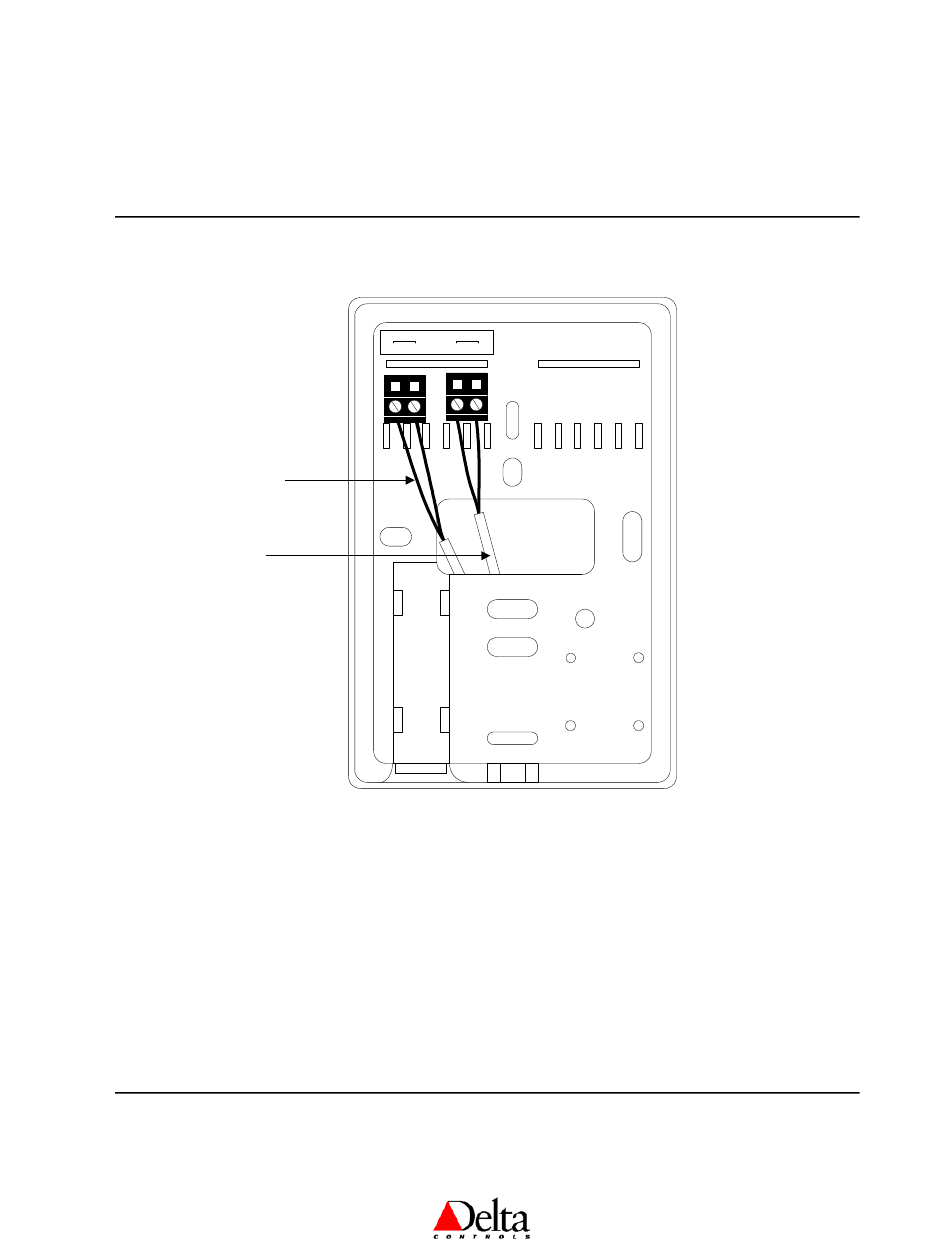

Wiring Diagram

24 VAC/24 VDC
Power Connection
Network
Connection
Notes:
1. Follow documented network installation guidelines for Intelli-Stat networks.
2. Do not terminate the network shield on the RTS-424, but ensure shield conductivity is maintained along the
network from end-to-end with wire nuts (i.e., Marrettes™) as necessary.
3. IMPORTANT: Ensure that the network shield and any other bare wires and their connections are all kept in the
wall behind the backplate to ensure that they do not come into contact with the board electronics and cause a
short. Otherwise you run the risk of damaging the RTS-424.
If the same power source is used for more than one RTS-424, ensure that the transformer is properly sized for the
rated VA and ensure that the same polarity is observed from device to device. Each RTS-424 is rated for 1.5 VA
Document Edition 1.1
PWR NET
+ -
24~ GND
BACKPLATE
Mounting
Page 5 of 8
