Operation instructions (software)

Intended use

This software can show or change the operating statuses or
parameters for TIN-cable devices. Error protocols can be cre-
ated, exported or the error memory can be deleted. Locked
electronics can be unlocked as required.
User interface
The programs are operated with a mouse. Values are entered
using the keyboard.
Set language
1
1 Open the "Tools"
menu and click
"Language" to select
the menu language.
"Diagnose Tool" program
Prerequisites for operation:
Device from index
Combi 4 (E) 4/1A
Combi 6 (E)
4/1
Combi D 6/06
Mover® all (Mover® S from 01/008)

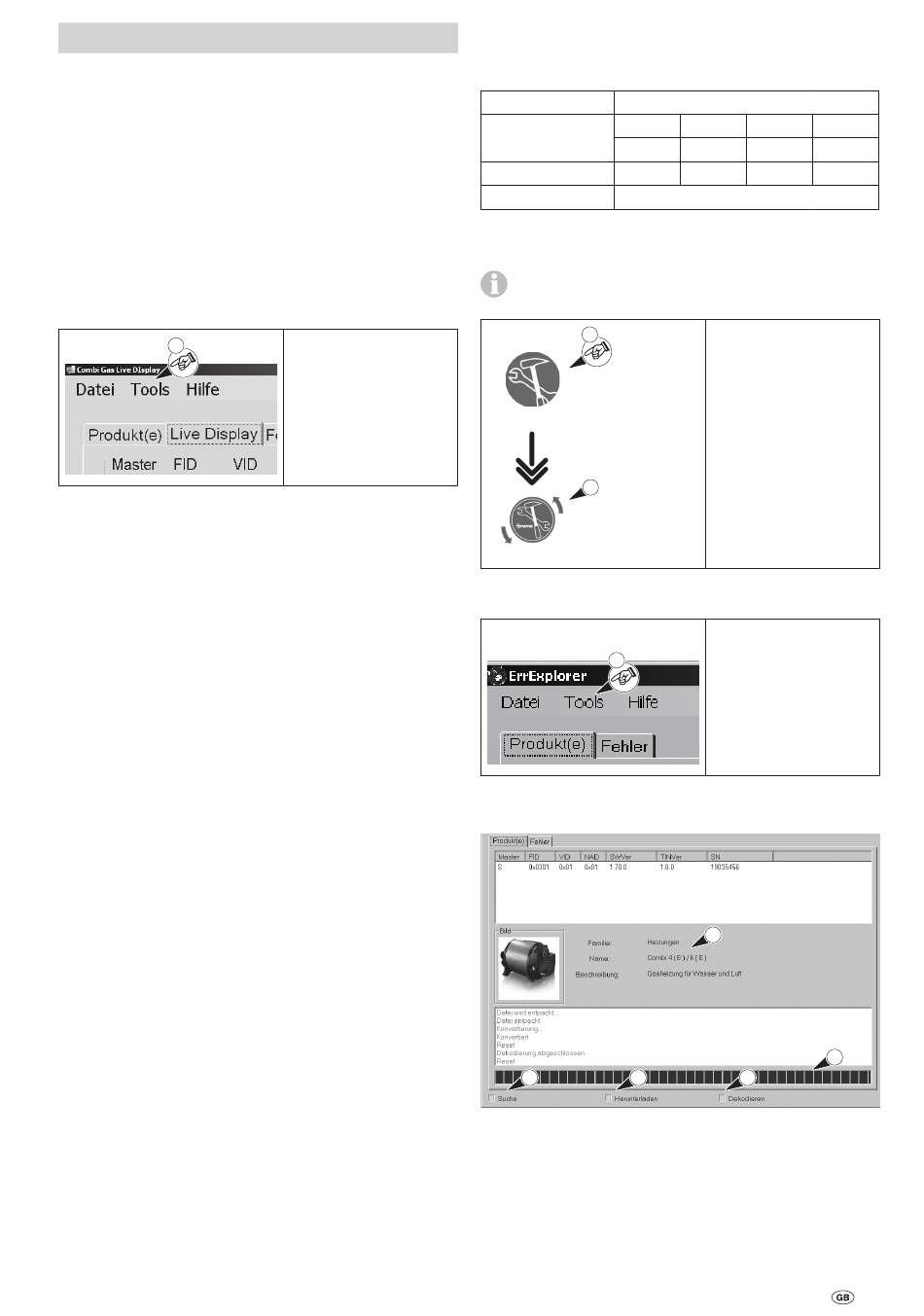

Start program
The "Live Display" program may not be active, it must be
closed first.
1
Diagnose Tool
2
Search for device
1
Read error memory
1 2
Display the current action
1 Device search.
 The error memory is exported.
3 The content of the error memory is prepared for display.
4 Status bar.
5 Device for which an error was exported.
6/1A 4/11 6/11
6/1 4/13 6/13
6/07 4/01
1 Double-click the icon
on the desktop.
. A start screen is shown
whilst the program is
loading.
1 Open the "Tools"
menu and click "Start"
to start the search.
