Export control unit separately

– Place the control unit on a non-conductive surface.
– Check the wires are connected to the correct terminals.
Operating the control unit without a sensor and cable
harness can generate new errors (Combi 4 / 6 – No. 61,
Combi D – No. 111).

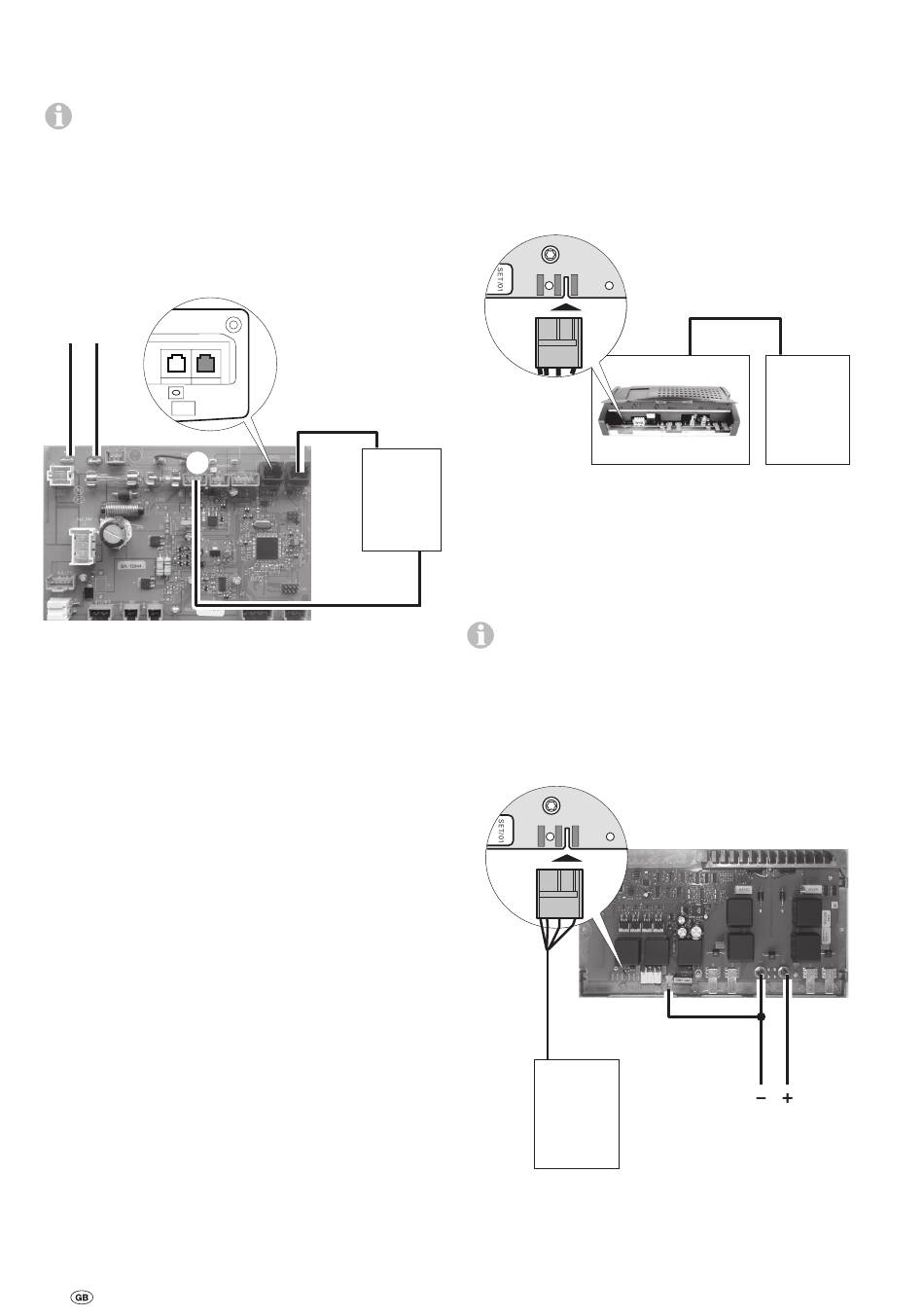

Connection to Combi 4 (E) / Combi 6 (E) /
Combi D
– Supply control unit with power 1 V DC / min. 0. A
– also supply the „Diagnose Tool" with power via the control
unit (1 V DC / min. 0. A).
12 V
+ –
X2
X connection to clock – Combi 4 (E) / Combi 6 (E)
connection to ZSU – Combi D
Export error memory
– Start the "Diagnose Tool" program on the computer.
1
Mover®
Control unit installed in the vehicle
– The control unit of the Mover® must be operational.
– The power supply must be active.
– Connect the 13 or 7-pin plugs of the caravan into the safety
socket.
– Connect the "Diagnose Tool" to the Mover® adapter cable.
Mover® connection
1 2
Interface
Export error memory
– Start the "Diagnose Tool" program on the computer.
Diagnose Tool
Export control unit separately
12 V DC /
– Place the control unit on a non-conductive surface.
min. 0,2 A
– Check the wires are connected to the correct terminals.
Operating the control unit without periphery can gener-
ate new errors.
Mover® connection
– Supply control unit with power (1 V DC / min. 0. A)
– Simulate the connection of the safety socket with a
bridge (W1).
– Connect the "Diagnose Tool" to the Mover® adapter
cable (W).
Export error memory
– Start the "Diagnose Tool" program on the computer.
belu 2010
Mover®
belu 2010
W2
1 2
Interface
Diagnose Tool
1 2
Interface
Diagnose Tool
W1
12 V
