Please read these instructions completely before beginning installation
KIT CONTENTS
QTY. DESCRIPTION
1
Fan Shroud Assembly
4
Angle Brackets
1
Rubber Fan Shroud Seal
IMPORTANT
This fan assembly is designed for PULLER APPLICATIONS
ONLY Engine side of radiator. (See Diagram #1)
MOUNTING OPTIONS
Diagram #2
Angle
Brackets
Diagram #3
Option 1
Flush Mount
Angle
Bracket
Rubber Seal
(Page 1)
Derale Performance, Los Angeles, CA
HIGH OUTPUT RAD FAN ASSEMBLY
QTY. DESCRIPTION
16
1/4-20 x 3/4" Hex Bolts
16
1/4-20 Lock Nuts
40
1/4" Flat Washers
Down Flow Radiator
Recessed Mount
Angle
Bracket
Rubber Seal
INSTALLATION INSTRUCTIONS
PART # 16817, 16820 & 16827
TOOLS NEEDED
7/16" Open End Wrench
7/16" Socket and Ratchet
Wire Stripper
Wire Crimping Tool
Option 2
800.421.6288
Diagram #1
Puller Fan
Engine
Cross Flow Radiator
Angle Brackets
Adjustment Range
3 3/4"
Adjustment
Range
www.derale.com
16817-16820-16827-InstructionSheet
Air Flow
Radiator
Revised-12/15/2011
Advertisement
Table of Contents
Related Manuals for Derale 16817
Summary of Contents for Derale 16817
-
Page 1: Installation Instructions

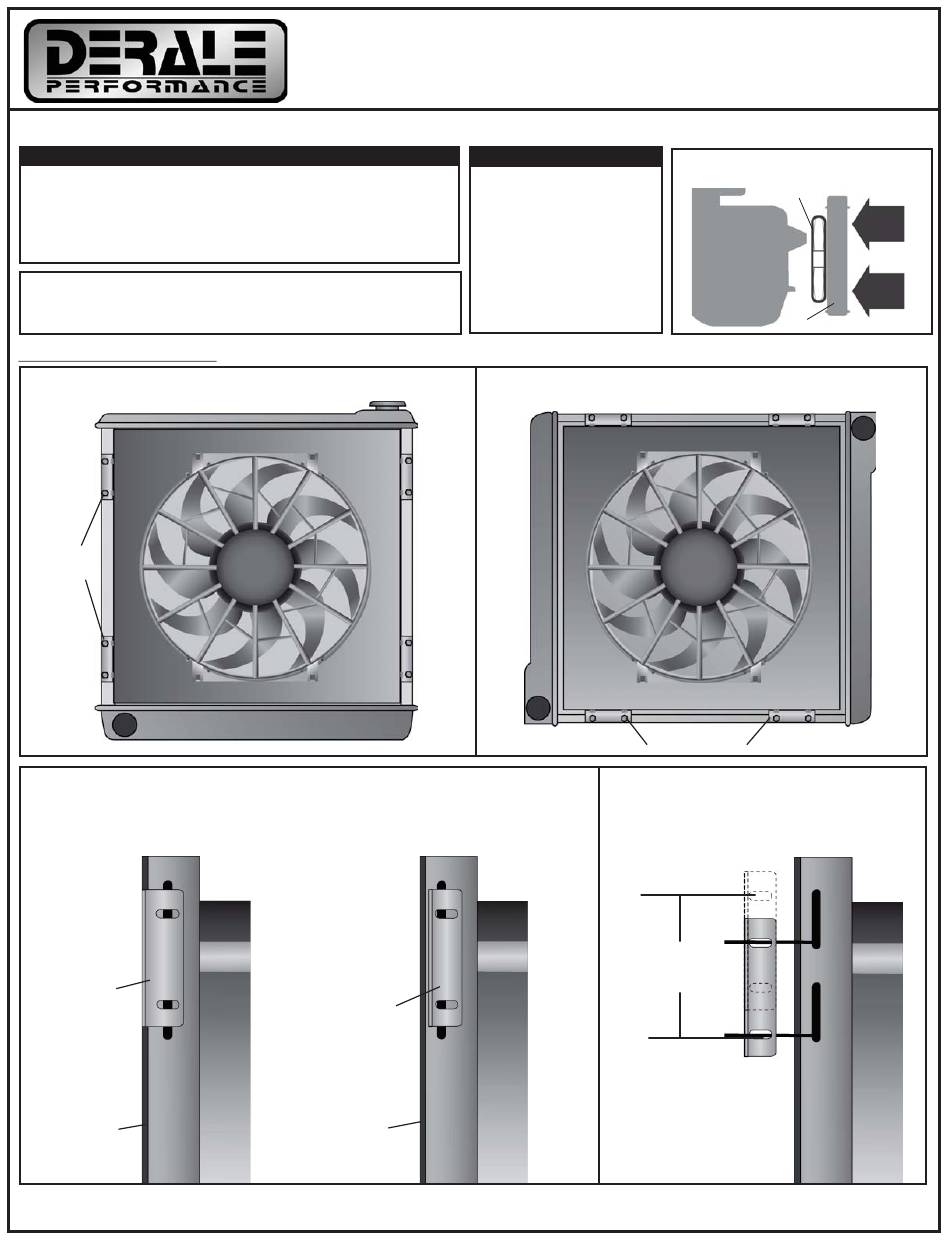

INSTALLATION INSTRUCTIONS HIGH OUTPUT RAD FAN ASSEMBLY PART # 16817, 16820 & 16827 Please read these instructions completely before beginning installation KIT CONTENTS TOOLS NEEDED Diagram #1 QTY. DESCRIPTION QTY. DESCRIPTION 7/16” Open End Wrench Puller Fan Fan Shroud Assembly 1/4-20 x 3/4”... - Page 2 25 amps. Note: When installing the Electric Fan with a Thermostat always follow manufacturer's instructions for specific details. In some cases you will not need the supplied relay harness. (Page 2) Derale Performance, Los Angeles, CA 800.421.6288 www.derale.com...
