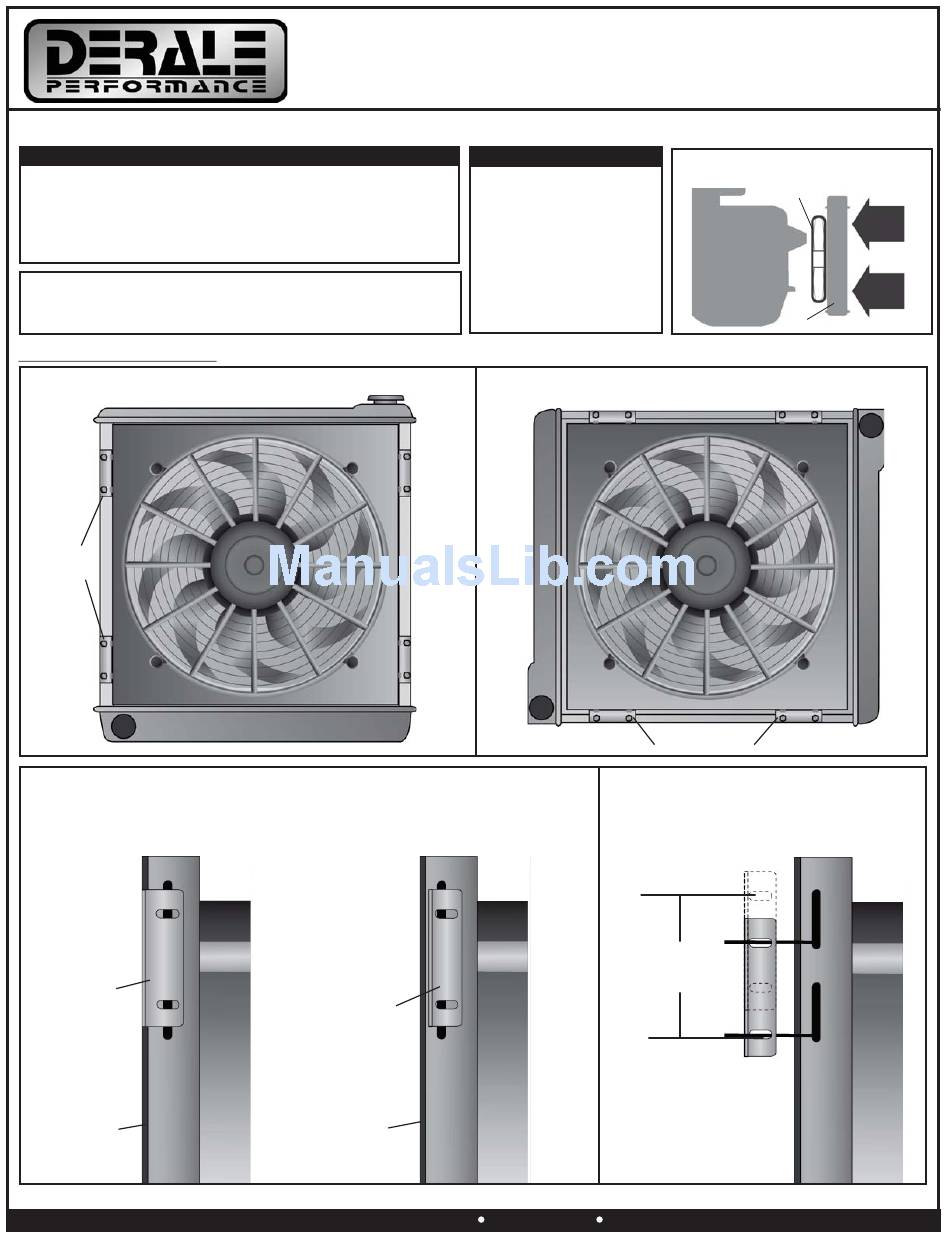

Please read these instructions completely before beginning installation
KIT CONTENTS
QTY. DESCRIPTION
1
Fan Shroud Assembly
4
Angle Brackets
1
Rubber Fan Shroud Seal
IMPORTANT
This fan assembly is designed for PULLER APPLICATIONS
ONLY Engine side of radiator. (See Diagram #1)
MOUNTING OPTIONS
Diagram #2
Angle
Brackets
Diagram #3
Option 1
Flush Mount
Angle
Bracket
Rubber Seal
(Page 1)
Derale Performance, Los Angeles, CA
HIGH OUTPUT 2 SPEED RAD FAN ASSEMBLY
PART # 16816,16818,16819,16821,16822,16823 & 16828
QTY. DESCRIPTION
16
1/4-20 x 3/4" Hex Bolts
16
1/4-20 Lock Nuts
40
1/4" Flat Washers
Down Flow Radiator
Recessed Mount
Angle
Bracket
Rubber Seal
Installation INSTRUCTIONS
TOOLS NEEDED
7/16" Open End Wrench
7/16" Socket and Ratchet
Wire Stripper
Wire Crimping Tool
Option 2
800.421.6288
Diagram #1
Puller Fan
Engine
Radiator
Cross Flow Radiator
Angle Brackets
Adjustment Range
3 3/4"
Adjustment
Range
www.derale.com
16816-16818-16819-16821-16822-16823-16828-InstructionSheet
Air Flow
Revised-12/14/2011
Advertisement
Table of Contents
Related Manuals for Derale 16816
Summary of Contents for Derale 16816
- Page 1 INSTALLATION INSTRUCTIONS HIGH OUTPUT 2 SPEED RAD FAN ASSEMBLY PART # 16816,16818,16819,16821,16822,16823 & 16828 Please read these instructions completely before beginning installation KIT CONTENTS TOOLS NEEDED Diagram #1 QTY. DESCRIPTION QTY. DESCRIPTION 7/16” Open End Wrench Puller Fan 7/16” Socket and Ratchet Fan Shroud Assembly 1/4-20 x 3/4”...
- Page 2 Important: The Electric Fan Assembly is built using a High Output two speed motor. If you choose to operate the fan using both speeds, two switching devices or a Derale Dual Fan Controller Part # 16788 / 16789 must be used.
- Page 3 We recommend using two thermostats therefore activating the low speed at an earlier temperature then the high speed. Please visit www.derale.com for available thermostat options or visit your local retailer. Note: When purchasing a thermostat always consider the maximum amp draw. Some thermostats are not designed to properly handle higher amperage fans.
