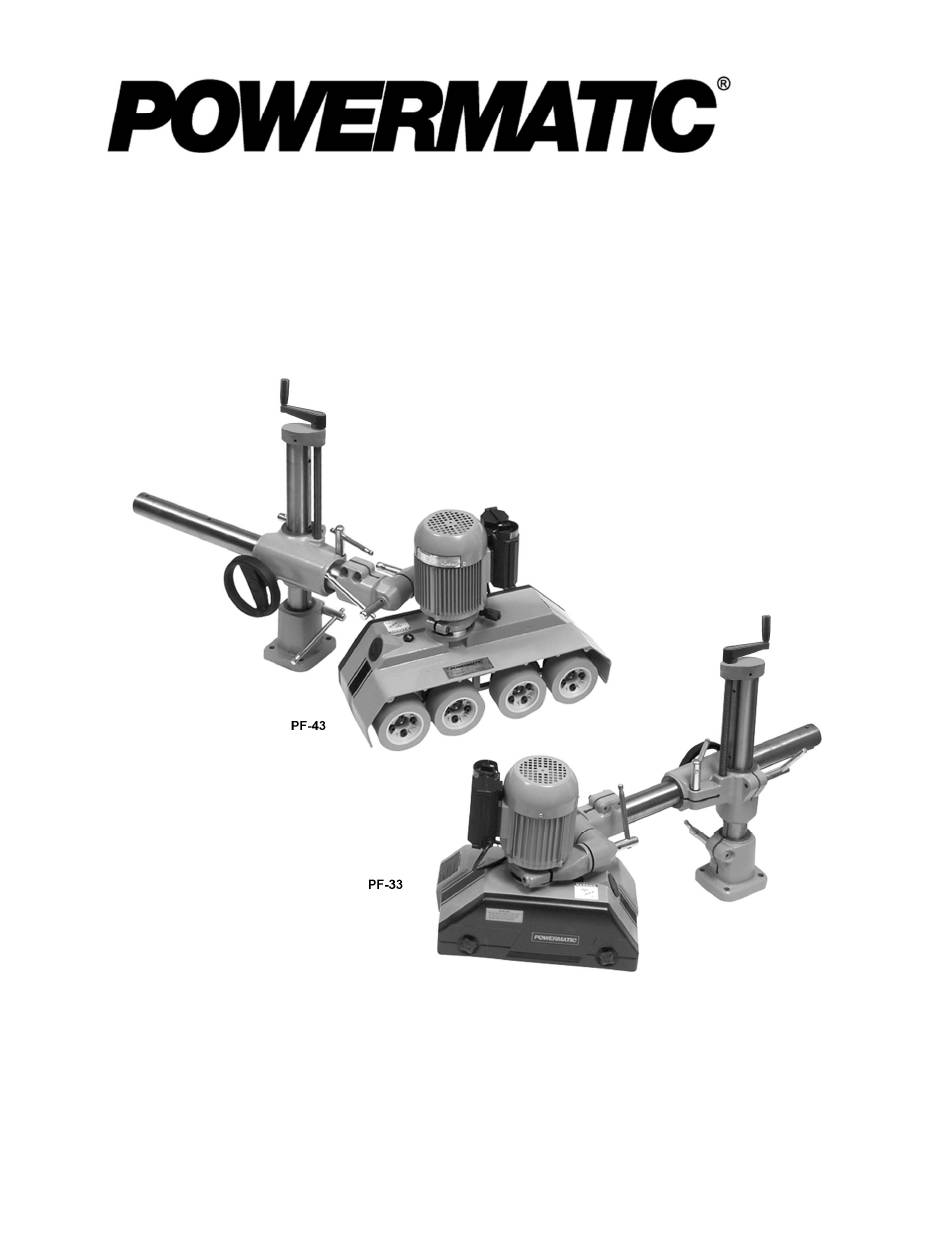

Operating Instructions and Parts Manual
4-Speed Stock Feeders
Models PF-31, PF-33, PF-41, PF-43
Powermatic
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-1790800
Ph.: 800-274-6848
Revision D1 11/2018
www.powermatic.com
Copyright © 2014 Powermatic

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Powermatic PF Series

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual 4-Speed Stock Feeders Models PF-31, PF-33, PF-41, PF-43 Powermatic 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-1790800 Ph.: 800-274-6848 Revision D1 11/2018 www.powermatic.com Copyright © 2014 Powermatic...
  • Page 2: Warranty And Service

    Powermatic sells through distributors only. The specifications listed in Powermatic printed materials and on the official Powermatic website are given as general information and are not binding. Powermatic reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
  • Page 3: Table Of Contents

    Table of Contents Warranty and Service ............................ 2   Table of Contents ............................3   Warning ................................. 4   Introduction..............................6   Description ..............................6   Specifications ..............................6   Features and Terminology ..........................7   Unpacking ..............................8   Contents of the Shipping Container ......................
  • Page 4: Warning

    5. Do not use this stock feeder for other than its intended use. If used for other purposes, Powermatic disclaims any real or implied warranty and holds itself harmless from any injury that may result from that use.
  • Page 5 26. Disconnect from power both the stock feeder and the auxiliary machine before cleaning. Use a brush or compressed air to remove chips or debris — do not use your hands. 27. Do not stand on the machine. Serious injury could occur if the machine tips over. 28.
  • Page 6: Introduction

    Introduction This manual is provided by Powermatic covering the safe operation and maintenance procedures for the Model PF-31 (single phase), PF-33 (three phase), PF-41 (single phase) and PF-43 (three phase) Stock Feeders. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown.
  • Page 7: Features And Terminology

    Features and Terminology Figure 1...
  • Page 8: Unpacking

    Contents of the Shipping Container Unpacking Carton #1: Open both cartons and check for shipping Stock Feeder damage. Report any damage immediately to Grease Gun (grease not included – follow your distributor and shipping agent. Do not instructions on its packaging to fill) discard any shipping material until the Stock Feeder is assembled and running properly.
  • Page 9: Assembly

    Assembly Tools needed for assembly (not provided): Electric drill center punch and hammer 10.5mm drill bit M12 x P1.75 tap 12mm, 14mm and 19mm wrenches 5mm hex wrench Hardware needed for assembly: 4 M12 spring washers 4 M12 x P1.75 hex cap screws (length will depend upon thickness of table) Exposed metal areas of the stock feeder have been factory coated with a protectant.
  • Page 10 3. Clean the table surface, then peel away the backing from boring template increments, as you carefully apply the boring template onto the table. 4. Center punch drill four 10.5mm diameter holes in the table surface, then tap the holes with M12 x P1.75 threads. 5.
  • Page 11: Grounding Instructions

    17. Mounting the feeder body may be easier if you loosen the two hex cap screws (shown in Figure 8) and rotate the over arm cone assembly so that the clamp is toward the bottom, as shown in Figure 9. Loosen the handles and rotate the cones as needed to get the clamp in position.
  • Page 12: Extension Cords

    Extension Cords If an extension cord is necessary, make sure the Recommended Gauges (AWG) of Extension Cords cord rating is suitable for the amperage listed on the machine's motor plate. An undersize cord Extension Cord Length * will cause a drop in line voltage resulting in loss of power and overheating.
  • Page 13: Operating Controls

    Disconnect stock feeder from power source before opening the back cover or switching gears. To change the position of the gears: 1. Disconnect machine from power source. 2. Unscrew the two knobs and pull off the back cover to expose the gear system, shown in Figure 13.
  • Page 14: General Operating Instructions

    General Operating Instructions 1. Make sure all handles on the stock feeder and the feeder mounting assembly are tight before operating. 2. The stock feeder should be used in conjunction with a fence on your auxiliary machine. The fence should be securely fixed.
  • Page 15: When Used With A Table Saw

    2. To ensure that the workpiece is held firmly against the fence, set the stock feeder at a slight angle toward the fence in the direction of feed. In other words, the outfeed roller should be approximately 3/16” (5mm) closer to the fence than the infeed roller.
  • Page 16: Roller Removal/Replacement

    2. Some woodworkers prefer to place the feeder so that all rollers are over the outfeed table, as shown in Figure 22. The infeed roller should be approximately 3/16” away from the lip of the outfeed table at the cutterhead area. 3.
  • Page 17: Lubrication

    NOTE: These cones are subject to high torque and it may be necessary to periodically re- tighten the handle until the cone surfaces become securely seated. Exposed metal areas, such as the column and the over arm, should be kept clean and free of rust.
  • Page 18: Replacement Parts

    Serial Number of your machine available when you call will allow us to serve you quickly and accurately. Non-proprietary parts, such as fasteners, can be found at local hardware stores, or may be ordered from Powermatic. Some parts are shown for reference only, and may not be available individually.
  • Page 19: Pf-31/33 Feeder Body

    PF-31/33 Feeder Body...
  • Page 20: Parts List: Pf-31/33 Feeder Body

    Parts List: PF-31/33 Feeder Body Index No. Part No. Description Size ....2192188 ....PF-31 Feeder Body (1Ph, 115V, 4 speed) ..............2192187 ....PF-33 Feeder Body (3Ph, 230V, 4 speed) ..............2192189 ....PF-33 Feeder Body (3PH, 460V, 4 speed) ..........1 ....
  • Page 21 Index No. Part No. Description Size 61 ..... 6289057 ....Gear ..............20T ......1 62 ..... 6289056 ....Bushing ..............20D x 17D x (10+2) ..1 63 ..... 6289135 ....Bushing ..............29D x 23D x (9+3) ..1 64 .....
  • Page 22: Pf-41/43 Feeder Body

    PF-41/43 Feeder Body...
  • Page 23: Parts List: Pf-41/43 Feeder Body

    Parts List: PF-41/43 Feeder Body Index No. Part No. Description Size ....2192190 ....PF-43 Feeder Body (3Ph, 230V, 4 speed) ..............2192191 ....PF-41 Feeder Body (1Ph, 230V, 4 speed) ..........1 ....6289074 ....Grease Gun....................1 2 ....
  • Page 24 Index No. Part No. Description Size 62 ..... 6289056 ....Bushing ..............20D x 17D x (10+2) ..1 63 ..... 6289135 ....Bushing ..............29D x 23D x (9+3) ..1 64 ..... 6289153 ....Gear Lever Shaft ..................1 65 .....
  • Page 25: Parts List: Motor Assembly For Pf-31/33 And Pf-41/43

    Parts List: Motor Assembly for PF-31/33 and PF-41/43 SINGLE PHASE Index No. Part No. Description Size 1 ....6289098 ....Motor ............1HP, 1Ph, 115V, 60Hz ..... 1 2 ....6289207 ...."O" Ring ....................1 3 ....6289086 ....Screw ............M8 x 1.25P x 20Lg ....4 4 ....
  • Page 26: Feeder Mounting Assembly For Pf-31/33 And Pf-41/43

    Feeder Mounting Assembly for PF-31/33 and PF-41/43...
  • Page 27 Parts List: Feeder Mounting Assembly for PF-31/33 and PF-41/43 Index No. Part No. Description Size ....6289113 ....Complete Mounting Base Assembly ............1 ....6289179 ....Handle Assembly ..........M12 x 1.75 ....3 2 ....6288903 ....Flat Washer ............1/2 x 25 ....... 3 4 ....
  • Page 28: Electrical Connections - 3 Phase Only

    Electrical Connections – 3 Phase only GROUND Red (4) Red (6) White (1) White (2) Red (5) White (3) 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.powermatic.com...
