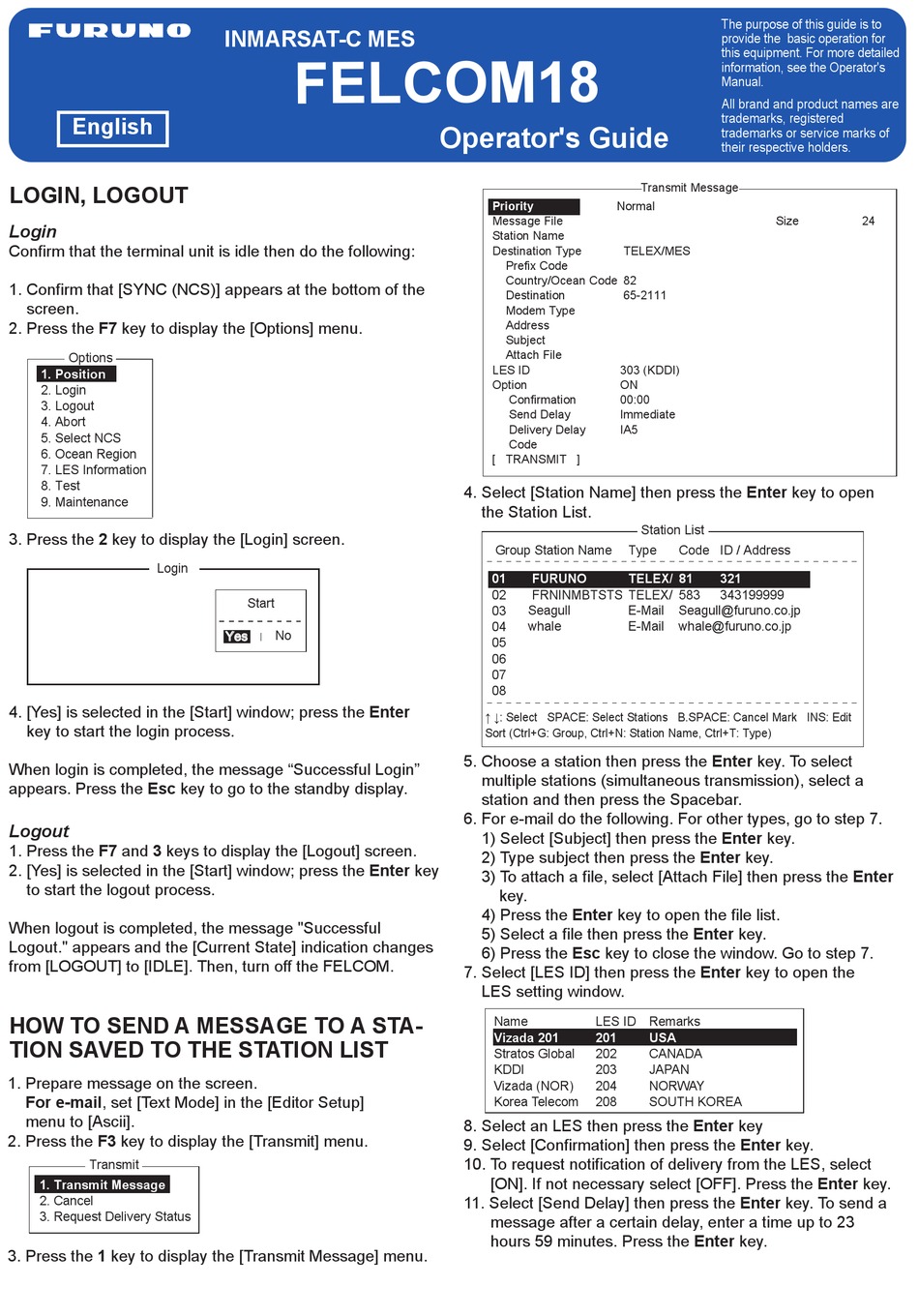

Furuno FELCOM18 Operator's Manual

English
LOGIN, LOGOUT
Login
Confirm that the terminal unit is idle then do the following:
1. Confirm that [SYNC (NCS)] appears at the bottom of the
screen.
2. Press the F7 key to display the [Options] menu.
Options
1. Position
2. Login
3. Logout
4. Abort
5. Select NCS
6. Ocean Region
7. LES Information
8. Test
9. Maintenance
3. Press the 2 key to display the [Login] screen.
Login
4. [Yes] is selected in the [Start] window; press the Enter
key to start the login process.
When login is completed, the message "Successful Login"
appears. Press the Esc key to go to the standby display.
Logout
1. Press the F7 and 3 keys to display the [Logout] screen.
2. [Yes] is selected in the [Start] window; press the Enter key
to start the logout process.
When logout is completed, the message "Successful
Logout." appears and the [Current State] indication changes
from [LOGOUT] to [IDLE]. Then, turn off the FELCOM.
HOW TO SEND A MESSAGE TO A STA-
TION SAVED TO THE STATION LIST
1. Prepare message on the screen.
For e-mail, set [Text Mode] in the [Editor Setup]
menu to [Ascii].
2. Press the F3 key to display the [Transmit] menu.
Transmit
1. Transmit Message
2. Cancel
3. Request Delivery Status
3. Press the 1 key to display the [Transmit Message] menu.
INMARSAT-C MES
Start
Yes No
Operator's Guide
1. Transmit Message
2. Cancel
Priority
3. Request Delivery Status
Message File
Station Name
Destination Type
Prefix Code
Country/Ocean Code
Destination
Modem Type
Address
Subject
Attach File
LES ID
Option
Confirmation
Send Delay
Delivery Delay
Code
[ TRANSMIT ]
4. Select [Station Name] then press the Enter key to open
the Station List.
Group Station Name
01 FURUNO
02 FRNINMBTSTS
Seagull
03
whale
04
05
06
07 25 Char. [ Line
08
↑ ↓: Select SPACE: Select Stations B.SPACE: Cancel Mark INS: Edit
ENTER: Station List
Sort (Ctrl+G: Group, Ctrl+N: Station Name, Ctrl+T: Type)
5. Choose a station then press the Enter key. To select
multiple stations (simultaneous transmission), select a
station and then press the Spacebar.
6. For e-mail do the following. For other types, go to step 7.
1) Select [Subject] then press the Enter key.
2) Type subject then press the Enter key.
3) To attach a file, select [Attach File] then press the Enter
key.
4) Press the Enter key to open the file list.
5) Select a file then press the Enter key.
6) Press the Esc key to close the window. Go to step 7.
7. Select [LES ID] then press the Enter key to open the
LES setting window.
Name LES ID
Vizada 201 201
Stratos Global 202
KDDI 203
Vizada (NOR) 204
Korea Telecom 208
8. Select an LES then press the Enter key
9. Select [Confirmation] then press the Enter key.
10. To request notification of delivery from the LES, select
[ON]. If not necessary select [OFF]. Press the Enter key.
11. Select [Send Delay] then press the Enter key. To send a
message after a certain delay, enter a time up to 23
hours 59 minutes. Press the Enter key.
The purpose of this guide is to
provide the basic operation for
this equipment. For more detailed
information, see the Operator's
Manual.
All brand and product names are
trademarks, registered
trademarks or service marks of
their respective holders.
Transmit Message
Normal
Size
TELEX/MES
82
65-2111
303 (KDDI)
ON
00:00
Immediate
IA5
Station List
Type Code ID / Address
TELEX/ 81 321
TELEX/ 583 343199999
E-Mail Seagull@furuno.co.jp
E-Mail whale@furuno.co.jp
2/ 2 Col. 1 ] [Insert
DEL:
Remarks
USA
CANADA
JAPAN
NORWAY
SOUTH KOREA
