Dynisco TX180 Installation And Operation Manual

Temperature transmitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

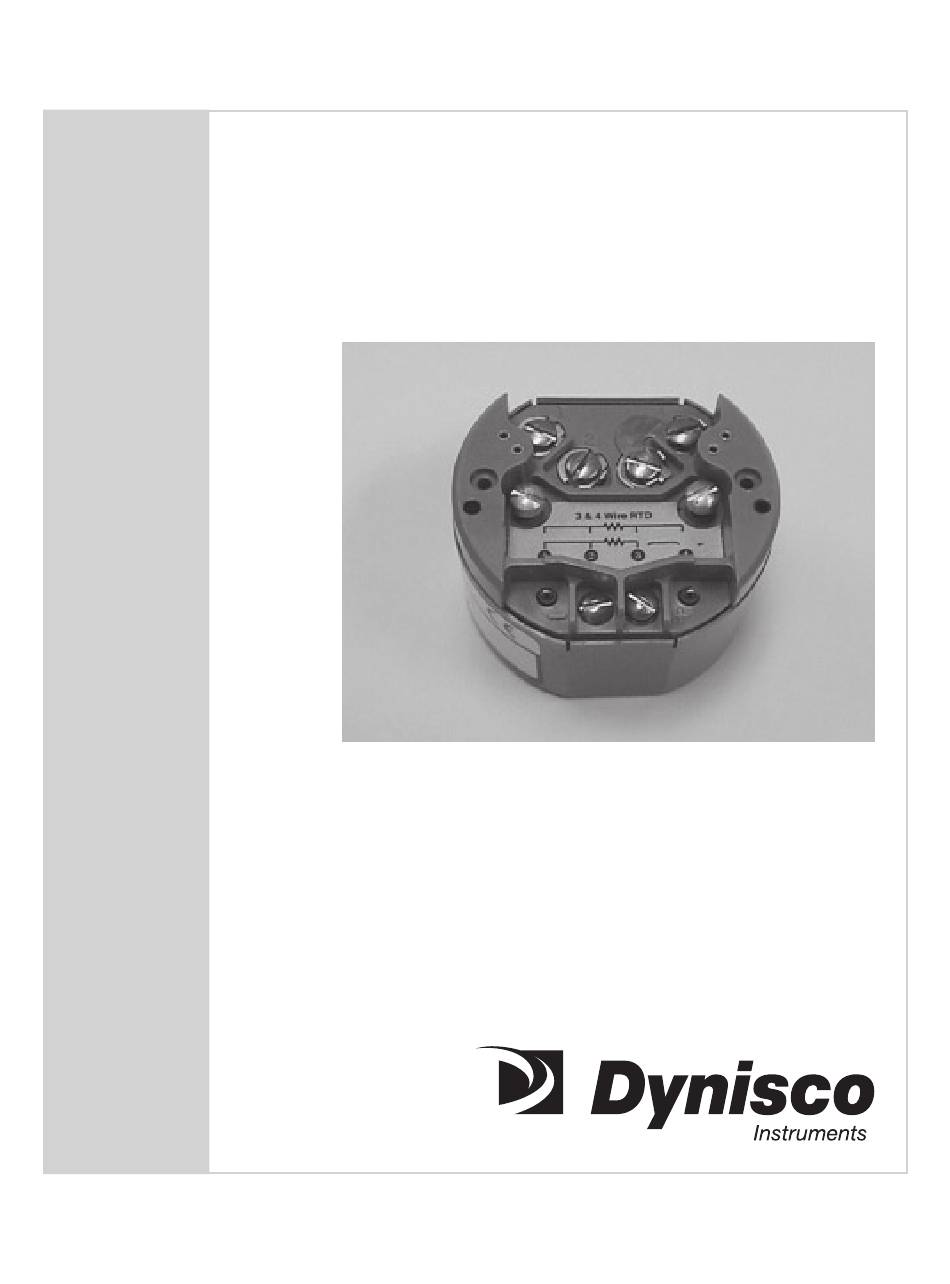

Model TX180
Temperature Transmitter
Installation and Operation Manual
P/N 974083
04/02 Rev. B
ECO # 26721

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TX180 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynisco TX180

Summary of Contents for Dynisco TX180

  • Page 1 Model TX180 Temperature Transmitter Installation and Operation Manual P/N 974083 04/02 Rev. B ECO # 26721...

  • Page 3: Table Of Contents

    ONTENTS 1. Introduction ..........................5 2. Unpacking and Installation ....................... 6 Unpacking ........................6 Mechanical Installation ....................6 2.2.1 Weather Proof/Explosion Proof Housing ................. 6 2.2.2 Mounting ........................7 Electrical Installation ....................... 9 2.3.1 Output Terminals ......................9 2.3.2 Input Terminals ......................10 3.
  • Page 4 Configuration With an External Source ................41 For Best Measurement Accuracy ................... 43 7. Accessories and Information ....................43 8. Specifications ......................... 44 9. Repair ............................47 10. Warranty ..........................47 IST OF LLUSTRATIONS Figure 1, Optional Weather-Proof Housing ..................7 Figure 2, Optional DIN Rail Mounting Bracket ................

  • Page 5: Introduction

    E-mail: salesinst@dynisco.com NTRODUCTION The TX180 is a transmitter that accommodates any one of eleven types of thermocouples, six types of RTD’s, millivolt or ohm inputs. The unit is precision linearized to the measured temperature over the entire usable range of the selected sensor. This transmitter is simple to set up and operates much like high performance analog transmitters.

  • Page 6: Unpacking And Installation

    These housings have appropriate mounting means in the bottom to attach the TX180 in any of four orientations 90° apart. Captive 8-32 machine screws are installed on the transmitter to facilitate installation and removal to either a housing...

  • Page 7: Mounting

    2.2.2 M OUNTING The TX180 transmitter may be mounted on a 2 inch pipe (vertical or horizontal), on a bulkhead, a panel, a DIN rail or other rigid support members utilizing the various mounting brackets and associated hardware available from Dynsico. These types of mounts provide greater flexibility in installation and removal of transmitter for service.

  • Page 8: Figure 2, Optional Din Rail Mounting Bracket

    Fig. 2 Optional DIN Rail Mounting Bracket 2.2.2.2 H OUNTING For head mounting, all the Explosion Proof / Weatherproof housings can be used for head mounting. All heads have two 1/2" female NPT conduit entries. One of these conduit entries can be used to mount directly onto a 1/2"...

  • Page 9: Electrical Installation

    LECTRICAL NSTALLATION The TX180 has two groups of terminals. One terminal group is for the sensor input. The second terminal group is for transmitter output. The terminals labeled “+” and “-” are the 4 to 20mA output terminals. These are normally connected to the corresponding polarity terminals of the power supply of the current loop.

  • Page 10: Input Terminals

    The following chart gives maximum series resistance: Max. Series Resistance, Rs Supply Voltage, Vs 1300 ohms 42.0 Volts 520 ohms 24.0 Volts 417 ohms 21.6 Volts 250 ohms 18.0 Volts 0 ohms 12.0 Volts 2.3.2 I NPUT ERMINALS See Figure 5 for sensor input connections. Be certain to include the proper jumpers for thermocouple sensors and for two or three wire RTD inputs.

  • Page 11: Transmitter Operation

    TX180 Temperature Transmitter 2.3.2.3 T RTD I HREE NPUT Apply the common legs from the RTD (generally the same color RTD leads) to terminals 1 and 2. Apply the other signal lead to terminal 3. Terminals 3 and 4 must be jumpered together for proper operation and to prevent any build-up of electrostatic charge on these terminals which could affect the transmitter readings.

  • Page 12: Operation With A Display

    250 ohm resistor. Now turn on the power supply. In about 5 seconds the TX180 loop current will settle to its normal value in the range of 4 to 20mA, unless the input terminals are open, in which case the output current will be 23.00mA.
  • Page 13 7 characters long. In normal operation this row shows a label, which is factory set to display “TX180”. Note that the process temperature displayed on the LI-1 and LI-2 is the actual temperature as measured by the transmitter, it is not affected by the analog output range settings.

  • Page 14: Configuration Using The Two-Line Display

    To configure a transmitter using the DISPLAY MODE, either the LI-1 or LI-2 local LCD display is required. These displays are available as an option and can be plugged into the top of the TX180 transmitter. The transmitter can also be purchased with these options already installed. These inexpensive options make the reconfiguration, or re-ranging of the transmitter very simple and easy to follow.

  • Page 15: Display Mode Configuration

    TX180 Temperature Transmitter The transmitter is indicating FAILSAFE, since no sensor is connected, and the analog output is indicating greater than 100%, loop current at 23.00mA, which is the standard Failsafe report condition. Please note that the display / keyboards can be plugged into the transmitter while the transmitter is powered up.

  • Page 16: Select Sensor Input

    ELECT A ENSOR NPUT The SELECT SENSOR is the first function in the sequence. Virtually any thermocouple, RTD or millivolt input can be selected. The display will read as follows to indicate this position on the menu: SELECT INPUT If the sensor is set correctly, press NEXT and skip to Section 4.4 of this manual; otherwise press Enter.
  • Page 17 TX180 Temperature Transmitter should one be desired. This Special must be ordered from the factory. 2W OHMS 2W DINP NOTE: This is the 100 Platinum DIN Curve with = 0.00385. 2W SAMP NOTE: This is the 100 SAMA Platinum Curve, known variously as the SAMA RC21-4 or SAMA PR-279.

  • Page 18: Select Units

    NOTE: This is the 100 Platinum DIN with = 0.00385. This sensor will give superior measurement results in most real-world situations where the measured temperature is under 1,000°F. 4W SAMP NOTE: This is the 100 SAMA Platinum Curve, known variously as the SAMA RC21-4 or SAMA PR-279.

  • Page 19: Change Zero

    TX180 Temperature Transmitter Pressing the ENTER key displays the current units. DEG F By repeatedly pressing the Next key, the display will sequence through the following screens: DEG R DEG K DEG C These correspond to K=Kelvin, R=Rankine, C=Celsius and F=Fahrenheit. Stopping the selection at any one of these units and then pressing ENTER will set the transmitter to the corresponding new units.

  • Page 20: Change Full Scale

    After deciding whether the zero value, LRV, is to remain positive (PLUS), press the ENTER key. In this example assume it is to remain positive. The display changes to read: 0 040.0°F THOUSN? and the left most digit position will start blinking (shown here in italics) asking if the thousands position needs to be changed.

  • Page 21: Select Sensor Fail Safe Detection

    If you want to change the SENSOR FAIL SAFE detection press ENTER. The present status of the Sensor Fail Safe is displayed. It is recommended that one turns off the Sensor Fail Safe System when using the TX180 with an input simulator. It should then be turned on when reconnecting the transmitter to the actual sensor.

  • Page 22: Trim 4.0Ma

    TRIM 4 MA? This allows trimming of the 4.00mA output current. NOTE: This function is only for the purpose of adjusting the 4.00mA limit of the transmitter loop current to be exactly 4.00mA according to the plant’s local standard. This is NOT for the purpose of ranging the transmitter! If trimming the 4.00mA limit is still desired then press ENTER.

  • Page 23: Trim 20.Ma

    TX180 Temperature Transmitter pressing the ENTER key, or pressing the NEXT key changes to the next function. 4.10 20.0 TRIM 20 MA? Trimming of the 20.0mA current limit is done in exactly the same manner as was described for trimming the 4.0mA point. The same precautions apply. After completing the trim 20.0mA pressing the Next key brings up the display trim.
  • Page 24 indicating that the existing offset is set to “plus” 0000.0°F. The question mark “?” indicates a question asking if this value is to remain positive (PLUS ?). By repeatedly pressing the NEXT key the display will alternate -0000.0°F 0000.0°F MINUS? PLUS? After deciding whether the offset value is to become negative (MINUS), press the ENTER key.

  • Page 25: Select Language

    TX180 Temperature Transmitter the offset value has just been completed, press the NEXT key to proceed to the next menu selection. Note, if trimming the transmitter to external devices is desirable, it may be necessary to trim the 4 and 20mA output after setting the display offset.

  • Page 26: Figure 7, Li-2 Two-Line Display/Keypad Flowchart

    Fig. 7 Dynisco TX180/ITX190 Configuration Flowchart LI-2 Two-Line Display/Keypad...

  • Page 27: Configuration Using The One-Line Display

    To configure a transmitter using the DISPLAY MODE, either the LI-1 or LI-2 local LCD display is required. These displays are available as an option and can be plugged into the top of the TX180 transmitter. The transmitter can also be purchased with these options already installed. These inexpensive options make the reconfiguration, or re-ranging of the transmitter very simple and easy to follow.

  • Page 28: Display Mode Operation

    ISPLAY PERATION The one-line, LI-1 display will allow the user to do the following in a manner similar to the two-line display. • Select a Sensor Input (Select Input) • Select a desired temperature unit, such as F or C (Select Units) •...
  • Page 29 TX180 Temperature Transmitter 9005 The 9005 Code corresponds to a K thermocouple 9006 The 9006 Code corresponds to an L thermocouple 9007 The 9007 Code corresponds to an N thermocouple 9008 The 9008 code corresponds to an R thermocouple 9009...
  • Page 30 9014 The 9014 code corresponds to a 2-wire 100 DIN curve platinum RTD with an = 0.00385 9015 The 9015 code is the 2-wire 100 SAMA Platinum Curve, known variously as the SAMA RC21-4 or SAMA PR-279. 9016 The 9016 code is reserved for a Special 2 wire RTD, should one be desired. Any special 2-wire RTD curve must be ordered from the factory.
  • Page 31 TX180 Temperature Transmitter 9022 The 9022 code is for a 4-wire 100 DIN curve Platinum RTD with = 0.00385. This sensor will give superior measurement results in most real-world situations where the measured temperature is under 1,000°F. 9023 The 9023 code is the 4-wire 100 SAMA Platinum Curve, known variously as the SAMA RC21-4 or SAMA PR-279.

  • Page 32: Select Units

    You can stop at any one of the thermocouple or RTD or mV selections by pressing the ENTER key. This action changes the transmitter mode to that sensor. If no sensor change is desired, then, without sequencing through the various sensor options, but just pressing the ENTER key will allow one to confirm the sensor selection and leave it unchanged.

  • Page 33: Change Zero

    TX180 Temperature Transmitter HANGE OWER ANGE ALUE The display will then indicate as follows to indicate that one may now change the zero, or 4mA output point. 9200 The code 9200 indicates that one can now CHANGE ZERO, or Lower Range Value (LRV), totally independent of the Full Scale, or Upper Range Value, (URV), without the use of any calibrators or external sensor inputs.

  • Page 34: Change Full Scale

    Sensor Fail Safe detection then press ENTER. The present status of the Sensor Fail Safe is displayed. It is recommended that one turns off the Sensor Fail Safe when using the TX180 with an input simulator. It should then be turned on when reconnecting the transmitter to the actual sensor.

  • Page 35: Select Fail Safe Reporting

    TX180 Temperature Transmitter bring up the FAIL SAFE REPORTING selection screen. ELECT EPORTING The code 9500 indicates the main menu entry for setting the transmitter Fail Safe Reporting. Pressing the ENTER key will bring up the following code. 9501 The code 9501 corresponds to instructing the transmitter to output 3.6mA under a Fail Safe condition.

  • Page 36: Trim 20.Ma

    voltmeters. In this case, trimming will make the transmitter less accurate rather than more accurate! Once trimming the 4.00mA value has been selected, the display will show: 9601 The code 9601 corresponds to selecting the function to raise mA output. Pressing the NEXT key the display then shows: 9602 The code 9602 corresponds to selecting the function to lower the mA output.

  • Page 37: Trim Display

    TX180 Temperature Transmitter Trimming of the 20.0mA current limit is done in exactly the same manner as was described for trimming the 4.0mA point. Similarly the same precautions apply. The code 9701 corresponds to selecting the function to raising the mA output. The code 9702 corresponds to selecting the function to lower the mA output.
  • Page 38 the 9802 code corresponds to a negative number to be selected for the display trim point. After deciding whether the display trim value is to remain positive (PLUS), or negative (MINUS) press the ENTER key. In this example assume it is to be a negative offset. The display changes to - 0 00 and the leftmost digit position will start blinking (shown here in italics) asking if the hundreds position needs to be changed.
  • Page 39 TX180 Temperature Transmitter code 9000. Note again, that whenever the transmitter is in the display set-up mode, if no activation of the keyboard occurs for approximately 2-1/2 minutes, the transmitter returns to the operate mode. One can also return to the operate mode at any point in the DISPLAY MODE by removing power from the transmitter for about 10 seconds and then reapplying power: NOTE: Pressing ENTER stores new values in transmitter.

  • Page 40: Figure 8, Li-1 One-Line Display/Keypad Flowchart

    Fig. 8 Dynisco TX180/ITX190 Configuration Flowchart LI-2 One-Line Display/Keypad...

  • Page 41: Applications Information

    As a result of these measurements, the unit can detect an open thermocouple or open RTD condition. In addition, the TX180 can detect if an RTD is short circuited, or if any of its terminal wires (2, 3, or 4-wire RTD’s) are open. Any one of these conditions will cause a “FAIL SAFE”...
  • Page 42 Thermocouple tables are normally available for a reference junction at the ice point of water. These table entries must be adjusted for the actual cold- junction temperature. In the case of the TX180 transmitter, the cold-junctions is measured with an internal calibrated thermometer.

  • Page 43: For Best Measurement Accuracy

    EASUREMENT CCURACY The TX180 transmitter is a stable instrument, precision calibrated at the factory for any measurement range the user may select. However, the automatic cold-junction compensation requires certain precautions to obtain best accuracy when used with a thermocouple sensor.

  • Page 44: Specifications

    A variety of signal conditioners, thermocouples are also available. * The LI-1 or LI-2 can be used for setup and configuration for transmitters installed in XP-HEAD or WP-HEAD housings, but cannot be installed permanently. The XP-HEAD and WP-HEAD will not close properly with either of these displays installed.
  • Page 45 TX180 Temperature Transmitter Sensor Type Accuracy ± 0.3°C ( ± 0.5°F) E, J, K, L, N, T T/C’s ± 0.8°C ( ± 1.5°F) B, C, R, S, U T/C’s ± 0.01 mV ± 0.14°C ( ± 0.25°F) Pt RTD ± 0.14°C ( ± 0.25°F) Pt SAMA ±...
  • Page 46 AUTOMATIC DIAGNOSTICS: Every 3 seconds the TX180 transmitter performs self-checks for zero, span, cold-junction temperature, open T/C, open RTD element, shorted RTD element, each open RTD lead and transmitter malfunction. FAILSAFE: User settable from 3.6mA to 23.0mA, or OFF INTERCHANGEABILITY: All units interchangeable without field calibration.

  • Page 47: Repair

    For technical assistance please call 800-221-2201 or 508-541-9400 or fax 508-541-9436. ARRANTY This Dynisco product is warranted under terms and conditions set forth in the Dynisco Web Pages. Go to www.dynisco.com and click on “Warranty” at the bottom of any page for complete details.

  • Page 48: Figure 9, Intrinsically Safe Installation Drawing

    Fig. 9 TX 180 1/S, ITX 190 I/S, XP-FNI, XP-FGI Factory Mutual and Canadian Standards Assoc. Approved Intrinsically Safe Installation Control Drawing NOTES: 1) The electrical circuit in the hazardous area must be capable of withstanding an A.C. test voltage of 500 volts R.M.S.
  • Page 49 TX180 Temperature Transmitter 5) Temp. Code T4 at maximum ambient temperature of 85°C T6 at maximum ambient temperature of 40° C 6) Dust-tight conduit seal must be used when installed in Class II and III Environments. NO REVISIONS WITHOUT PRIOR FACTORY MUTUAL OR CANADIAN STANDARDS...
  • Page 50 OTES...
  • Page 51 CITY _____________________________ STATE _____________ ZIP __________________ COUNTRY _____________________________________________________________________ TELEPHONE _____________________________ FAX ________________________________ My application is _______________________________________________________________ Is this your first purchase from Dynisco? YES __________ NO __________ How did you first hear of Dynisco? ADVERTISING ________ REP __________ PREVIOUS USE ___________ COLLEAGUE _____________ DIRECTORY ______________...
  • Page 52 Place Stamp Here DYNISCO INSTRUMENTS 38 FORGE PARKWAY FRANKLIN, MA 02038 ATTN: MARKETING DEPT.
