Dynisco SPX228 Operating Manual

Spx series, smart industrial pressure transmitters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
From lab to production,
providing a window into the process
SPX Product Family
Smart Industrial Pressure Transmitters
Intrinsically safe and Explosion-proof
pressure transmitters with integrated amplifier
for use in hazardous environments
Operating Manual
P/N: 974153 | Rev: 072016
|
ECO: 46503
www.dynisco.com
-1-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPX228 and is the answer not in the manual?

Questions and answers

Related Manuals for Dynisco SPX228

Summary of Contents for Dynisco SPX228

  • Page 1 From lab to production, providing a window into the process SPX Product Family Smart Industrial Pressure Transmitters Intrinsically safe and Explosion-proof pressure transmitters with integrated amplifier for use in hazardous environments Operating Manual P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com...
  • Page 2 From lab to production, providing a window into the process DYNISCO SPX QUICK START CARD This Quick Start Setup guide can be used by experienced instrumentation technicians to configure the Transmitter using the Zero and Span actuators or via the optional HART Communications. For more detailed information please consult the complete manual before operating.
  • Page 3 Set URV (Quick Key 1, 3, 3, 2) if output turndown (rescaling), is required d. Perform Zero Trim (Quick Key 1, 2, 5, 1, 3, 1) 5. Verify loop output is zero (4mA). Remove HART Communicator from loop. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com...

  • Page 4: Menu Tree

    9 Dev id 3 Software rev Process vars/crnt NOTE: Above is the Menu Tree for the latest Device Descriptor. For units with software revision < 100 refer to Appendix 2 for appropriate Menu Tree. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com...

  • Page 5: Table Of Contents

    TROUBLESHOOTING ..............36 APPROVALS/CERTIFICATES ............37 APPENDIX 1 - DEFAULT VALUES ..........41 APPENDIX 2 – Menu Tree (Software Revision < 100) ....52 DRAWINGS…………… ..............53 DYNISCO CONTACT INFORMATION .......... 56 P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com...

  • Page 6: General

    This applies in particular to the notes on safety. Following the safety instructions will help to prevent accidents, defects and malfunctions. DYNISCO will not be held liable for any injury, loss or damage resulting from failure to follow the instructions in this manual.
  • Page 7 Related to ATEX/Intrinsic Safety requirements Related to Factory Mutual Approval requirements Related to Safety Integrity and Performance Level Applications The safety instructions are provided again in the individual sections of the manual. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com...
  • Page 8 Lower Range Value Pressure Transmitter Primary Variable (Pressure) Secondary Variable (Electronics Temperature) Upper Range Value Watchdog An internal monitor for the electronics NAMING CONVENTION SPX Industrial Smart Pressure Transmitters (228 & 538 Series) P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com...
  • Page 9 (D/A) converter which modulates the current of the unit’s power supply between 4 and 20 mA for an output current proportional to the applied pressure. Figure 1-1 Block Diagram of Operation P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com...
  • Page 10 EN 60079-25 Special Requirements for Group II Category 1G USER’S OBLIGATIONS The operator or owner of the larger overall system, e.g. a machine, is responsible for following the safety and accident prevention regulations that apply to the specific application. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -10-...

  • Page 11: Notes On Safety

    The operator or owner of the larger overall system is responsible for following the safety and accident prevention regulations that apply to the specific application. DYNISCO will not be held liable for any injury, loss or damage resulting from failure to follow the instructions in this manual.
  • Page 12 After installation before operating the device the user must check that the complete surface installation and wiring is intrinsically safe. Care must be taken that the power source is a certified apparatus. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -12-...
  • Page 13 2) Transmitter push-button seal screws must be fully engaged to meet Explosion-proof requirements. 3) Before connecting a HART handheld communicator in an explosive atmosphere, make sure the instruments in the loop are installed in accordance with intrinsically safe or non-incendive field wiring practices. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -13-...
  • Page 14 It is the user’s responsibility to connect this relay to the system in such a way that when this relay opens, it brings the system to a safe state. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -14-...
  • Page 15 • Have a good knowledge of the generic and specialist standards applicable to the specific application Connecting Safety Relay Relay specs: Maximum switching voltage: 200Vdc; Maximum switching current: 0.5A Device pinout P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -15-...

  • Page 16: Technical Data

    5) Other approved ranges may exist, please consult factory. 6) Transmitters are available with certain approved option codes. Please consult factory for list of approved options. SAFETY SPECIFICATIONS Please see “Notes on Safety” (Chapter 2.) P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -16-...
  • Page 17 500-3,000 psi 5 x range 5,000 – 10,000 psi 3 x range 15,000 – 30,000 psi 2.5 x range 40,000 – 60,000 psi 1.5 x range 3.4.6 FREQUENCY RESONSE 20 Hz [-3db] P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -17-...
  • Page 18 Sense Resistor Load Line 250 ohms minimum for HART communication TEMPERATURE INFLUENCE ELECTRONICS HOUSING Operating Temperature Range -29°C to +85°C Compensated Temperature Range -17°C to +65°C P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -18-...
  • Page 19 3.10 WEIGHT The weight varies depending on product configuration. Average weight range is 1 to 3 pounds. 3.11 DIMENSIONS The dimensions vary based on product configurations. Contact Dynisco if product dimensions are required. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com...

  • Page 20: Transport/Delivery

    • Do not let the SPX be damaged by other items during transit • Use only the original packaging • Report transport damage to DYNISCO immediately in writing STORAGE • Store the SPX in original packaging only • Protect against dust and moisture SCOPE OF DELIVERY •...

  • Page 21: Installation

    Connect power to the transmitter. For conduit output configuration, Red wire is Sig+/Exc +, Black wire is Sig-/Exc-, Green wire is Ground. For a 6 pin connector version, Pin A is Sig+/Exc+ and pin B is Sig-/Exc-. Insure proper loop supply voltage is applied to transmitter. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -21-...
  • Page 22 If the transmitter is installed in hazardous areas, only passive devices like switches or resistors may be connected between the RCAL+ and RCAL- signals. Connection of any active electronic circuits or voltage or current source is not allowed. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -22-...

  • Page 23: Commissioning

    There are some other effects that may affect the zero as well, such as torque, side loading, etc. For more information contact Dynisco. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com...
  • Page 24 Using a 2mm or smaller Allen key, depress the pushbutton for a ½ second. iv. Release pushbutton for a ½ second. v. Depress the pushbutton again for a ½ second and release. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -24-...
  • Page 25 HART Communicator. When complete, the transmitter electronics will have adjusted the digital PV to correct to full scale output. ATTENTION Never perform upper sensor trim without performing lower sensor trim first. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -25-...
  • Page 26 1. Connect Power Supply and HART Communicator per the above diagram. 2. If commissioning on the bench with a dead weight tester or calibrated pressure source, insure pressure connection is free of leaks. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -26-...
  • Page 27 Using the HART communicator, the specific condition that triggered the fail-safe mode alarm can be read for diagnostic purposes (see Status in the HART menu tree). P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -27-...
  • Page 28 ALARM & SATURATION VALUES IN MULTIDROP MODE If the device is in multidrop mode, the NAMUR levels are no longer achievable. Instead the fail safe condition is indicated by the field device status and the additional diagnostics. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -28-...
  • Page 29 After Rezeroing, it is possible to set the span by adjusting the URV with the span actuator. The span actuator should never be used to adjust the URV without using the zero actuator to set the LRV first. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -29-...
  • Page 30 Damping is off by default but values between 0 and 30 seconds can be set using the handheld communicator. The damping value must be entered in integers. If non-integers are entered, the system rounds to the next integer. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -30-...
  • Page 31 Use in Multidrop mode allows more than one transmitter (up to 15) on a single loop. If this value is other than zero, the transmitter is in Multidrop mode. An example of Multidrop mode would be a P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -31-...
  • Page 32 Using a 2mm or smaller Allen key, depress the pushbuttons for a ½ second. Release pushbuttons for a ½ second. Depress the pushbuttons again for a ½ second and release. At this point, the LRV and URV will be set to factory defaults. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -32-...
  • Page 33 7. Restore the Address to Zero. 8. Restore the Rcal option to its value at shipment (enable or disable the Rcal option). 9. Set actuators to the settings they were when shipped from DYNISCO. 6.11 HART COMMUNICATOR FAST KEY SEQUENCES Below defines the HART Communicator Fast Key sequences.
  • Page 34 Read Peak Temp Value (TV) 1,2,3,4 Perform D/A Trim (TV) 1,2,5,2,2 Set Lower Range Value (LRV) (TV) 1,3,3,3 Set Upper Range Value (URV) (TV) 1,3,3,4 Temperature Override 1,2,5,2,1,1 Temperature Override Value 1,2,5,2,1,2 P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -34-...

  • Page 35: Maintenance

    The SPX Series Dynisco Pressure transmitters will provide excellent service and superior performance if proper care is taken during handling, installation, and use. This DYNISCO product is warranted under terms and conditions set forth in the DYNISCO web pages. Go to www.dynisco.com...
  • Page 36 From the Communicator’s Main Menu, Access the On-Line Features Described in Manual Menu. The Name SPX Should be Displayed on the Top Line of the LCD. If the Name is not Present, Contact Dynisco to Arrange for DD Upgrade Primary output =3.6mA or > 21mA...

  • Page 37: Approvals/Certificates

    CE DECLARATION OF CONFORMITY ..................388 EC-TYPE EXAMINATION CERTIFICATE ................. 400 EX FM CERTIFICATE OF COMPLIANCE ................. 445 SAFETY INTEGRITY AND PERFORMANCE LEVEL APPLICATION …………………………………………409 Note additional approvals available; please consult factory. P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -37-...

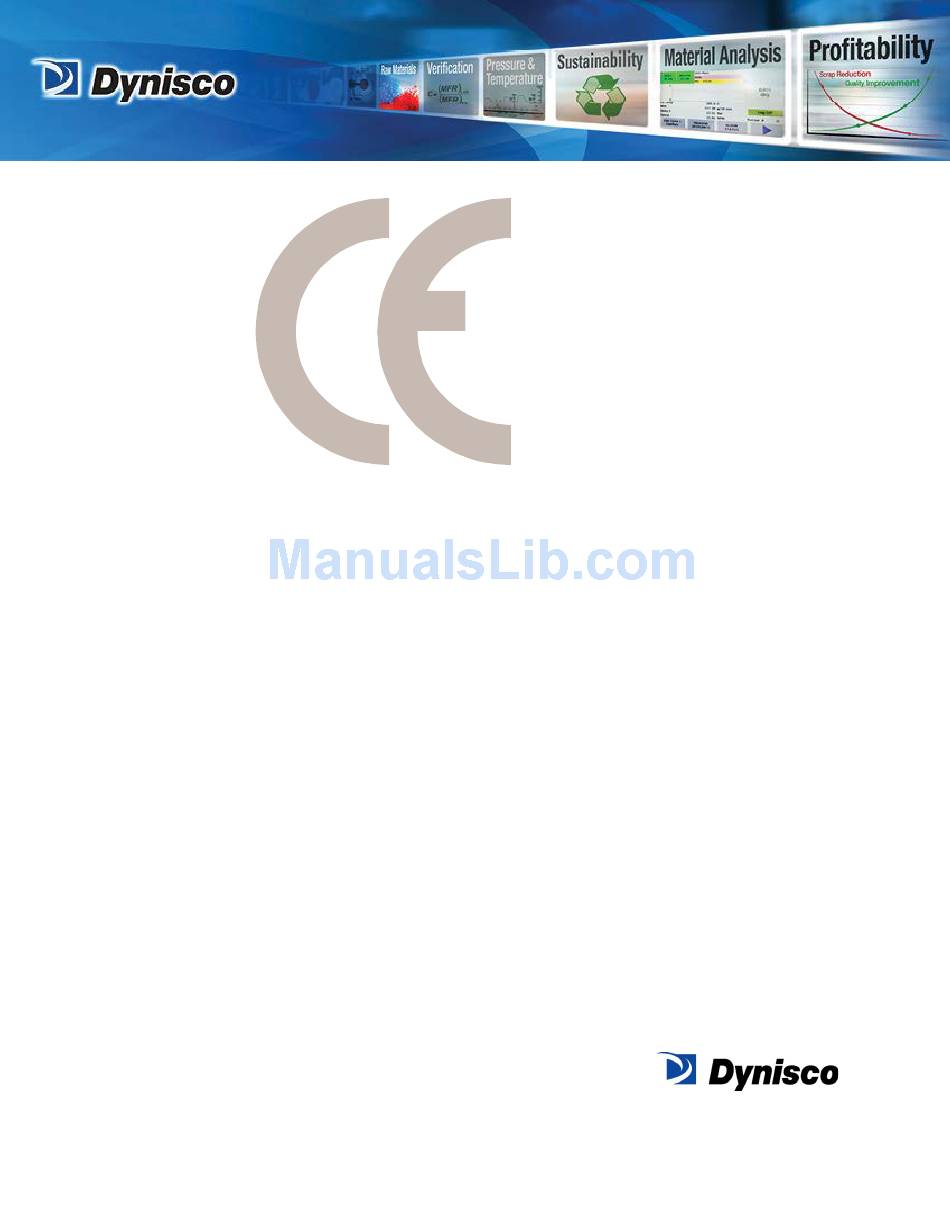

  • Page 38 From lab to production, providing a window into the process CE DECLARATION OF CONFORMITY P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -38-...
  • Page 39 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -39-...
  • Page 40 From lab to production, providing a window into the process EC-TYPE EXAMINATION CERTIFICATE P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -40-...
  • Page 41 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -41-...
  • Page 42 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -42-...
  • Page 43 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -43-...
  • Page 44 From lab to production, providing a window into the process EX FM CERTIFICATE OF COMPLIANCE P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -44-...
  • Page 45 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -45-...
  • Page 46 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -46-...
  • Page 47 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -47-...
  • Page 48 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -48-...
  • Page 49 From lab to production, providing a window into the process Safety Integrity and Performance Level Applications P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -49-...
  • Page 50 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -50-...

  • Page 51: Appendix 1 - Default Values

    Enable Enabled Disabled Factory Default LRV Lower Sensor Limit -0.04 * full scale of SPX-T Message Text HTTP://WWW.DYNISCO.COM/ PV Minimum Span Value Factory Default PV_URV divided by 5 Number of Request Preambles PV Damping Constant Value 0 Seconds 0-30 PV Lower Range Value...

  • Page 52: Appendix 2 - Menu Tree (Software Revision < 100)

    From lab to production, providing a window into the process APPENDIX 2 – Menu Tree (Software Revision < 100) Menu Tree for software revision < 100 P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -52-...
  • Page 53 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -53-...
  • Page 54 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -54-...
  • Page 55 From lab to production, providing a window into the process P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -55-...

  • Page 56: Dynisco Contact Information

    From lab to production, providing a window into the process DYNISCO CONTACT INFORMATION Please visit our website for up to date contact information: www.dynisco.com/contact P/N: 974153 | Rev: 072016 ECO: 46503 www.dynisco.com -56-...
