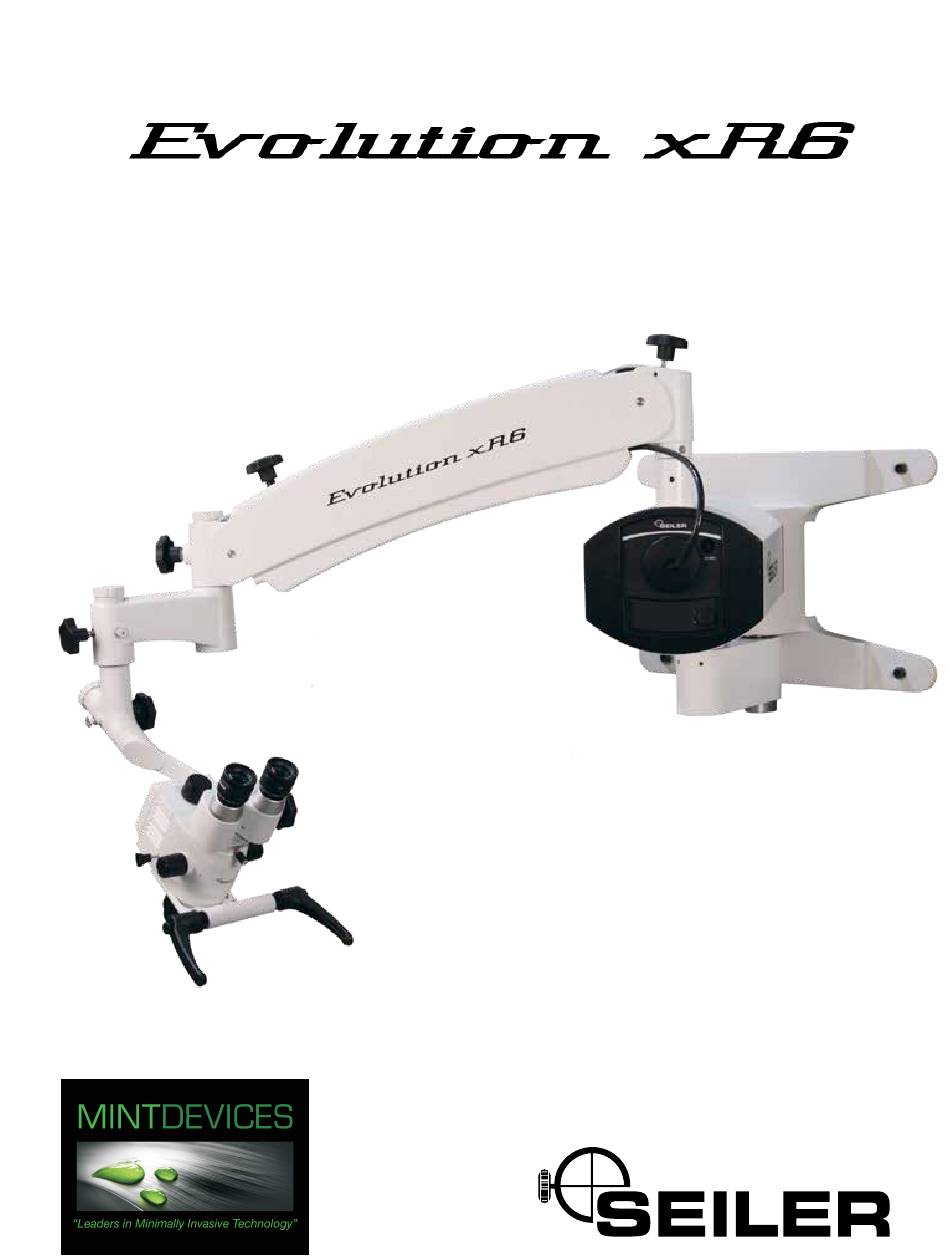

- Page 1 Wall Mounted Model Installation Instructions MEDICAL DIVISION...
- Page 2 1) Determine suitable location: Wall next to doctor, wall behind doctor, etc. at a distance no greater than 50” and no less than 30” from the wall to the patients mouth. 2) Position the wall bracket with the threaded opening facing down and with the lower mounting holes 50” above the floor.
- Page 4 Positioning High Wall and Ceiling Recommended Mounting Location SECONDARY MOUNTING ZONE 60” PREFERRED 48” MOUNTING ZONE 36” 36” PATIENT ENTRY SIDE OF CHAIR/ TYPICAL MOUNTING TABLE LOCATION (LEAST USED SIDE OF ROOM) NOTE: If the typical position is not available, locating the microscope within the Preferred Mounting Zone (vertically shaded) will ensure that there is maximum maneuverability of the microscope in all directions.
- Page 6 Seiler Precision Microscopes does not supply screws for mounting wall brackets. The type of screws and/or anchors to be used should be determined by a qualified contractor. If mounting to a metal studded wall, there needs to be backing such as plywood mounted to each side of the wall and the screws to attach the wall brack- et to through both pieces of plywood, the entire thickness of the wall so it is structurally sound.
- Page 7 MEDICAL DIVISION We are here to serve you! If you have any questions regarding Seiler’s products or services, please feel free to contact us. info@seilermicroscopes.com.au www.seilermicroscopes.com.au www.mintdevices.com.au Mint Devices (Australia) Pty Ltd PO Box 290 Potts Point NSW 2011 info@mintdevices.com.au www.mintdevices.com.au...
