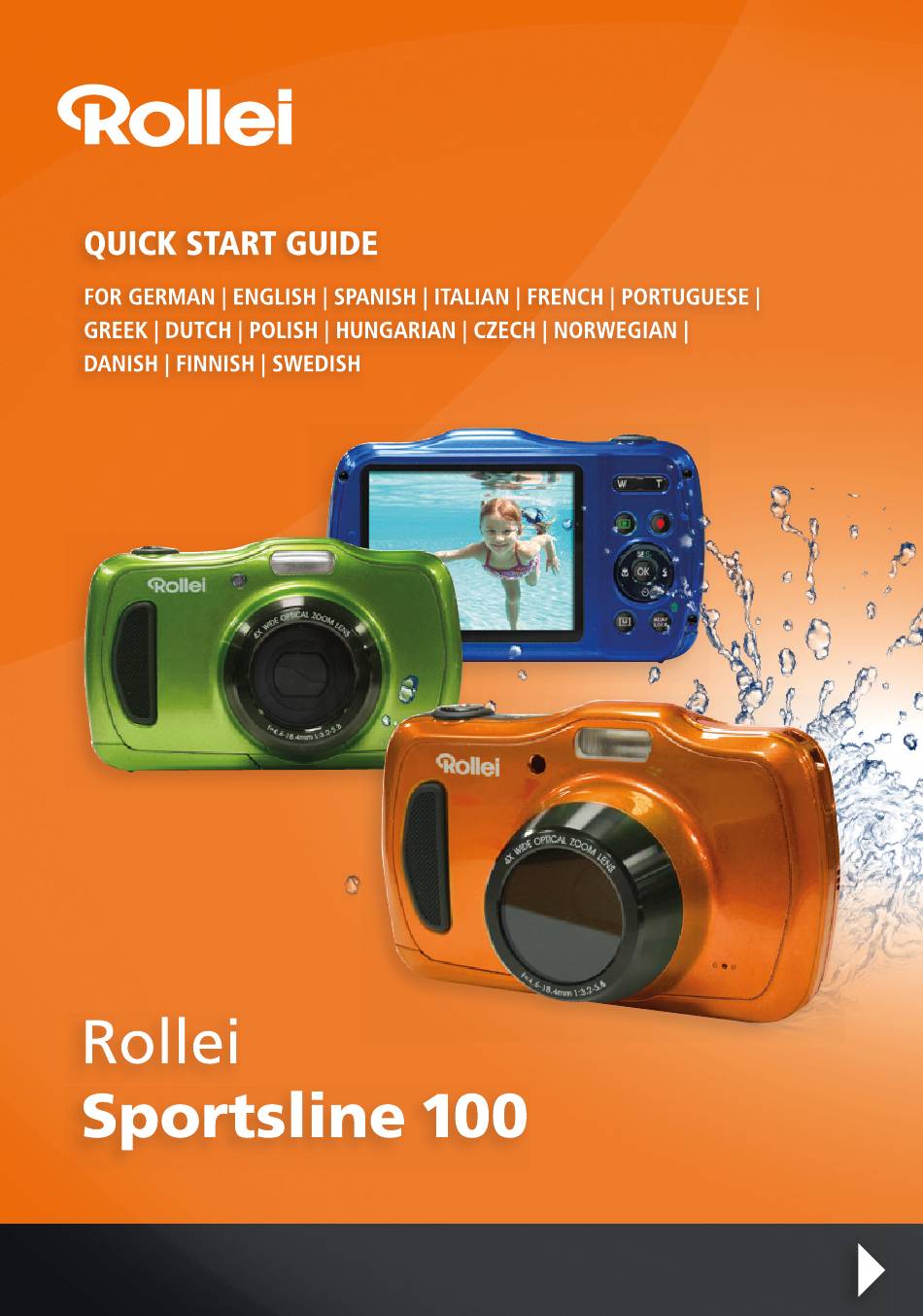

Rollei Sportsline 100 Quick Start Manual
  1. Manuals
  2. Brands
  3. Rollei Manuals
  4. Digital Camera
  5. Sportsline 100
  6. Quick start manual

Rollei Sportsline 100 Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Rollei Sportsline 100

Summary of Contents for Rollei Sportsline 100

  • Page 2: Camera Views

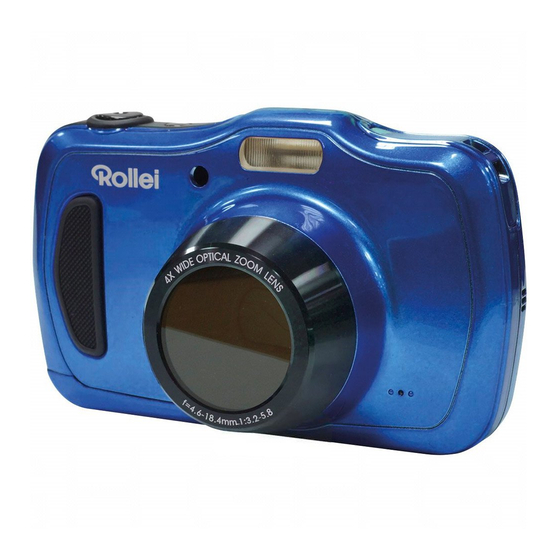

    Quick Start Guide ENGLISH Camera Views Shutter button Power button Self-timer LED/ AF Assist Lamp LED indicator light Flash Strap ring Speaker Lens Microphone 10. LCD monitor 11. Zoom button 12. Strap ring 13. Playback button 14. Movie button 15. OK button/4-way navigation control 16.

  • Page 3: Step 1. Inserting The Battery

    18. Battery/Memory card compartment 19. USB/TV Out 20. Tripod screw hole Step 1. Inserting the Battery 1. Unlock and open the battery/memory card compartment at the bottom of the camera. 2. Insert the battery into the compartment with the terminal facing inside the camera with battery downward side facing upwards.

  • Page 4: Step 2. Inserting An Sd/Sdhc/Sdxc Memory Card

    3. Close the battery/memory card compartment, and the cover latch is buckled automatically. To ensure the water resistance, please pull down the cover latch (as illustrated) to lock the battery cover before using under water. Battery - Back Battery - Front Step 2.

  • Page 5: Step 3. Charging The Battery By Usb

    Step 3. Charging the Battery by USB 1. Connect the camera with the USB cable as shown. 2. Connect the other end with the USB adapter and plug it into a power outlet or with the USB port of PC directly for charging. •...

  • Page 6: Step 5. Taking Images

    Step 5. Taking Images 1. Turn on the camera by pressing the Power button. 2. Frame the shot using the focus bracket on the LCD monitor. See illustration on the right. 3. Pressing the Shutter button down halfway automatically focuses and adjusts the exposure, and pressing the Shutter button down fully captures the images.

  • Page 7: Step 8. Using The Setup Menu

    Step 8. Using the Setup Menu 1. Press Menu button to launch the Record/Playback Menu. 2. Use the keys to switch the menu tab to Setup menu. 3. Use the keys to move through the menu selections. 4. Press the OK button to save and apply settings.
  • Page 8 Internal memory: 64MB flash memory Storage External memory: SD (up to 4GB), SDHC card (up to 32GB guaranteed), SDXC card (up to 64GB guaranteed) Battery Li-ion battery: NP45 (3.7V 700mAh) Operating 0ºC - 40ºC Temperature Operating 0% - 90% Humidity Dimensions 107.5 x 66.15 x 50.45 (mm) (with the lens mounting ring) 162 g (no battery)
