P A R T N A M E S

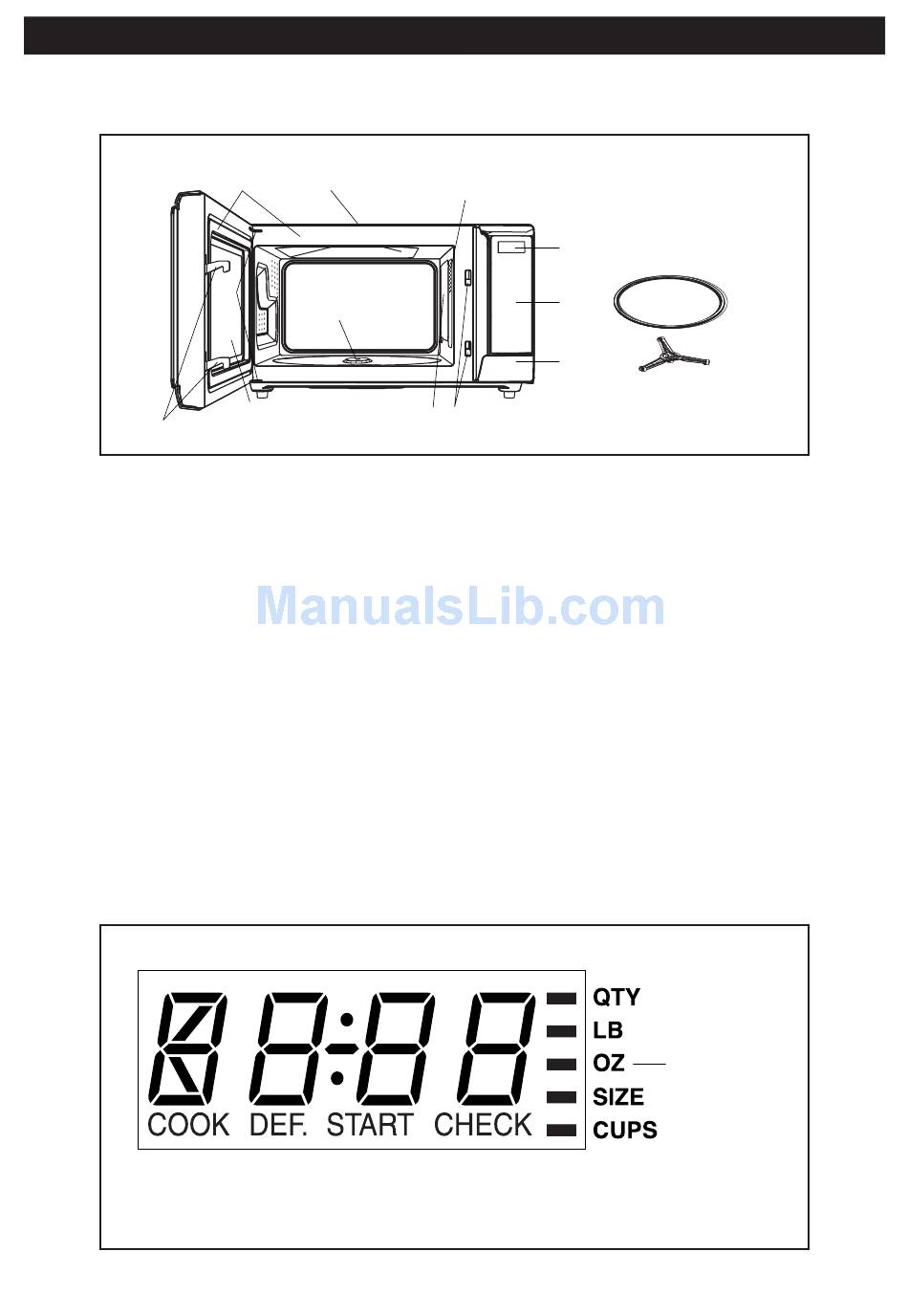

MICROWAVE OVEN PARTS
3
1 Door opening button
Push to open door.
2 Oven door with see-through window
3 Safety door latches
The oven will not operate unless the
door is securely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable support in
the center of the oven floor.
DISPLAY
The indicators on the right side of the display will inform you what information must be
entered to complete programming the desired setting.
Words in the lower portion of the display will light to indicate what function is in process.
5 9
4
6
2
10
13
12
1
11 3
8 Removable turntable
Place the turntable on the turntable
support securely. The turntable will
rotate clockwise or counterclockwise.
Only remove for cleaning.
9 Ventilation openings (Rear)
10 Oven light
It will light when oven is operating or
door is open.
11 Waveguide cover: DO NOT REMOVE.
12 Auto-Touch control panel
13 Time display: 99 minutes, 99 seconds
7
8
7
Indicators
