WHERE THERE'S PIPE, THERE'S MATHEY
MODEL # __________________
QUIK-FIT
Parts and Operating Manual
Mailing Address: Po Box 472110 Tulsa, Ok 74147-2110 USA
Shipping Address: 4344 S. Maybelle Ave. Tulsa, OK 74107 USA
Phone: (918) 447-1288 Fax: (918) 447-0188 Email:
sales@mathey.com
Revised: October 2012
Advertisement
Table of Contents
Related Manuals for Mathey Dearman Quik-Fit QFC-12
Summary of Contents for Mathey Dearman Quik-Fit QFC-12

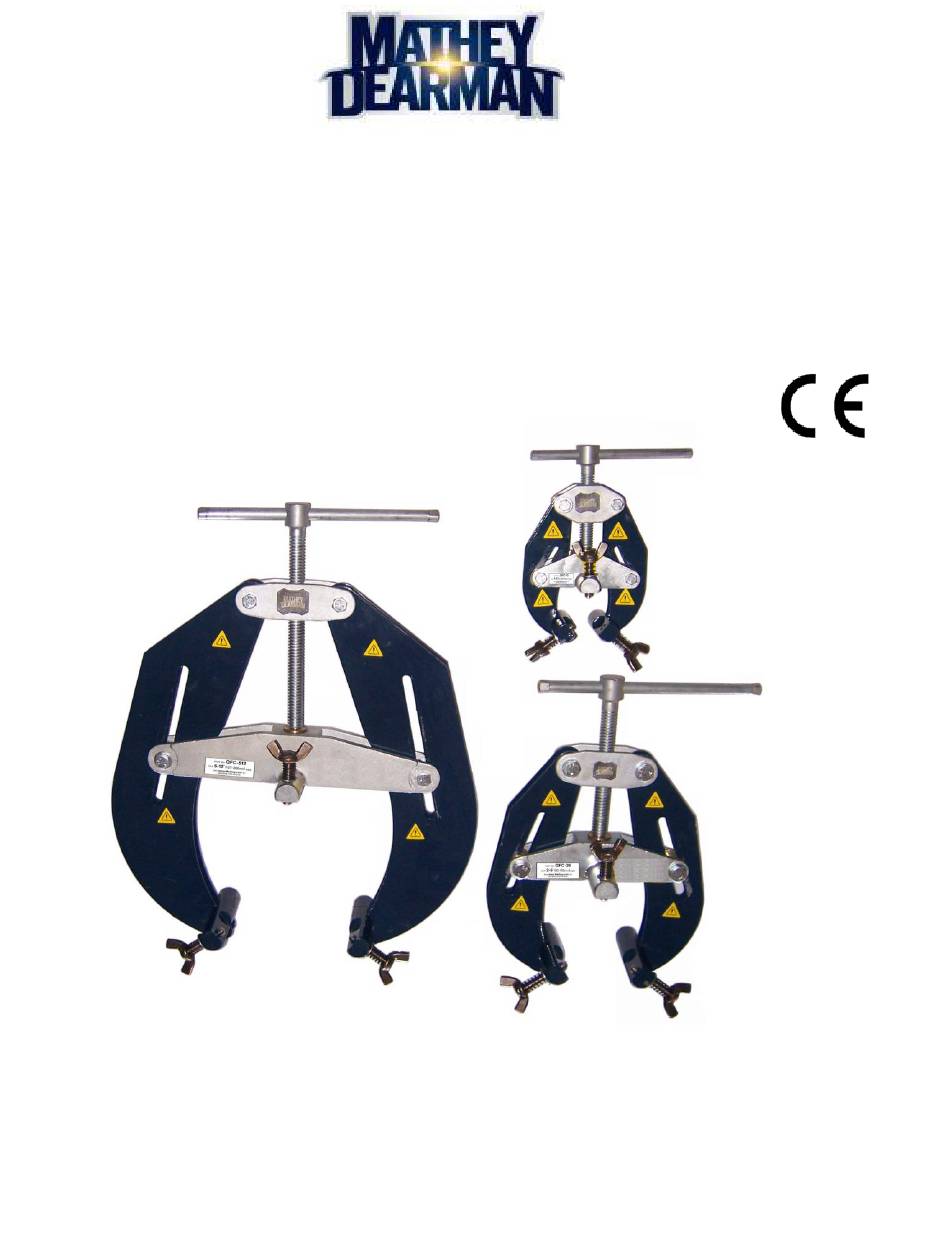

- Page 1 WHERE THERE’S PIPE, THERE’S MATHEY MODEL # __________________ QUIK-FIT Parts and Operating Manual Mailing Address: Po Box 472110 Tulsa, Ok 74147-2110 USA Shipping Address: 4344 S. Maybelle Ave. Tulsa, OK 74107 USA Phone: (918) 447-1288 Fax: (918) 447-0188 Email: sales@mathey.com Revised: October 2012...
- Page 2 Clear the general area where the QUIK-Fit Clamp will be used of all trip hazards. The Mathey Dearman QUIK-Fit Clamp is not intended to lift the pipe. Never use the QUIK-Fit clamp as a ground for a plasma or welding systems ...
- Page 3 Model Pipe Clamping Range Shipping Dimensions Shipping Weight In / mm In // mm Lbs. / Kg QFC-12 1” – 2” / 25 - 64 8-1/2 x 7 x 4 // 216 x 178 x 102 4 / 1.8 QFC-26 2 ”...
- Page 4 Step 8. Slide the clamp forward so the mid-point of the weld joint is centered between wingscrew assembly and the back of the notch in the alignment bar. Step 9. Rotate the T handle assembly clockwise until the clamp is tight on the pipe. WARNING: Do not place hand or finger between the left or right frame assembly and the pipe.
