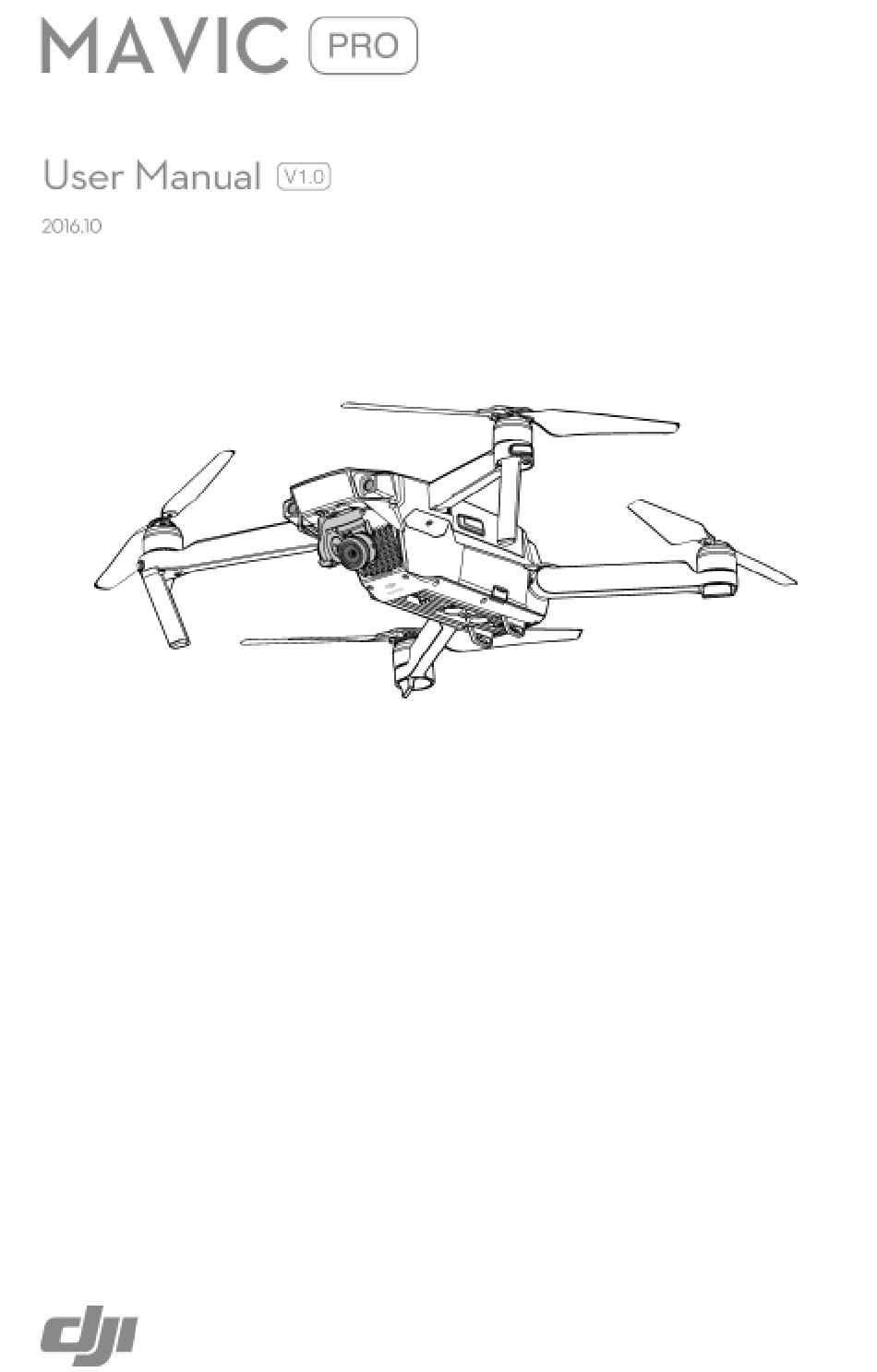

  • Page 2: Using This Manual

    Disclaimer User Manual for more details. Video Tutorials Please watch the tutorial videos at the link below, which demonstrates how to use Mavic Pro safely: http://www.dji.com/mavic Download the DJI GO App Download and install the DJI GO app before using the aircraft.

  • Page 3: Table Of Contents

    Contents Using this manual Legends Read Before the First Flight Video Tutorials Download the DJI GO App Download the DJI Assistant 2 Introduction Features Highlights Preparing the Mavic Pro Aircraft Diagram Remote Controller Diagram Aircraft Flight Mode Flight Status Indicator...
  • Page 4 Flight Limits and No-Fly Zones Calibrating the Compass Auto Takeoff and Auto Landing Starting/Stopping the Motors Flight Test Appendix Firmwares Update Intelligent Flight Mode Remote Controller LCD Screen Menu Information After-Sales Information Compliance Information © 2016 DJI All Rights Reserved.
  • Page 5 This section introduces the Mavic Pro and lists the components of the aircraft and remote controller. © 2016 DJI All Rights Reserved.

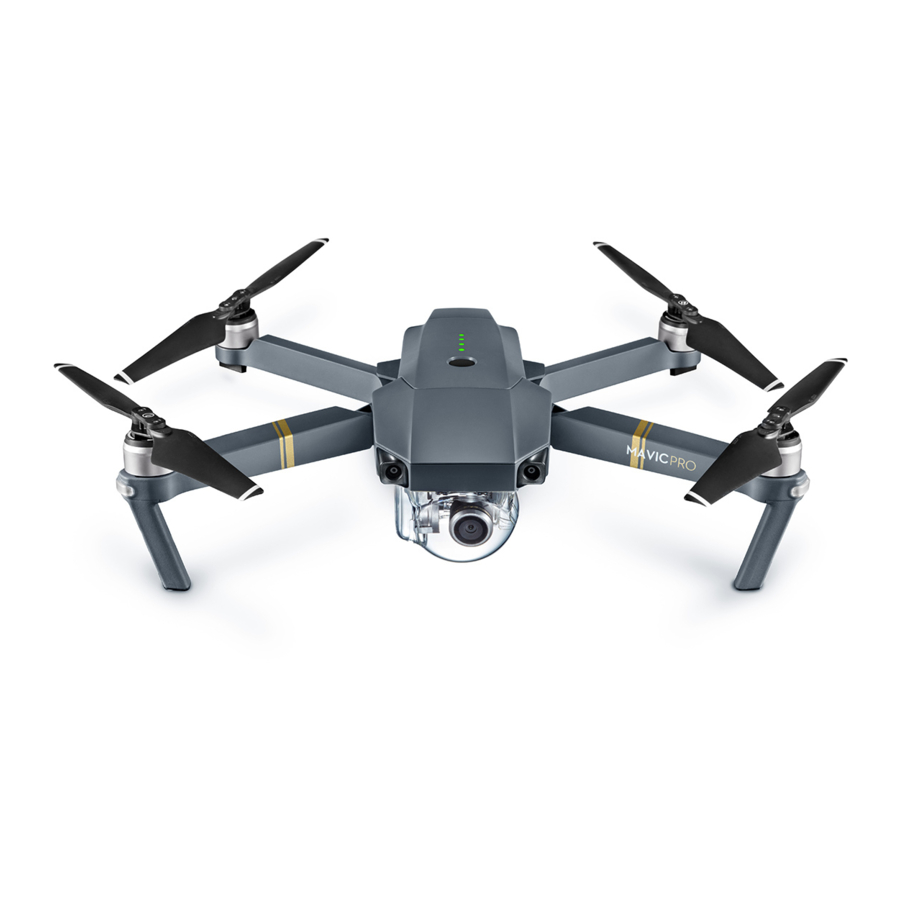

  • Page 8: Aircraft Diagram

    Mavic Pro User Manual Aircraft Diagram 1 Propeller 2 Motor 3 Front LED Indicator 4 Forward Vision System 5 Landing Gear 6 Gimbal and Camera Intelligent Flight Battery 8 Link Button 9 Linking Status Indicator 10 Camera Micro SD Card Slot...
  • Page 9 6. Flight Pause Button the remote controller. Press once for emergency breaking. 9. USB Port 7. 5D Button Connect to mobile device for running the DJI GO app. these values based on your preference in the DJI GO app. Left: Zoom In...
  • Page 10 Aircraft This section introduces the features of the Flight Controller, Forward and Down- ward Vision System, and the Intelligent Flight Battery. © 2016 DJI All Rights Reserved.

  • Page 11: Aircraft

    The Forward Vision System is disabled in S-mode (Sport), which means the aircraft will not be able to automatically avoid obstacles on its route. stick movement on the remote controller will translate into a large travel distance of the aircraft. © 2016 DJI All Rights Reserved.

  • Page 12: Flight Status Indicator

    Mavic Pro User Manual Flight Status Indicator The Mavic Pro has Front LEDs and Aircraft Status Indicator. The positions of these LEDs are shown in the Front LED Aircraft Status Indicator Front LED The Front LEDs show the orientation of the aircraft. The Front LEDs glow solid red when the aircraft is low for more information about the Aircraft Status Indicator.

  • Page 13: Return-To-Home (Rth)

    The aircraft cannot avoid obstruction during the Failsafe RTH when Forward Vision System is the DJI GO app and enter “Camera” and tap to set the Failsafe Altitude. User cannot control the aircraft while the aircraft is ascending to its failsafe altitude. However, user can press RTH button once to exit ascending and regain control.
  • Page 15 Home. When current terrain matches home point terrain, the Mavic will start landing immediately to achieve precision landing. The DJI GO app will show a terrain feature mismatch prompt if matching fails. Precision Landing performance is subject to the following conditions: b.
  • Page 16 Mavic Pro User Manual RTH Safety Notices The aircraft cannot avoid obstruction during the RTH when the Forward Vision System is disabled. Therefore, it is important to set an suitable Failsafe altitude set the Failsafe altitude. triggered and the aircraft is further than 20 meters from the home point: 1.

  • Page 21: Gesture Mode

    Mavic Pro User Manual Be extra vigilant when using ActiveTrack in any of the following situations: a The tracked subject is not moving on a level plane. b The tracked subject changes shape drastically while moving. c The tracked subject could be blocked or out of sight for a long time.

  • Page 22: Forward And Downward Vision System

    Mavic Pro User Manual Gesture Mode can only be used within Photo Mode. Fly the aircraft 2 meters or higher above the ground then move in front of the camera to be Enabling GPS on your phone will allow the Mavic to follow with more accuracy while flying in Gesture Mode.
  • Page 24 Mavic Pro User Manual Assisted Braking from Forward Vision System Powered by the Forward Vision System, the aircraft will now be able to actively initiate breaks when obstacles are detected direct ahead of the aircraft. Note that Forward and Downward Vision System works best when light condition is ideal and the obstacle does not have feature-less pattern.

  • Page 26: Intelligent Flight Battery

    Intelligent Flight Battery Introduction The DJI Intelligent Flight Battery has a capacity of 3830 mAh, a voltage of 11.4 V,and a smart charge/ discharge functionality. With its power energy compact battery cell, it provides tremendous power source for the aircraft. It should only be charged using an appropriate charger that has been approved by DJI.
  • Page 27 Mavic Pro User Manual Using the Battery LED1 LED2 Battery Level Indicators LED3 LED4 Power Button Turning ON/OFF Turning On: Press the Power Button once, then press again and hold for 2 seconds to turn on. The remote controller system status screen will display the current battery level.
  • Page 28 6. The charger will stop charging the battery if the battery cell’s temperature is not within the operating Always turn off the battery before inserting it or removing it from the Mavic Pro. Never insert or remove a battery when it is turned on.
  • Page 29 DJI does not take any responsibility for damage caused by third-party chargers. How to discharge the Intelligent Flight Battery before transport the batteries for long trip: Fly the Mavic Pro outdoors until there is less than 20% of power left, or until the battery can no longer be turned on.
  • Page 30 Remote Controller This section describes the features of the remote controller and includes instructions for controlling the aircraft and the camera. © 2016 DJI All Rights Reserved.

  • Page 31: Remote Controller

    Turning the Remote Controller On and Off The Mavic Pro remote controller is powered by a 2S rechargeable battery that has a capacity of 1. When the remote controller is turned off, press the Power Button once. The LCD Screen will display the current battery level.
  • Page 32 Mavic Pro User Manual Power Outlet Charger Controlling the Camera Shoot videos/pictures, view recorded images, and adjust camera settings via the Shutter Button, Camera Settings Dial, and Record Button on the remote controller. 1 Camera Settings Dial Turn the dial to adjust camera settings such as ISO, shutter speed, without letting go of the remote controller.
  • Page 34 S-mode (Sport) The handling gain values of the aircraft are adjusted in order to enhance the 18 m /s in this mode. Note that Forward Vision System is disabled in this mode. to Camera view in the DJI GO app, tap the icon and enable “Multiple Flight Modes.” After enabling RTH Button the last recorded Home Point.
  • Page 35 Mavic Pro User Manual Optimal Transmission Range The transmission signal between the aircraft and the remote controller is most reliable within the area that is depicted in the image below: Optimal Transmission Range strong weak performance, maintain the appropriate relationship between the operator and the aircraft.

  • Page 36: Linking The Remote Controller

    Mavic Pro User Manual Linking the Remote Controller 1. Turn on the remote controller and connect to the mobile device, and turn on the aircraft. Launch the DJI GO app. 2. Enter “Camera” and tap on and then tap “Linking RC” button.
  • Page 37 Camera and Gimbal This section provides the technical explains the gimbal’s operation modes. © 2016 DJI All Rights Reserved.

  • Page 38: Camera And Gimbal

    To ensure the stability of the camera system, single video recordings are capped at 30 minutes. Camera Data Port Turn on the Mavic Pro and connect a USB cable to the Micro USB Port to download photos and videos to your computer.

  • Page 39: Gimbal

    -90° Use the gimbal dial on the remote controller to control camera tilt, or go to Camera View in the DJI GO app, tap and hold on the screen until a blue circle appears, then drag the circle to control the camera’s tilt.

  • Page 40: Dji Go App

    DJI GO App This section introduces the main functions of the DJI GO app. © 2016 DJI All Rights Reserved.
  • Page 43 Mavic Pro User Manual 13. Auto Exposure Lock : Tap to lock the exposure value. 14. Gimbal Slider : Displays the pitch of the gimbal camera. 15. Photo/Video Button : Tap to switch between photo and video recording mode. 16. Shoot / Record Button : Tap to start shooting photos or recording video clips.

  • Page 46: Editor

    SkyPixel View and share the photos and videos in the SkyPixel page. If you already have a DJI account, you will be able to participate in forum discussions, and share your artwork with the community. © 2016 DJI All Rights Reserved.
  • Page 47 Flight © 2016 DJI All Rights Reserved.

  • Page 48: Flight

    5. Aircraft and battery performance is subject to environmental factors such as air density and temperature. performance of the battery and aircraft may be affected. 6. The Mavic Pro cannot use P-mode within the polar areas. Flight Limits and No-Fly Zones which helps users operate this product safely and legally.
  • Page 49 Fly the aircraft only within your line of sight. No-Fly Zones All No-Fly Zones are listed on the DJI official website at http://www.dji.com/flysafe/no-fly. No-Fly Zones are divided into Airports and Restricted Areas. Airports include major airports and flying countries or sensitive institute.

  • Page 51: Auto Takeoff And Auto Landing

    3. a. When Landing Protection determines that the ground is suitable for landing, the Mavic Pro will land gently. b. If Landing Protection determines that the ground is not suitable for landing, the Mavic Pro will hover c. If Landing Protection is not operational, the DJI GO app will display a landing prompt when the Mavic Pro descends below 0.5 meters.

  • Page 52: Starting/Stopping The Motors

    Stopping the Motors There are two methods to stop the motors. Method 1: When Mavic Pro has landed, push the left stick down , then conduct the same CSC that was used to start the motors, as described above . Motors will stop immediately. Release both sticks once motors stop.
  • Page 53 A low battery level warning is indicated by the Aircraft Status Indicators blinking red slowly or Video Suggestions and Tips 2. Select the desired gimbal operation mode in the DJI GO app. 5. Choose the camera settings that suit your needs. Settings include photo format and exposure compensation.
  • Page 54 Appendix © 2016 DJI All Rights Reserved.

  • Page 55: Appendix

    Downward Vision System Velocity Range Altitude Range Operating Range Operating Environment Camera 1/2.3” CMOS Effective pixels:12.35 Megapixels Sensor Lens ISO Range Electronic Shutter Speed 8 s to 1/8000 s 4000×3000 Single shot Still Photography Modes Interval © 2016 DJI All Rights Reserved.

  • Page 56: Firmwares Update

    Max. Charging Power 100 W Firmwares Update Use DJI Assistant 2 or DJI GO app to update aircraft and remote controller. Using the DJI GO App is available. To start upgrading, connect your mobile device to the Internet and follow the on-screen instructions.

  • Page 57: Intelligent Flight Mode

    2. Launch DJI Assistant 2 and login with your DJI account. 3. Select “Mavic Pro” and click on the “Firmware Updates” on the left panel. The remote controller can be connected to a computer for upgrades. Turn off the remote controller and connect the charging port to the computer, then turn on the remote controller.

  • Page 58: Remote Controller Lcd Screen Menu Information

    Compass Error. See DJI GO app for more information. BATTERY ERR+CHECK APP Battery Error. See DJI GO app for more information. SD ERR+CHECK APP Micro SD Card Error. See DJI GO app for more information. CALIBRATING IMU Calibrating/Did not restart aircraft after calibration is complete.

  • Page 59: After-Sales Information

    Control stick is not centered. Re-center it. WHEEL ERR+RE-CTR WHEL Left Dial on the remote controller is not centered. Re-center it. MECH ERR Remote Controller Error. Contact DJI support. STICK EMI+PLS RETURN Control Stick are experiencing severe electromagnetic interference. Return to home as soon as possible.
  • Page 60 Mavic Pro User Manual the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Consult the dealer or an experienced radio/TV technician for help. IC RSS warning interference, including interference that may cause undesired operation of the device.
  • Page 61 Mavic Pro User Manual © 2016 DJI All Rights Reserved.
  • Page 62 DJI Support http://www.dji.com/support This content is subject to change. Download the latest version from http://www.dji.com/mavic sending a message to DocSupport@dji.com. MAVIC is a trademark of DJI. Copyright © 2016 DJI All Rights Reserved.
