Table of Contents
- 1 Parts Included
- 2 Tools Required
- 3 Step 1: Install Foam Tape to Bezel Kit
- 4 Step 2: Prepare Wall for Install
- 5 Step 3: Mount Bezel to Wall
- 6 Step 4: Prepare In-Wall Dehumidifier for Bezel Installation
- 7 Step 5: Install In-Wall Dehumidifier to Bezel
- 8 Step 6: Install Diffuser Cover
- Download this manual

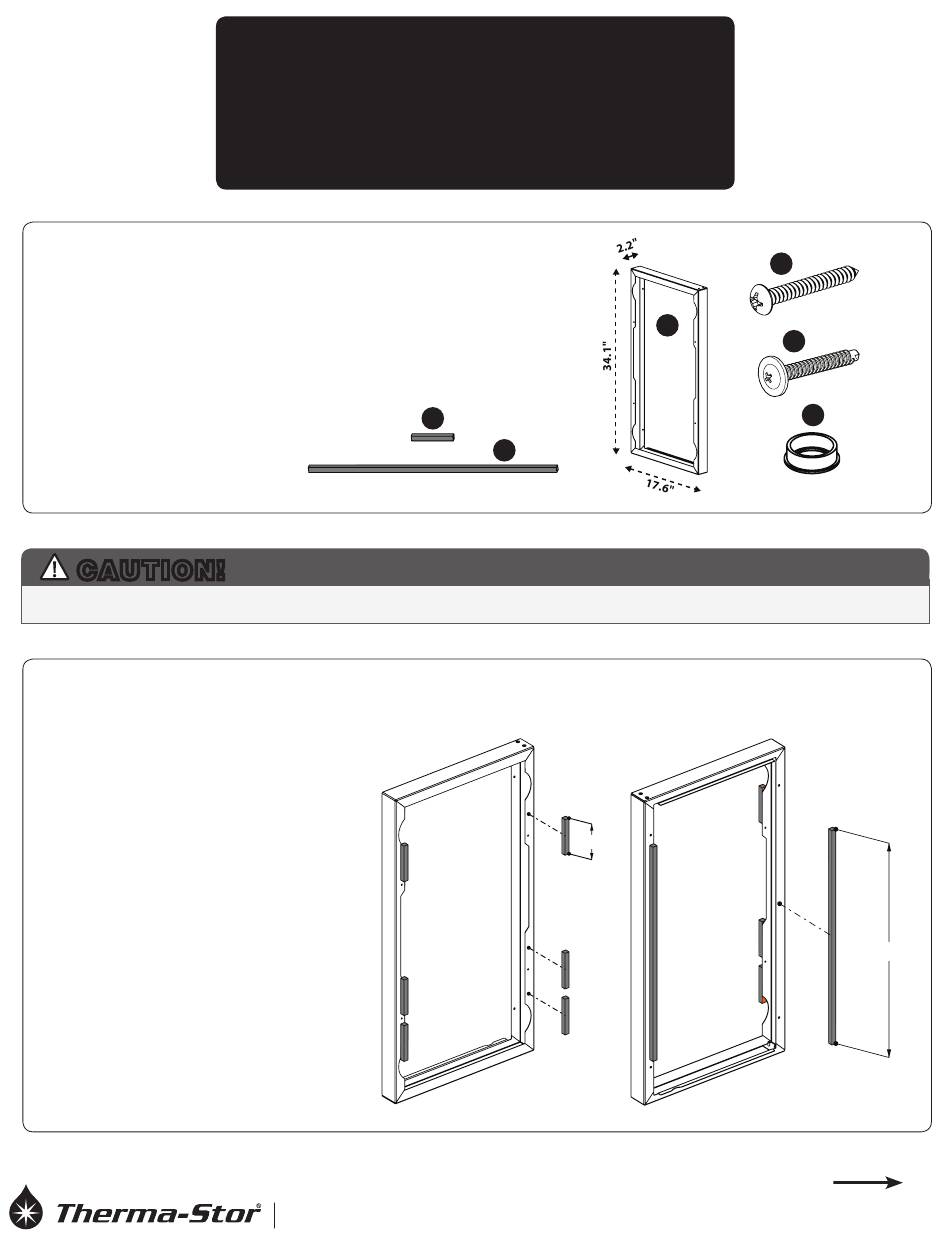

Parts Included:
1. Foam Tape - 4" Long (x6)
2. Foam Tape - 24" Long (x2)
3. Wall Bezel
4. Screw A (x5) - Pan Head, course pointed screw for wood
5. Screw B (x5) - Truss Head, self-drilling screw for metal studs
6. Plastic Grommet / Drain Hose Bushing - May not be needed
Tools Required:
• Drill / Screwdriver
• Drywall Saw
• Bit Extender (optional)
CAUTION!
TURN OFF BREAKER BEFORE INSTALLATION.
Step 1.
Install Foam Tape to Bezel Kit
Identify the front side of the bezel
kit by locating the semi-circular
cutouts along the inside edge.
Install 4" foam tape to the front
as shown. Do not cover holes
for fastening.
Install 24" foam tape to the back
as shown. Do not cover holes for
fastening.
In-Wall Dehumidifier
2x4 Wall Mounting
Bezel Kit
Part No. 4037767
FRONT
4201 Lien Rd Madison, WI 53704 • TOLL-FREE 1-800-533-7533 • www.thermastor.com • sales@thermastor.com
1
2
4"
(x5)
4
3
(x5)
5
6
BACK
CONTINUED
TS-1055 8/18 Rev D
24"
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Therma-Stor 4037767
Summary of Contents for Therma-Stor 4037767
- Page 1 In-Wall Dehumidifier 2x4 Wall Mounting Bezel Kit Part No. 4037767 Parts Included: (x5) 1. Foam Tape - 4" Long (x6) 2. Foam Tape - 24" Long (x2) 3. Wall Bezel 4. Screw A (x5) - Pan Head, course pointed screw for wood (x5) 5.
- Page 2 Step 2. Prepare Wall for Install DRAIN HOSE Cut a hole in the drywall 14.5" wide (stud to stud) and 32.75" tall. ELECTRICAL WIRE Route electrical wiring and drain ELECTRICAL WIRING hose from inside of the wall and hang outside of the hole. A minimum of 12" of electrical wiring and 20"...
- Page 3 Step 4. Prepare In-Wall Dehumidifier for Bezel Installation Punch the appropriate knock out holes for the drain hose and electrical wiring DRAIN HOSE ELECTRICAL WIRING KNOCK OUT KNOCK OUT OPTIONS on the dehumidifier. BOTTOM VIEW OF DEHUMIDIFIER Step 5. Install In-Wall Dehumidifier to Bezel Lift and support the dehumidifier by the plastic drain pan below the evaporator coil.
- Page 4 Step 6. Install Diffuser Cover Place the hooks of the front diffuser cover into the slots at the base of the dehumidifier before fastening. SECURE BOTH HOOKING LOCATIONS Locate the four holes on the diffuser cover and fasten to the dehumidifier using either Screw C (Tamper Resistant) or Screw D (Phillips Head) included with the unit.
