(Switch Front/
Button Map)

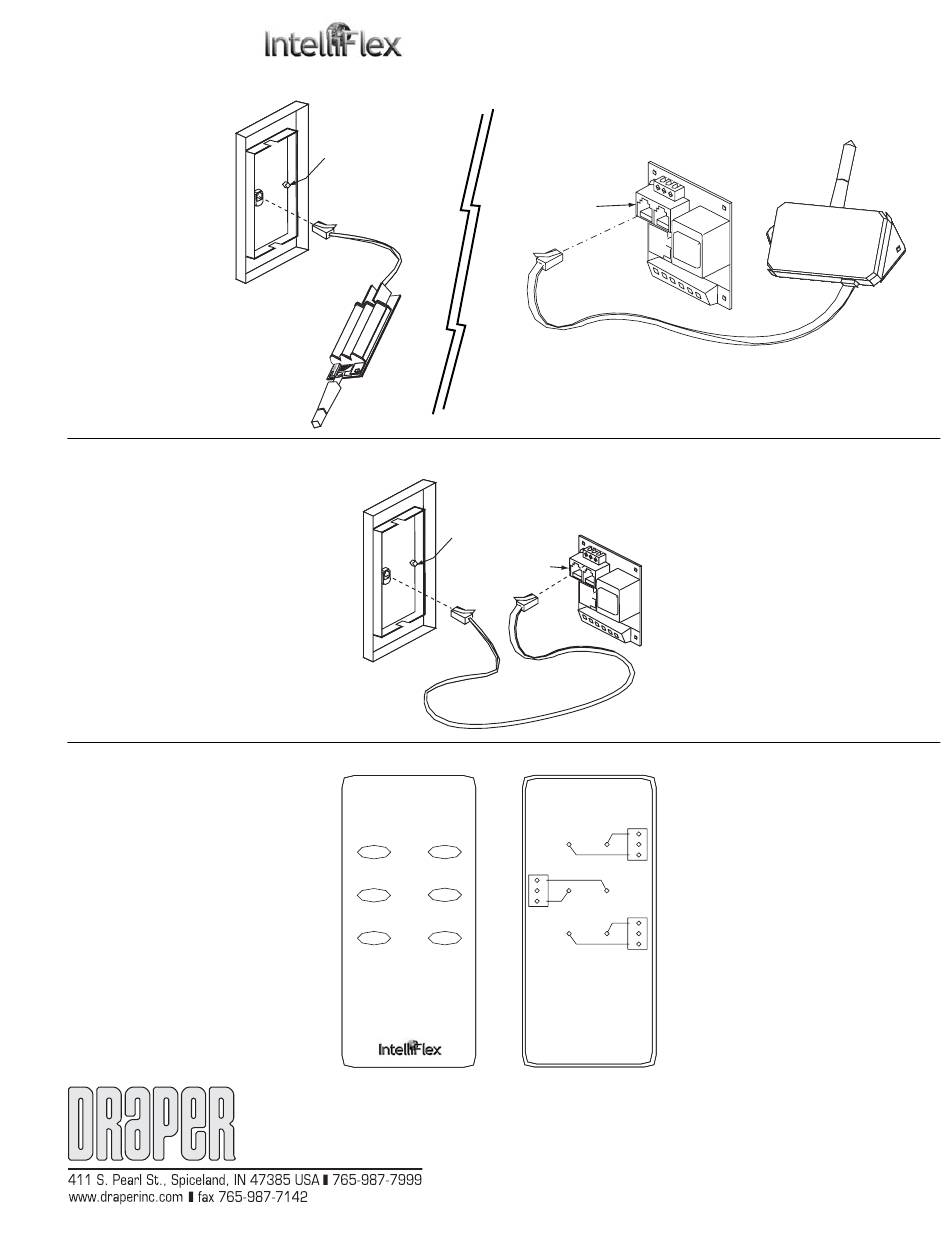

Please Note: This drawing indicates all
possible connection and button loca-
tions. Your switch may not have the same
number of buttons or connections, but
their locations will be consistent with
these "maps."
Compare your switch with these dia-
grams, and wire the buttons and connec-
tions on your switch accordingly.
Dry Contact switch is not programmable.
Dry Contact switch can be connected to
a Bus via a PSI60.
Copyright ©2007 Draper Inc. Form IntelliFlex-WallSwitch_Inst07
Installation Instructions
™
Wall Switch by Draper
RF "Bus" Wall Switch
Program
Button
"Bus" Wall Switch
Program
Button
Dry Contact Wall Switch
3
4
COM
5
6
8
7
If you encounter any diffi culty installing or ser vic ing your IntelliFlex Switch, call your
dealer or Draper, Inc., Spiceland, Indiana, (765) 987-7999; or fax (765) 987-7142.
Printed in U.S.A.
"Eye"
Jack
"Eye"
Jack
3
COM
COM
4
5
COM
6
7
COM
COM
8
Please Note: For programming
instructions, please see page 2.
(Switch Back/
Board Map)
