Draper IntelliFlex Installation Instructions

Each 24 channel IR and RF transmitter works with every channel you can
have within the IntelliFlex family of motor controls. By "Selecting" a layout, you
will be confi guring a transmitter to output a selected range of channels.
To begin the process of "Selecting" which Transmitter layout, you fi rst need
to understand the button numbering system.
This numbering system simply assigns a number to specifi c buttons,
allowing us to press specifi c buttons in the necessary order to "Select" a
layout.
OPEN CLOSE
1 1
5
2
9 3
4
13
5
17
21 6
25 7
To select a layout for 24-channel transmitter layout, follow these steps:
Button
➀
Press and HOLD
both buttons 6 & 7
➁ Continue holding buttons
6 & 7 until LED goes OFF
➂
Release both
buttons 6 & 7
➃
Press and release Flashes the layout
the "Layout" button you have just selected
you wish the Keypad
to become (see charts for
selectable layouts)
To change the "Radio" address of a 24-channel transmitter, follow these
steps:
Button Press
➀
Press and HOLD both
buttons 6 & 7
➁ Continue holding buttons
6 & 7 until LED goes OFF
➂
Release both
buttons 6 & 7
➃
Press and release LED does one quick
button 6 fl ash and goes off
®
Copyright ©2008 Draper Inc. Form IntelliFlex_IR_RF_Remote_Inst08 Printed in U.S.A.

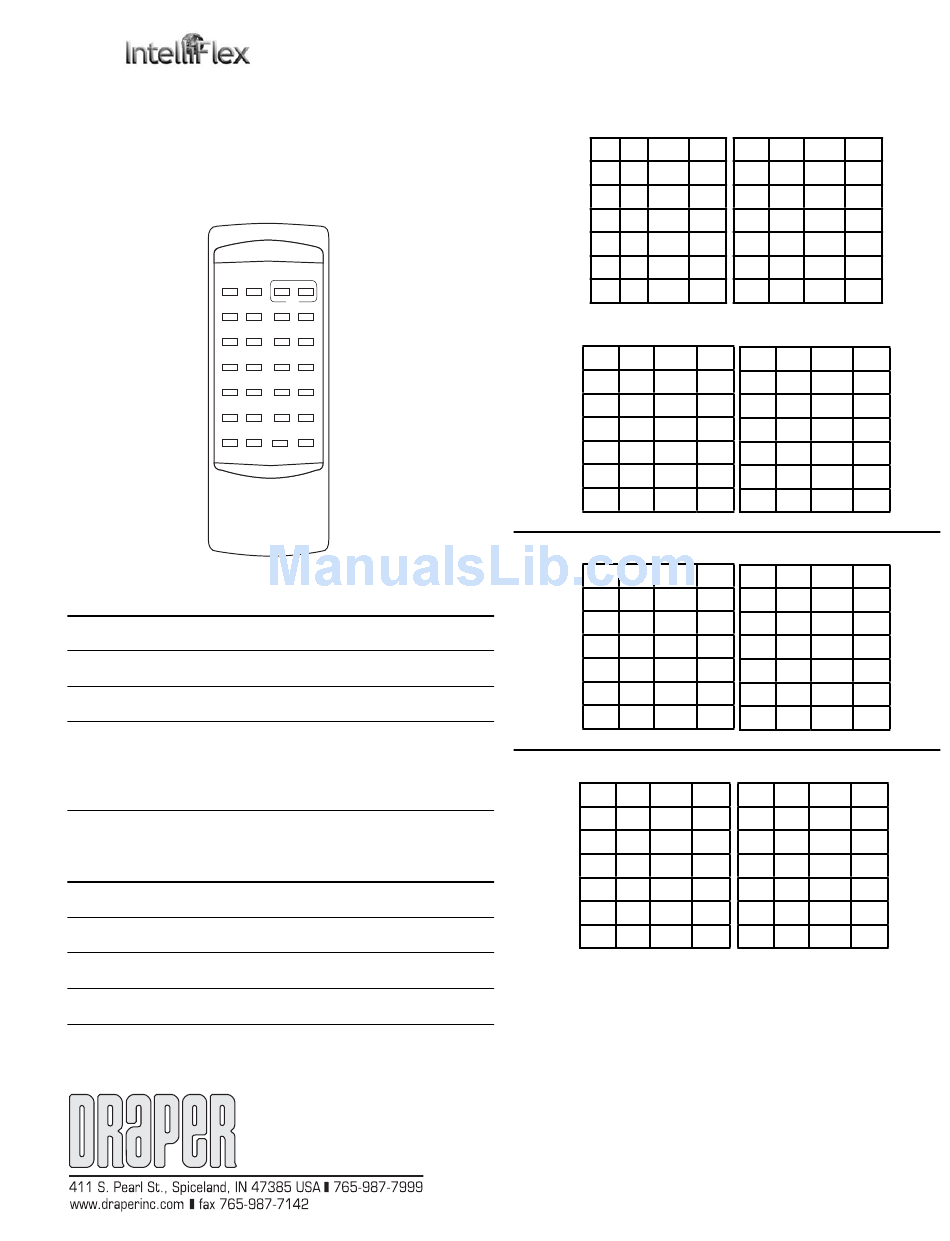

Installation Instructions

®
24 Channel IR and RF Remote Control by Draper
OPEN CLOSE
2 3 1 4
ALL
6 7
8 8
9
10 11 12
14 15 10 16
18 19 11 20
22 23 12 24
STOP
26 28
27
Press LED NOTE
ON Solid
OFF LED will not fl ash until BOTH
buttons are released in step 3
Flashing You have 4 seconds
rapidly to complete step 4
Complete
LED NOTE
ON Solid
OFF LED will not fl ash until BOTH
buttons are released in step 3
Flashing You have 4 seconds
rapidly to complete step 4
Complete
Pre-confi gured layouts (blank cells in the following tables mean button is
not used.
Layout 1 (T24 with shift: 1 thru 24)
O1 C1 OAll
O2 C2 O8
O3 C3 O9
O4 C4 O10
O5 C5 O11
O6 C6 O12
O7 C7 Shft> Stop
Layout 2 (T24 with shift: 13 thru 36)
O13 C13 OAll
O14 C14 O20
O15 C15 O21
O16 C16 O22
O17 C17 O23
O18 C18 O24
O19 C19 Shft> Stop
Layout 3 (T24 with shift: 25 thru 48)
O25 C25 OAll
O26 C26 O32
O27 C27 O33
O28 C28 O34
O29 C29 O35
O30 C30 O36
O31 C31 Shft> Stop
Layout 4 (T24 with shift: 37 thru 60)
O37 C37 OAll
O38 C38 O44
O39 C39 O45
O40 C40 O46
O41 C41 O47
O42 C42 O48
O43 C43 <Shft Stop
If you encounter any diffi culties programming your IntelliFlex IR or RF control, call
your dealer or Draper, Inc., Spiceland, Ind., (765) 987-7999 or fax (765) 987-7142.
CAll O13 C13 OAll CAll
C8 O14 C14 O20 C20
C9 O15 C15 O21 C21
C10 O16 C16 O22 C22
C11 O17 C17 O23 C23
C12 O18 C18 O24 C24
O19 C19 <Shft Stop
CAll
O25 C25 OAll CAll
C20 O26 C26 O32 C32
C21
O27 C27 O33 C33
C22
O28 C28 O34 C34
C23
O29 C29 O35 C35
C24
O30 C30 O36 C36
O31 C31 <Shft Stop
CAll
O37 C37 OAll CAll
C32
O38 C38 O44 C44
C33 O39 C39 O45 C45
C34
O40 C40 O46 C46
C35
O41 C41 O47 C47
C36
O42 C42 O48 C48
O43 C43 <Shft Stop
CAll O49 C49 OAll CAll
C44 O50 C50 O56 C56
C45 O51 C51 O57 C57
C46 O52 C52 O58 C58
C47 O53 C53 O59 C59
C48 O54 C54 O60 C60
O55 C55 <Shft Stop
