Draper IntelliFlex S1 C112.161 Manual

S1 C112.161 & S2 C112.162 - Wired Wall Switch

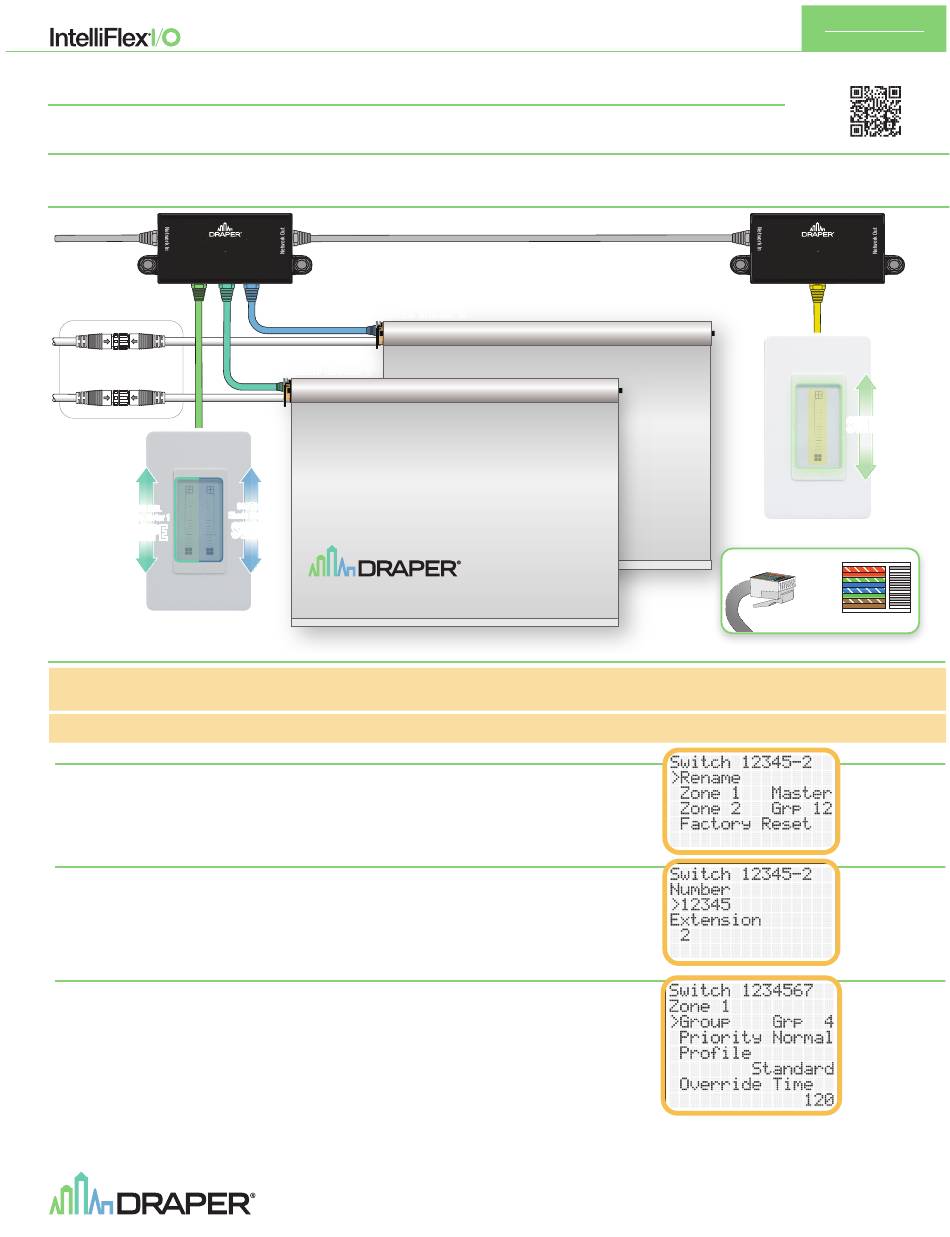

Section 1 - Overview
The Intelliflex I/O Single Zone or Dual Zone wall switch is a smart user input device that can control a single shade or group of shades.
Section 2 - Mounting
Using supplied fasteners, install switch into standard gang box. Screwless face plate (provided) can be used, or any decora style faceplate can be used if preferred.
Section 3 - Wiring Details

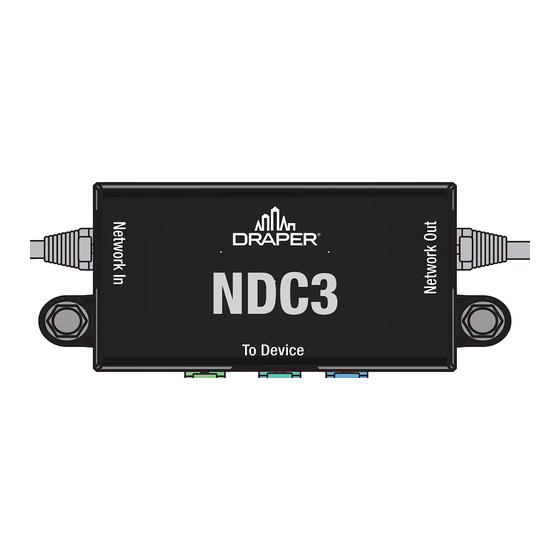

NDC3
To Device
M12 Connectors
to 120VPower Supply
CONTROL
Shade Motor 1
SWIPE
Dual Zone Switch
Section 4 - Programming
Please Note: Ensure all low voltage connections have been tested & verified. Attempting to program with faulty wiring can lead to intermittent operation.
Refer to MLT (C202.060) Instructions on suggested network verification steps and how to connect MLT into network for programming.
Please Note: It is important to ensure all shade commissioning (limit setting, naming, calibration, etc.) has been completed prior to attempting to program the switch.
4.1 Identify/Select Switch
1. From MLT main menu, select DEVICE SETTINGS then select SWITCH
2. Choose Switch from list of switches on network
3. To identify switch, highlight switch and LEDs on switch will blink rapidly to identify it.
4.2 Renaming Switch
1. Select RENAME
2. Switch can be assigned a numerical value for easier identification.
4.3 Configuring Switch Parameters
1. Select Switch Zone to configure
2. If using a Dual Zone switch, Zone 1 is the left zone & Zone 2 is the right zone
From this menu, you can configure the following parameters:
Group: Assigning switch to previously configured shade group or assign as a MASTER.
Priority: Low - switch will only operate if there are no other overrides on the group
Normal - switch will operate shade group if no HIGH priority overrides on the group
High - Switch will lock-out all other controls until cleared
Profile: Please refer to section 4.5 for profile descriptions.
Override Time: Time in minutes that the switch override will be active.
The range can be NONE (indefinite override) or anywhere from 1-999 minutes
RJ45 to RJ45
Shade Motor 2 Shade Motor 2
Connection
Shade Motor 1 Shade Motor 1
CONTROL
Shade Motor 2
SWIPE
Motorized FlexShade
Data Network CAT5 or better
RJ45 to RJ45 Connection
I/O
®
