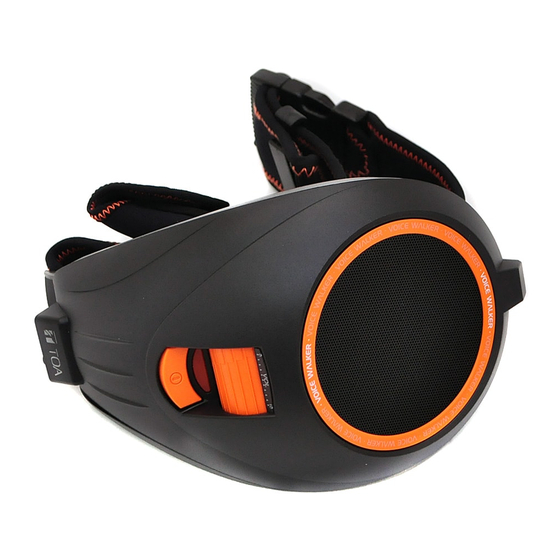

PERSONAL PA SYSTEM
Headset microphone
(Accessory)
Main PA unit
Battery spacer
(accessory: in sets of 2)

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS ................. 2
2. GENERAL DESCRIPTION ............... 2
3. FEATURES ....................................... 3
FUNCTIONS ...................................... 4
6. BATTERY REPLACEMENT ............. 6
Thank you for purchasing TOA's Personal PA system.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your
equipment.
INSTRUCTION MANUAL
Extension Belt
(Accessory)
SPACER (ACCESSORY) ................. 7
8. BELT USE ......................................... 8
- SMART USE ................................ 10
10. SPECIFICATIONS .......................... 11
ER-1000 WR
Note: Image of use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ER-1000 WR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa ER-1000 WR

Summary of Contents for Toa ER-1000 WR

  • Page 1: Table Of Contents

    – SMART USE ........ 10 5. NOMENCLATURE AND 10. SPECIFICATIONS ......11 FUNCTIONS ........4 6. BATTERY REPLACEMENT ..... 6 Thank you for purchasing TOA's Personal PA system. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Safety Precautions

    · When the unit is not in use for 10 days or more, be sure to take the batteries out of the unit. 2. GENERAL DESCRIPTION TOA’s ER-1000 WR is a compact, lightweight, hands-free portable public address system with a rated power output of 6 watts (9-Volt DC when used with six AA-type batteries).

  • Page 3: Features

    • Should any of the following irregularities occur, immediately turn off the power and consult your TOA dealer. Continuing to use the product without following this instruction may cause a malfunction. · When water or foreign objects get inside the product ·...

  • Page 4: Nomenclature And Functions

    5. NOMENCLATURE AND FUNCTIONS [Personal PA – Top Side] Volume Volume Control [VOL] Volume increases as this knurled roller is rotated toward the speaker and decreases as it is rotated away from the speaker. Note • The auxiliary (AUX) input volume cannot be adjusted. The volume must be adjusted at the connected external device.
  • Page 5 [Personal PA – Underside] Belt Clip Secures the loose end of the belt after length adjustment. Pouch Buckle A Holds a music player, standby batteries, battery spacers, etc. Belt (with pouch) An elastic one-touch buckle-type belt. Attach snugly around the waist. Refer to Belt Use on page 8.

  • Page 6: Battery Replacement

    6. BATTERY REPLACEMENT AA-type alkaline (LR6), black manganese (R6PU) or nickel-metal hydride (HR15/51) batteries can be used to power the product. Please use only a single type of battery. Notes • Batteries are not included. Please purchase separately. • Explanatory diagrams for Steps 2 to 4 omit the Belt. Belt Step 1.

  • Page 7: Using The Battery Spacer (Accessory)

    Step 3. Insert six AA-type batteries. Notes • Batteries are not all positioned facing the same direction. Take note of the positive (+) and negative (–) ends on the batteries and insert them correctly in the directions indicated. • Ensure the batteries are firmly inserted into the storage space.

  • Page 8: Belt Use

    8. BELT USE The Personal PA can be worn on either side of the body. (Belt length: 55 – 120* cm or 1.8 – 3.94* ft). Adjust the Belt to the correct length before fastening it. * The 120 cm (3.94 ft) length is when the Belt is stretched out to its maximum extent. When worn, consider a Belt length of 100 cm (3.28 ft) of waist size when clothes are worn as a rule- of-thumb standard.
  • Page 9 8.3. Fastening the Belt Step 1. Adjust the length of the Belt. The length of the Belt is adjusted on the Buckle A side. Pulling on the long end of Note the Belt will lengthen it. To ensure a snug fit around the waist, Pulling on the end of the adjust the length when worn while the Belt will shorten it.

  • Page 10: Personal Pa System - Smart Use

    9. PERSONAL PA SYSTEM – SMART USE • Connecting a commercially available audio player to the auxiliary (AUX) input jack allows background music to be provided while the user is talking. Main PA unit Headset microphone (accessory) Commercial 3.5 mm (1/8” ) stereo mini-plug cable (without resistor) Commercial audio player (Adjust volume here.)

  • Page 11: Specifications

    10. SPECIFICATIONS Power Source Alkaline battery (LR6): 6 pieces (9 V DC) or 4 pieces* (6 V DC) Rechargeable nickel metal hydride (NiMH) battery (HR15/51): 6 pieces (7.2 V DC) or 4 pieces* (4.8 V DC) Black manganese battery (R6PU): 6 pieces (9 V DC) or 4 pieces* (6 V DC) Output...
  • Page 12 • The design and specifications are subject to change without notice for improvement. [Accessories] Headset microphone (with headband and wind screen) ....1 Belt (attached to the Personal PA) ..........1 Extension belt ................. 1 Battery spacer ................2 URL: http://www.toa.jp/ C33-31-010-0A...
