  • Page 1 ALIGN SERIES DELAY USER’S GUIDE...

  • Page 2: Getting Started

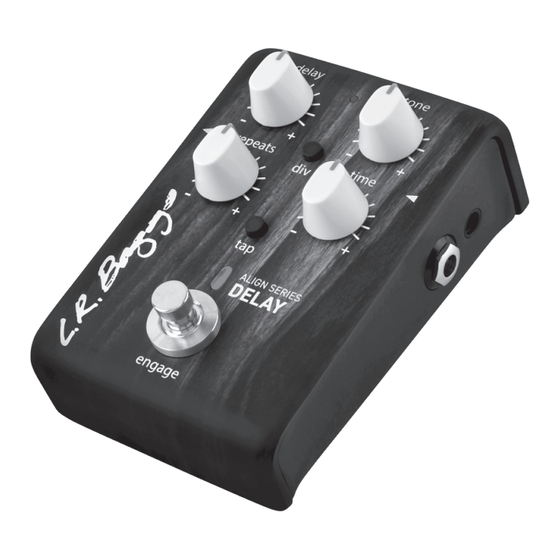

    INTRODUCTION The Align Delay brings a classic effect to acoustic musicians by optimizing the signal for high-fidelity instruments. By expanding the range of your sonic profile while underlining your primary acoustic sound, the Delay augments both rhythm and melody for a larger dimensional sound and feel.
  • Page 3 B. DIVISION This control sets the delay to a dotted eighth note of whatever the tempo is set to. Best used with the tap. C. INSTRUMENT INPUT The ¼” input is an unbalanced (mono), all-discrete input. Plugging into the input will activate the Delay, therefore, unplugging will turn the system off.
  • Page 4 D. TIME This control sets the time between the original signal and the repeated signal. The max time is about one second. This control will override the tap when used. E. TAP This control allows you to manually set the delay tempo. Tap multiple times at the desired delay tempo.
  • Page 5 J. TAP TEMPO INPUT This jack allows for the connection of an external tap tempo footswitch or time control device to be used with the pedal. SIDE FEATURES A. DC INPUT The DC power input is designed for a standard 2mm plug commonly used with effects pedals and “floorbox”...

  • Page 6: Specifications

    SPECIFICATIONS 1/4” INPUT Input Impedance: 2.2 Megohms Preamp Gain: +0dB Input Level: -25dBv to +4.0dBv (0.056Vrms to 1.591Vrms) LINE OUTPUT Output Level: +5.8dBv (1.945Vrms) Un-Balanced Output Impedance: 220 Ohms DELAY Max Delay Time: 1.0 Second POWER DC Power Consumption: 450mW Max at 9V DC Current Draw: 48mA Voltage Range: 7.5VDC –...

  • Page 7: Limited Warranty

    Register the Align Delay online at: lrbaggs.com/register LIMITED WARRANTY L.R. Baggs warrants to the using purchaser that this product shall be free of defects in workmanship and materials under normal and proper use for a period of one year. If you experience problems with the Align Delay, please contact your dealer.
  • Page 8 483 N. Frontage Road, Nipomo, CA 93444 ph: 805.929.3545 lrbaggs.com...
