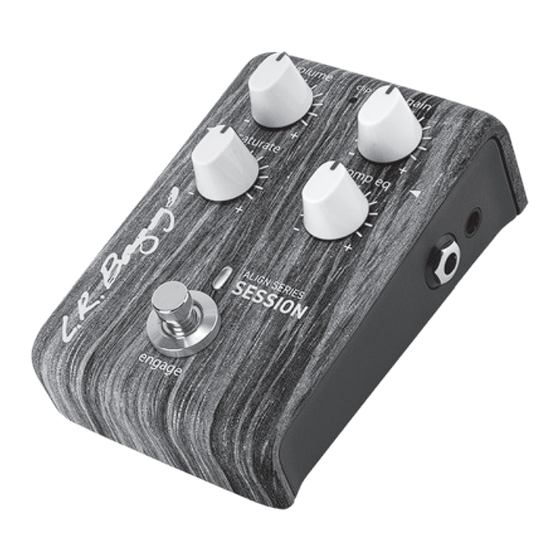

- Page 1 ALIGN SERIES SESSION USER’S GUIDE...
-
Page 2: Getting Started
INTRODUCTION Inspired by the LR Baggs Handcrafted Video Sessions and our experience in some of Nashville’s great studios, the Align Session brings our signature studio sound to your live rig. Session circuitry enhances your acoustic pickup and imparts the rich sonic character that you’d expect from an experienced audio engineer using some of the world’s finest studio gear. -
Page 3: Top Features
TOP FEATURES A. GAIN Setting the gain is one of the most important keys to achieving optimum sound quality and signal-to-noise ratio. If you have a volume control on your guitar, make sure it is turned all the way up before setting the gain. Begin with the gain control in the counter-clockwise position. -
Page 4: Instrument Input
playing level. If it flashes too frequently, the input is clipping and you may experience unwanted distortion. B. INSTRUMENT INPUT The ¼” input is an unbalanced (mono), all-discrete input. Plugging into the input will activate the Session, there- fore, unplugging will turn the system off. C. -
Page 5: Side Features
F. ¼” OUTPUT The ¼” output is an unbalanced, line level output. You can plug into any amp or device that has a ¼” input. We recommend running into any other LR Baggs Align pedals, DI’s, or the Synapse Personal PA System. G. -
Page 6: Specifications
SPECIFICATIONS 1/4” INPUT Input Impedance: 5.1 Megohms Preamp Gain: -14dB to +20dB Input Level: -25dBv to +2dBv (0.056Vrms to 1.273Vrms) LINE OUTPUT Output Level: -5dBv (0.566Vrms) Unbalanced Output Impedance: 220 Ohms POWER DC Power Consumption: 24mW Max at 9V DC Current Draw: 2.5mA Voltage Range: 7.5VDC –... -
Page 7: Product Registration & Warranty Information
Register the Align Session online at: lrbaggs.com/register LIMITED WARRANTY L.R. Baggs warrants to the using purchaser that this product shall be free of defects in workmanship and materials under normal and proper use for a period of one year. If you experience problems with the Align Session, please contact your dealer. - Page 8 483 N. Frontage Road, Nipomo, CA 93444 ph: 805.929.3545 lrbaggs.com...
