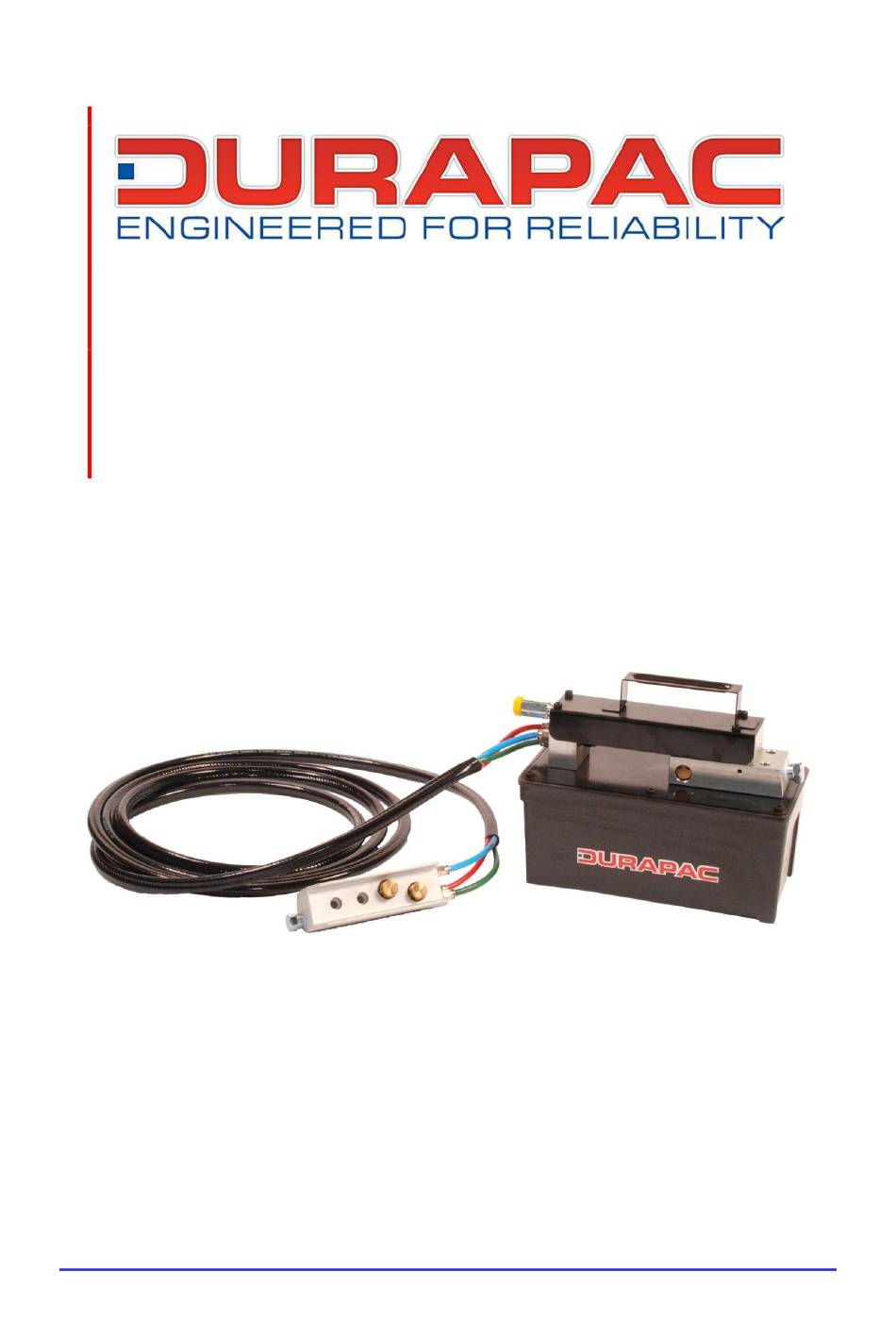

- Page 1 Instruction Manual Reciprocating Air Hydraulic Power Unit Model – DPA-15R Maximum Operating Pressure – 700 bar ABSOLUTE EQUIPMENT PTY LTD – 2/186 Granite Street, GEEBUNG QLD 4034 – Australia sales@absoluteequipment.com.au – Phone: +61 7 3865 4006 – Fax: +61 7 3102 6288...
-
Page 2: Product Information
The user must ultimately make the decision regarding suitability of the product for any given task and assume the responsibility of safety for all in the work area. Contact a Durapac representative if you are unsure of your power unit’s suitability for a particular application. - Page 3 Hydraulic equipment must only be serviced by a qualified hydraulic technician. For repair service, contact the Durapac authorised service centre in your area. To protect your warranty, use only high quality hydraulic oil CAUTION: ...
-
Page 4: Installation
IMPORTANT: To extend the life of your power unit, the air compressor should have a filter, regulator and lubricator system that will provide clean, lubricated air to the power unit. Contact your Durapac representative for the necessary accessories DPA-15R Air Hyd. Power Unit - V1.1 www.durapac.com Page 4 of 10... -
Page 5: Operation
4.1 Familiarise yourself with the specifications and illustrations in this owner’s manual. Know your power unit, its limitations and how it operates before attempting to use. Refer to the specification chart below or if in doubt, contact a Durapac representative. Output Flow Rate... -
Page 6: Maintenance
Install hex plug on unused air input port to prevent air leakage. Figure 2 – DPA-15R – Remote and hose 5.2 Hydraulic connection - Remove manifold plug from oil output port and connect to suitable application using 3/8” NPT connection. -
Page 7: Adding Hydraulic Fluid
Instruction Manual Damage to hydraulic hoses may not be detected during visual inspections. For this reason, Durapac recommends that hydraulic hoses be replaced on a regular basis Tighten connections as needed. Use non-hardening pipe thread compound when servicing connections Dirt, sand, etc. -
Page 8: Troubleshooting
Depressurise power unit and hose Remove application Fill fluid to proper level Poor performance Low fluid level in power unit Ensure proper fluid level DPA-15R Air Hyd. Power Unit - V1.1 www.durapac.com Page 8 of 10... -
Page 9: Parts Breakdown
***Supersedes all previous versions*** Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and position in the assembly sequence. DPA-15R Air Hyd. Power Unit - V1.1 www.durapac.com Page 9 of 10... -
Page 10: Parts List
39 Compressing spring ZBN1058 Items marked with a * are contained within a standard Repair Kit. Serial, model and part numbers need to be quoted when ordering parts. DPA-15R Air Hyd. Power Unit - V1.1 www.durapac.com Page 10 of 10...
