STARVILLE Z100M Par 64 LED User Manual

3000k 100w cw/ww/a led par
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Z100M Par 64 LED
3000K 100W
CW/WW/A
LED PAR
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Z100M Par 64 LED and is the answer not in the manual?

Questions and answers

Related Manuals for STARVILLE Z100M Par 64 LED

Summary of Contents for STARVILLE Z100M Par 64 LED

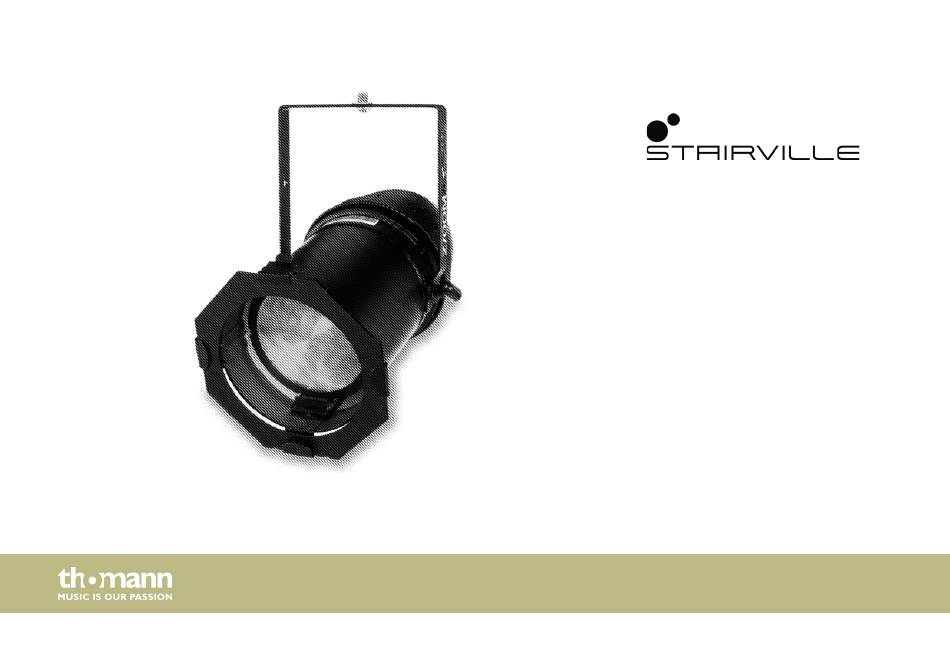

  • Page 1 Z100M Par 64 LED 3000K 100W CW/WW/A LED PAR user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 29.11.2018, ID: 443912...

  • Page 3: Table Of Contents

    Connections and controls........................25 Operating..............................28 7.1 Starting the device........................... 28 7.2 Operating on the unit........................28 7.3 Menu overview..........................39 7.4 Functions in 1-channel DMX mode................... 40 7.5 Functions in 2-channel DMX mode................... 40 Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 4 Table of contents 7.6 Functions in 3-channel DMX mode................... 41 Technical specifications........................42 Plug and connection assignments....................44 Troubleshooting............................45 Cleaning............................... 48 Protecting the environment......................49 LED PAR...

  • Page 5: General Notes

    If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. Z100M Par 64 LED 3000K 100W CW/WW/A...

  • Page 6: Further Information

    General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.

  • Page 7: Notational Conventions

    The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . Z100M Par 64 LED 3000K 100W CW/WW/A...

  • Page 8: Symbols And Signal Words

    General notes Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 9 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – suspended load. Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 10 General notes Warning signs Type of danger Warning – danger zone. LED PAR...

  • Page 11: Safety Instructions

    Extend the life of the device by regular breaks in operation and avoid switching it on and off frequently. This device is not suitable for continuous use. Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 12 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
  • Page 13 Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. WARNING! Eye damage caused by high light intensity Never look directly into the light source. Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 14 Safety instructions WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source.
  • Page 15 Dust and dirt inside can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction. Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 16 Safety instructions NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly injure the user.

  • Page 17: Features

    For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Z100M Par 64 LED 3000K 100W CW/WW/A...

  • Page 18: Installation

    Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 19 When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 20 Installation NOTICE! Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Mounting options You can install the device hanging or on a tripod.
  • Page 21 Installation Please note that this device must not be connected to a dimmer. Z100M Par 64 LED 3000K 100W CW/WW/A...

  • Page 22: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. LED PAR...
  • Page 23 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 24 Starting up DMX indicator When the device and the DMX controller are operational, the DMX indicator in the display shows that a DMX signal is being received on the input. Connections in ‘Master / When you configure a group of devices in ‘Master / Slave’ mode, the first unit will control the Slave‘...

  • Page 25: Connections And Controls

    Connections and controls Connections and controls Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 26 Connections and controls 1 COB LED (100 W) 2 Bracket for floor placement or hanging 3 Locking screws for the bracket 4 [DMX IN] DMX input. 5 [DMX OUT] DMX output 6 Display [MENU] Calls up the main menu or a submenu. Navigates upwards in a menu list.
  • Page 27 Lockable input socket (Power Twist) for power supply 10 Fuse holder If the fuse blows, replace it with a new fuse of the same type. You must first disconnect the device from the power supply. Z100M Par 64 LED 3000K 100W CW/WW/A...

  • Page 28: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. The fan starts to work and the LED lights up. The device is immediately ready for use and the display shows ‘A001’ an. 7.2 Operating on the unit Press [MENU] to activate the main menu.
  • Page 29 Press [ENTER] to accept the selection. This setting is only relevant when the device is controlled via DMX. When the DMX mode is active, a dot flashes in the second digit of the display. Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 30 Operating DMX mode Press [MENU] and then repeatedly until the display shows ‘Chnd’ . Confirm with [ENTER]. to select the desired DMX mode (1, 2 or 3 channels). Depending on the selected mode, the display shows ‘1Ch’ , ‘2Ch’ or ‘3Ch’ an. Press [ENTER] to accept the selection.
  • Page 31 ‘DInd’ . Confirm with [ENTER]. to select the desired dimmer setting. Press [ENTER] to accept the selection. Display Meaning ‘stdA’ Standard setting ‘st9e’ Stage setting ‘tu’ TV setting ‘ArAL’ Building setting ‘thAL’ Theatre setting Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 32 Operating Refresh rate dimmer Press [MENU] and then repeatedly until the display shows ‘FrEq’ . Confirm with [ENTER]. to select the desired refresh rate of the dimmer between 900 Hz and 25 kHz (display shows ‘900’ … ‘25t’ ). Press [ENTER] to accept the selection. Display Display ‘900’...
  • Page 33 Gamma correction ‘2.0’ Gamma correction with exponent 2.0 ‘2.2’ Gamma correction with exponent 2.2 ‘2.4’ Gamma correction with exponent 2.4 ‘2.6’ Gamma correction with exponent 2.6 ‘2.8’ Gamma correction with exponent 2.8 Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 34 Operating Manual control Press [MENU] and then repeatedly until the display shows ‘MAnu’ . Confirm with [ENTER]. to select a value between ‘0’ and ‘255’ . Press [ENTER] to accept the selection. Slave mode Press [MENU] and then repeatedly until the display shows ‘Slnd’ . Confirm with [ENTER].
  • Page 35 ‘blac’ , ‘hold’ and ‘auto’ , to make the setting to be used when the DMX controller fails. Press [ENTER] to accept the selection. Display Meaning ‘blac’ Spotlight turns off. ‘hold’ Last effect is being held. ‘auto’ Spotlight turns on. Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 36 Operating Display illumination Press [MENU] and then repeatedly until the display shows ‘LEd’ . Confirm with [ENTER]. to choose between ‘On’ (display permanently on) and ‘oFF’ (display turns off after a few seconds in case of inactivity). Press [ENTER] to accept the selection. Rotating the Display Press repeatedly until the display shows ‘dISP’...
  • Page 37 Total runtime Press [MENU] and then repeatedly until the display shows ‘FhrS’ . Confirm with [ENTER]. ð The display shows the total runtime of the device. Press [ENTER]. ð The menu is closed. Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 38 Operating Software version Press [MENU] and then repeatedly until the display shows ‘uEr’ . Confirm with [ENTER]. ð The display shows the current software version used by the device. Press [ENTER]. ð The menu is closed. Reset Press [MENU] and then repeatedly until the display shows ‘dEFA’...

  • Page 39: Menu Overview

    Operating 7.3 Menu overview Z100M Par 64 LED 3000K 100W CW/WW/A...

  • Page 40: Functions In 1-Channel Dmx Mode

    Operating 7.4 Functions in 1-channel DMX mode Channel Value Function 0 … 255 Dimmer (0 % to 100 %) 7.5 Functions in 2-channel DMX mode Channel Value Function 0 … 255 Dimmer (0 % to 100 %) 0 … 015 Strobe effect 016 …...

  • Page 41: Functions In 3-Channel Dmx Mode

    Fine dimmer 0 … 015 Strobe effect 016 … 095 Stroboscope effect, increasing speed (1 – 25 Hz) 096 … 175 Stroboscope effect, increasing speed (1 Hz) 176 … 255 Stroboscope effect, random speed Z100M Par 64 LED 3000K 100W CW/WW/A...

  • Page 42: Technical Specifications

    Technical specifications Technical specifications Illuminant 1 × COB LED (100 W), white Colour temperature 3000 K Dimmer 0 – 100 % Refresh rate dimmer 900 Hz – 25 kHz Beam angle 11 °…35 ° Number of DMX channels 1, 2 or 3 channels, depending on operating mode Electronic shutter 1 –...
  • Page 43 Technical specifications Environmental conditions Temperature range 0 °C…40 °C Relative humidity 50 %, non-condensing Z100M Par 64 LED 3000K 100W CW/WW/A...

  • Page 44: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 45: Troubleshooting

    Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 46 Troubleshooting Symptom Remedy The unit does not work, no light, Check the mains connection and the main fuse. the display is dark Apparently no function despite Check whether the device is in DMX mode. If so, check proper power supply the unit in another mode.
  • Page 47 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Z100M Par 64 LED 3000K 100W CW/WW/A...

  • Page 48: Cleaning

    Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.

  • Page 49: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Z100M Par 64 LED 3000K 100W CW/WW/A...
  • Page 50 Notes LED PAR...
  • Page 52 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
