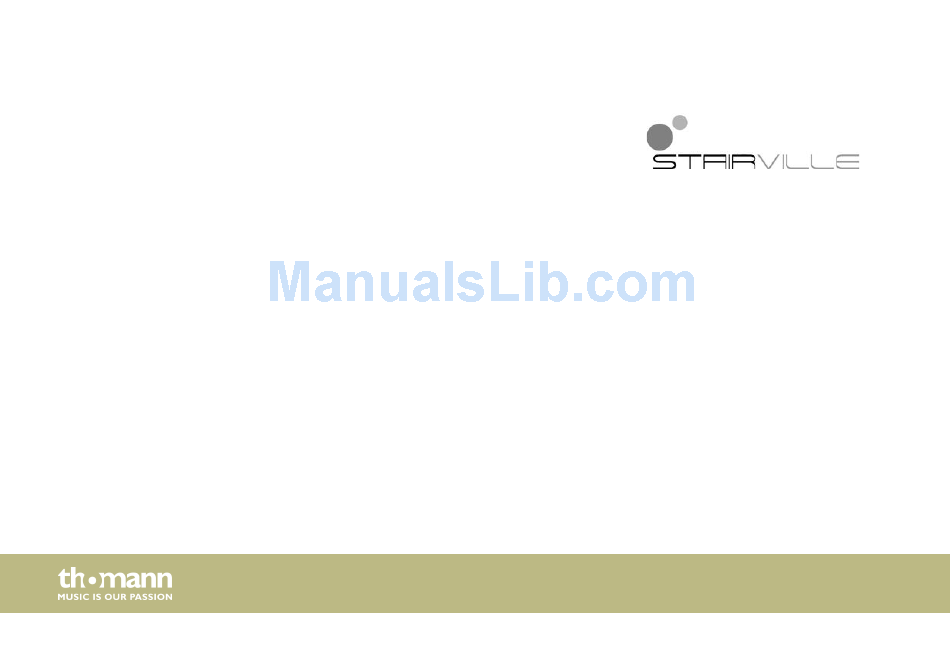

- Page 1 RevueLED 120 COB DMX LED spotlight user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 19.07.2016, ID: 393346, 393504...
-
Page 3: Table Of Contents
1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 8 Safety instructions..........................11 Features............................... 16 Installation..............................17 Starting up..............................21 Connections and controls........................24 Operating..............................27 Technical specifications........................29 Plug and connection assignments....................30 Troubleshooting............................31 Cleaning............................... 33 RevueLED 120 COB DMX... - Page 4 Table of contents Protecting the environment......................34 LED spotlight...
-
Page 5: General Notes
If you sell the unit please make sure that the buyer also receives this manual. Our products are subject to a process of continuous development. Thus, they are subject to change. RevueLED 120 COB DMX... -
Page 6: Further Information
General notes 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 7: Notational Conventions
The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . RevueLED 120 COB DMX... -
Page 8: Symbols And Signal Words
General notes Instructions The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 9 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – suspended load. RevueLED 120 COB DMX...
- Page 10 General notes Warning signs Type of danger Warning – danger zone. LED spotlight...
-
Page 11: Safety Instructions
This device may be used only by persons with sufficient physical, sensorial, and intellectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety. RevueLED 120 COB DMX... - Page 12 Safety instructions Safety DANGER! Danger for children Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit.
- Page 13 WARNING! Eye damage caused by high light intensity Never look directly into the light source. WARNING! Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. RevueLED 120 COB DMX...
- Page 14 Safety instructions NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
- Page 15 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. RevueLED 120 COB DMX...
-
Page 16: Features
Features Features LED spotlight for very large-area and uniform lighting in showrooms or workshops, trade show booths, etc. LED configuration – RevueLED 120 COB 3200K DMX with 1 COB LED in warm white – RevueLED 120 COB 7000K DMX with 1 COB LED in cold white Replacement for 575 W daylight lamps Control via DMX and via buttons and display on the unit powerCon connectors for self-supply and for supplying further devices... -
Page 17: Installation
Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. RevueLED 120 COB DMX... - Page 18 Installation NOTICE! Risk of overheating Always ensure sufficient ventilation. The ambient temperature must always be below 40 °C (104 °F). NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand.
- Page 19 Work from a stable platform whenever you install or move the device or when you perform any kind of maintenance. Block access under the work area. The safety cable must be attached to the bracket. RevueLED 120 COB DMX...
- Page 20 Installation Please note that this device must not be connected to a dimmer. LED spotlight...
-
Page 21: Starting Up
Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. RevueLED 120 COB DMX... - Page 22 Starting up Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain.
- Page 23 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. RevueLED 120 COB DMX...
-
Page 24: Connections And Controls
Connections and controls Connections and controls LED spotlight... - Page 25 6 Display and control buttons: [Menu]: Activates the main menu and toggles between menu items. [Up]: Increases the displayed value by one. [Down]: Decreases the displayed value by one. [Enter]: Selects an option of the respective operating mode. RevueLED 120 COB DMX...
- Page 26 Connections and controls 7 Locking screw for fixing the spotlight. 8 Safety eyelet. LED spotlight...
-
Page 27: Operating
Use [Up] and [Down] to assign a DMX address in the range from ‘A001’ … ‘A511’ to the device (highest possible DMX address in 2-channel operation). The following table shows the assignment of the two DMX channels. Channel Function Value Dimmer function 0% … 100% Strobe effect 0% … 100% RevueLED 120 COB DMX... - Page 28 Operating Operating mode ‘Stroboscope’ This setting is only relevant if the device is not controlled via a DMX controller. Press [Menu], use [Up] and [Down] to select the menu option ‘Strobe’ . Use [Up] and [Down] to specify the flash frequency for the Strobe effect in a range from ‘ST00’...
-
Page 29: Technical Specifications
Operating supply voltage AC 100–240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, slow-blow Dimensions (W × H × D) 250 mm × 160 mm × 440 mm Weight 5.5 kg RevueLED 120 COB DMX... -
Page 30: Plug And Connection Assignments
Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’... -
Page 31: Troubleshooting
Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: RevueLED 120 COB DMX... - Page 32 Troubleshooting Symptom Remedy The unit does not work, no Check the mains connection and the fuse. light. No response to the DMX con‐ 1. Check the DMX ports and cables for proper connection. troller. 2. Check the address settings and the DMX polarity. 3.
-
Page 33: Cleaning
The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device. Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. RevueLED 120 COB DMX... -
Page 34: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
