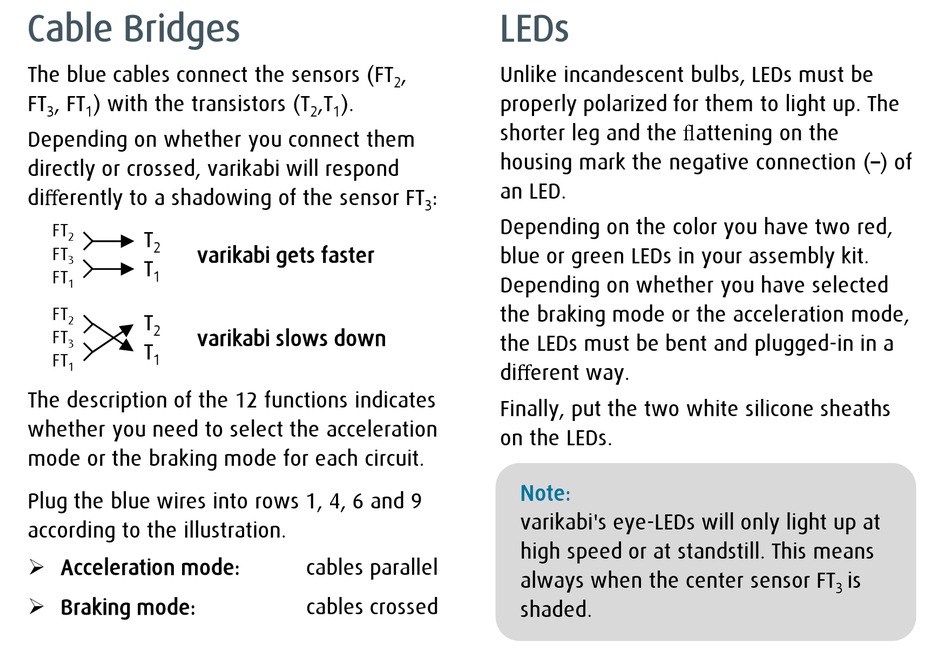

Cable Bridges
The blue cables connect the sensors (FT
FT , FT ) with the transistors (T
3 1
Depending on whether you connect them
directly or crossed, varikabi will respond
differently to a shadowing of the sensor FT
FT
T
2
2
varikabi gets faster
FT
3
T
FT
1
1
FT
T
2
2
varikabi slows down
FT
3
T
FT
1
1
The description of the 12 functions indicates
whether you need to select the acceleration
mode or the braking mode for each circuit.
Plug the blue wires into rows 1, 4, 6 and 9
according to the illustration.
 Acceleration mode:
 Braking mode:
,
2
,T ).
2 1
:
3
cables parallel
cables crossed
LEDs
Unlike incandescent bulbs, LEDs must be
properly polarized for them to light up. The
shorter leg and the flattening on the
housing mark the negative connection (–) of
an LED.
Depending on the color you have two red,
blue or green LEDs in your assembly kit.
Depending on whether you have selected
the braking mode or the acceleration mode,
the LEDs must be bent and plugged-in in a
different way.
Finally, put the two white silicone sheaths
on the LEDs.
Note:
varikabi's eye-LEDs will only light up at
high speed or at standstill. This means
always when the center sensor FT
shaded.
