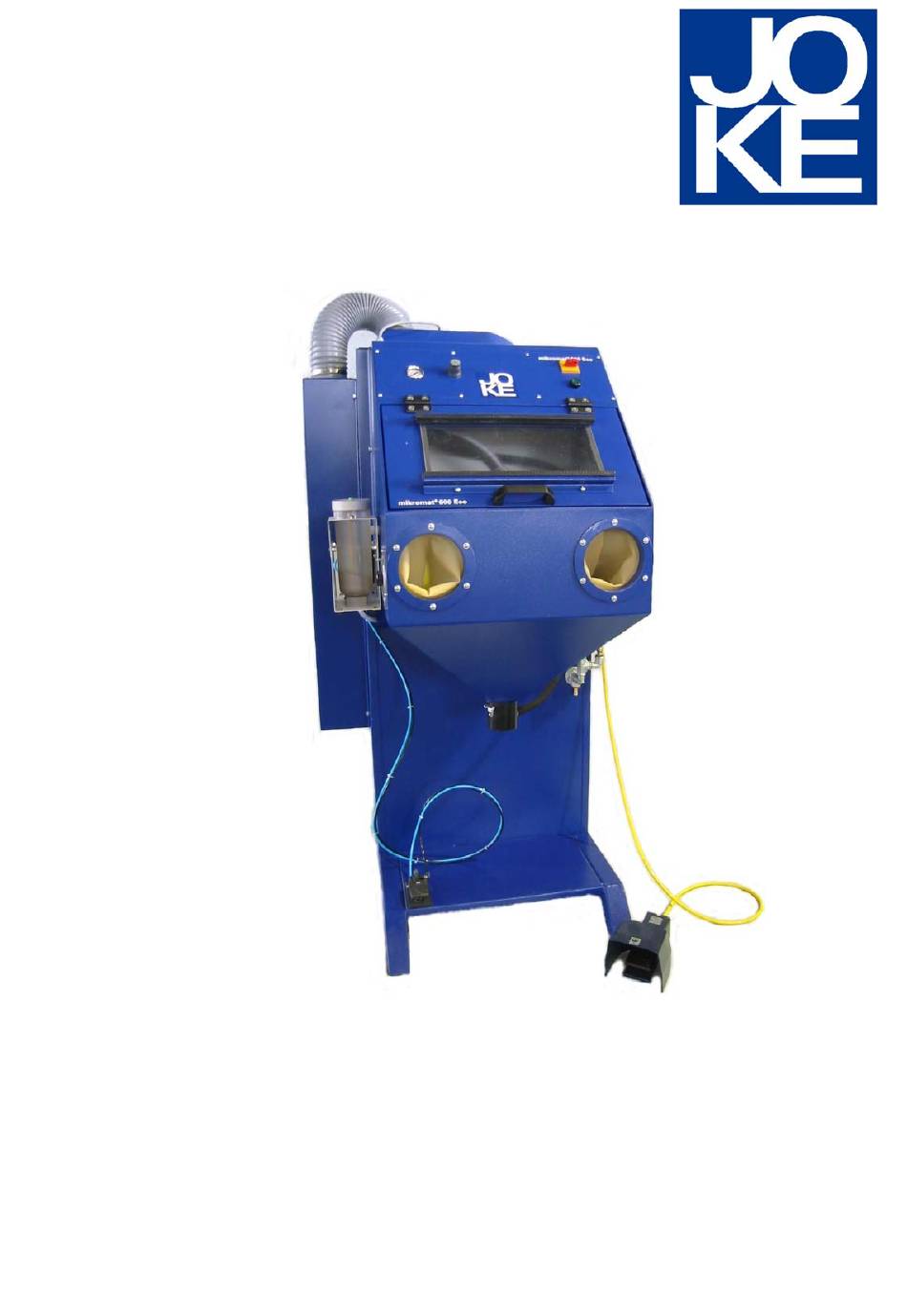

Page 1 600 eco Fine Dry Blasting Unit Instruction Manual...
Page 2: Table Of Contents
List of contents List of contents ..................Page 02 Tips on using the manual..............Page 03 Safety instructions ................Page 04 Warranty ....................Page 07 Device overview................. Page 08 Technical data..................Page 14 Processing instructions ............... Page 15 Troubleshooting .................. Page 16 Care and maintenance..............
Page 3: Tips On Using The Manual
Telephone +49 (0) 22 04 / 8 39 - 0 Telefax +49 (0) 22 04 / 8 39 - 86 www.joke.de INFORMATION! Spare parts lists and instruction manuals for our products can be found on the Internet. J O KE i n s t r u c t i o n m a n u a l ®...
Page 4: Safety Instructions
Safety instructions This device has been built according to the latest technical stan- dards and generally accepted safety regulations. Nevertheless, it can constitute a risk to the operator or third parties and a hazard to the device itself or other equipment during use. (1) Only use the device if in perfect working order and for its in- I M P O R T A N T ! tended purpose.
Page 5 (9) Spare parts must meet the technical requirements specified by the manufacturer. This can only be guaranteed with original JOKE spare parts. (10) Any work on/with the device may only be carried out by quali- fied, appropriately trained and authorised personnel. Pay atten-...
Page 6 Safety instructions (20) It is essential to observe the manufacturer’s processing instruc- I M P O R T A N T ! tions in handling the blasting shot (21) Working with explosive blasting shots is forbidden. C A U T I O N ! (22) Workpieces that result in explosive dusts must not be processed C A U T I O N ! with this unit.
Page 7: Warranty
Warranty Joisten & Kettenbaum warrant the correct manufacture of every Joisten & Kettenbaum product which is delivered in accordance with the terms of contract and delivery. This warranty does not cover wearing parts or components carrying blasting shot as well as damages caused by normal wear and tear, incorrect handling, negligent use, the fitting of non-original spare parts, inadequate care and/or a failure to comply with this techni- cal manual.
Page 8: Device Overview
Device overview Intended use The device is intended for abrasive material processing by fine blast- ing with various blasting media. Among others, the following blasting processes are possible: • Scale removing after hardening. • Smoothing of plastic and diecasting moulds, compression moulding dies and embossing dies.
Page 9 Device overview Installation and starting the unit for the first time Installation site The unit must not be installed in an environment where there is a risk of explosion or in rooms with a risk of explosion. The unit must not be installed in damp rooms or in rooms with high relative humidity.
Page 10 Device overview Overview of entire unit Fig. 5.1 Main switch Start button and indicator light Working pressure controller Working pressure gauge Air inlet Run-off container Afterfilter with cartridge, 120 x 1000 m Microblast blasting device Microblast foot switch Blasting unit foot switch Filter cartridges, 240 x 600 mm Dust bag J O K...
Page 11 Device overview Installation and starting the unit for the first time In order to prevent the blasting shot contained in the cabin from absorbing humidity, the unit should always be installed in a dry place. This of course also applies to the storage place of the blasting shot.
Page 12 Device overview 7. The safety end switch serves to interrupt the blasting proc- ess if the cabin hood is open. If the cabin is opened during blasting, the blasting process is interrupted automatically in order to avoid accidents. 8. The dosing system and run-off container is equipped with a patent quick-release lock.
Page 13 Device overview Filter system The system consists of different types of filter: 1. The air supply rosettes allows the air aspirated by the fan to enter the blasting chamber. Negative pressure results, which prevents the blasting shot from escaping during blasting. 2.
Page 14: Technical Data
Technical data Power supply Supply voltage 400 V AC 50 Hz Connected load 0.55 W Fusing 16 A Load factor 100 % Type of protection IP 30 Compressed-air connection External air pressure k max. 8 bar Compressed-air control range 0.5 – 8 bar Compressed-air connection thread 1/2“...
Page 15: Processing Instructions
Processing instructions Notes concerning blasting shot The suitable blasting shot can be found in the JOKE catalogue in ® the “cleaning and blasting equipment” chapter. Take care to use the shot in the dry state and free of lumps. The suitable blasting shot for the various different requirements...
Page 16: Troubleshooting
Troubleshooting Malfunction Possible cause Remedy • Excessive dust is Worn, damp or Change blasting generated lumpy blasting shot shot Prefilter blocked Check whether the dust collection chamber is over- filled. Main filter blocked Check whether the dust collection drawer has been in- stalled firmly sealed.
Page 17: Care And Maintenance
Care and maintenance Care Only clean the device with a soft brush or dry cloth if required. Clean the inside and outside of the window. I M P O R T A N T ! Do not damp clean! Maintenance work I M P O R T A N T ! The maintenance work must only be performed by appropriately trained specialists.
Page 18: Blasting Shot
Blasting shot Order no. Applications Grit size Description 5 l contai- 25 kg 50 kg bag Mixed grits Improving of surfaces, cleaning, deburring, descaling and preparation of surfaces coarse, stock-removing 500-150 MK 40/90 0 955 102 medium, stock-removing fine, stock-removing 150-75 MK 90/150 0 955 122...
Page 19 Blasting shot Order no Applications Grit size Description 5 l contai- 25 kg 50 kg bag Ruby Fine deburring, removal of insulating layers, cleaning of non-ferrous and precious metals, decoration 150-125 RUB 100 0 955 502 0 955 505 High purity, tenacious hard 105-75 RUB 150 0 955 512...
Page 20: Telefax Form
____________________________ as a pdf file to my e-mail address _____________________________ mikromat 50 eco Order no. 0 951 100-5 mikromat 600 eco Order no. 0 952 000 mikromat 800 Order no. 0 950 400 mikromat 1100 eco Order no.. 0 952 001...
Page 21 JOISTEN & KETTENBAUM GmbH & Co. KG Asselborner Weg 14 - 16 Technical D-51429 Bergisch Gladbach modifications Telephone: 0 22 04 / 8 39-0 reserved Telefax: 0 22 04 / 8 39-60 Internet: www.joke.de ® © JOKE 01/04 E-Mail: info@joke.de...
