3.3 Rear Side Connection

The rear side male connections (AC input voltage, DC output voltage and signals) are shown in figure 4)
and are defined in the table below.

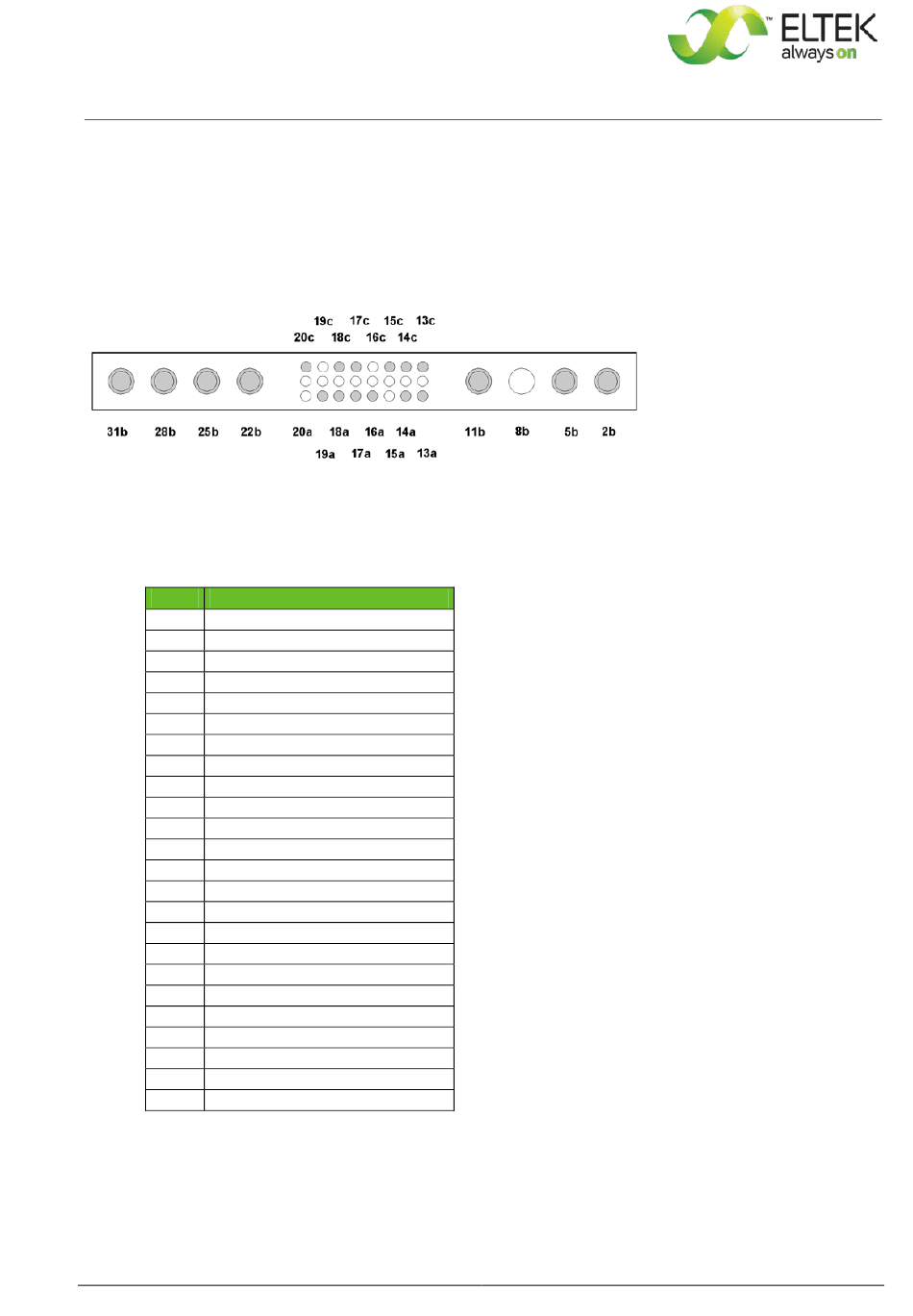

Figure 4) - Male connectors (shown from the rear side of the module)
Pin assignment of the rear side connector:
Pin Function
2b L1 - Input
5b N - Input
8b - - -
11b PE
13a CAN - CVSS
13c (-) output voltage sense link
14a CAN - H
14c CAN - L
15a - - -
15c CAN - CVCC
16a AGND
16c - - -
17a Hardwarecoding CODE2
17c Hardwarecoding CODE1
18a Collective Alarm NC
18c Collective Alarm COM
19a Collective Alarm NO
19c - - -
20a - - -
20c (+) output voltage sense link
22b (-) Output
25b (-) Output
28b (+) Output
31b (+) Output
