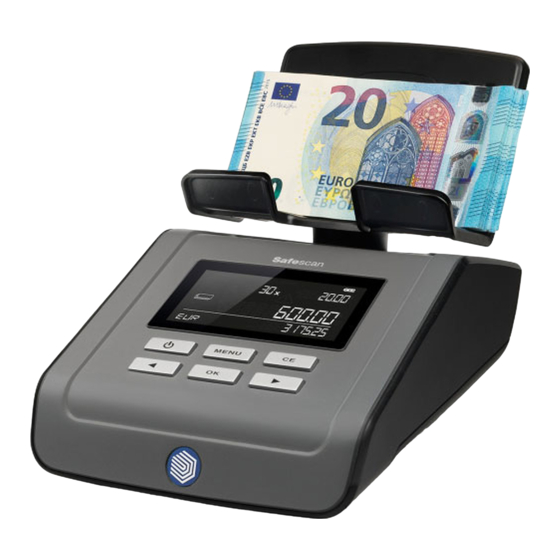

- Page 1 MANUAL English | Nederlands | Deutsch | Français | Español | Italiano Português | Polski | Česky | Slovenčina | Magyar | България 6165 MONEY COUNTING SCALE...
-
Page 2: Table Of Contents
05. TROUBLESHOOTING page 3 page 17 1.1 Product 1.2 Display and buttons 06. RECHARGEABLE BATTERY page 19 1.3 Placing your Safescan 6165 1.4 Function shortcut keys 07. UPDATES page 19 02. FIRST TIME USE page 5 2.1 Set region 08. PRECAUTIONS FOR USE page 20 2.2 Select currency... -
Page 3: Introduction
English 1. INTRODUCTION This User Manual shows all detailed operating instructions of the Safescan 6165. We strongly recommend you to save a copy of this full user manual on your computer for future reference. PACKAGE CONTENTS The retail box contains the following items:... -
Page 4: Display And Buttons
Power ON/OFF Open settings menu Clear entry / back Navigation Confirm selection / Add value to total 1.3 PLACING YOUR SAFESCAN 6165 Place the device on a flat Place the money platform Connect the power adapter to and stable surface. -
Page 5: First Time Use
Software version and Currency weight table version numbers may change due to continuous improvements, added features or currency updates. Check www.safescan.com regularly for availability of new software updates. During the first startup, the machine will ask for some settings, which will be set for future use: 2.1 SET REGION... -
Page 6: The Counting Procedure
A ‘beep’ will sound to confirm. The 6165 will automatically switch to the next coin denomination. Alternatively, use the buttons to select a denomination. After the highest value coin denomination has been counted, the 6165 will automatically switch to the lowest value banknote denomination. www.safescan.com... -
Page 7: Counting Banknotes
“Remove Some”. Remove a few banknotes has been able to determine the amount of banknotes. (max. 5 pcs at a time) until the 6165 has been able to Continue to add more banknotes on the platform in small determine the amount of banknotes. -
Page 8: Counting Old And New Versions Of The Same
When mixed counting of 2 versions of the same denomination is not possible due to the weight diffe- rence, the 6165 will ask for banknote version 1 (old) and version 2 (new) to be counted. The version to be counted is indicated on the display. -
Page 9: Ending A Count
Run the optional Money Counting Software on your PC and click on the Count Data icon to download the count data from the 6165 to the software. For more details, see the user manual of the Safescan Money Counting Software, which can be found on www.safescan.com... -
Page 10: Device Menu And Operation
English 4. DEVICE MENU AND OPERATION This chapter describes the operation of the Safescan 6165, as well as the menu structure of the device. 4.1 GENERAL OPERATION When a certain action is required or when several options are possible, the buttons can be used to navigate. -
Page 11: New Count
The count screen will show the set amount as negative start result. 4.2.3 PRINT When you connected a Safescan The screen will show PRINTING, while The machine will go back to the count TP-230 printer*, you can print your the printout is created. -
Page 12: Scale
The Safescan 6165 is also able to count coin rolls, banknote bundles and a second coin cup. These first have to be calibrated on the 6165. To enter the calibration mode, when the CALIBRATE screen is shown. When in calibration mode, use press buttons to navigate to the desired denomination. - Page 13 The Safescan 6165 is configured to count with standard 33.5 gr coin cups. Some cash drawer manufacturers however may have coin cups with a different weight. You can configure your Safescan 6165 to count using a second coin cup. The machine will show that the cup...
-
Page 14: Set Device
Now set year, month hours. Press to confirm. minutes. Press to confirm. and day in the same way. www.safescan.com... -
Page 15: B: Back To Factory Default Setting
(see retail box or enter the 1st 7 digits of the serial number’) - You will now see a list of downloads for your 6165. Select the update package and follow the instructions on your screen to download the file. -
Page 16: D: Region Setting
English D. REGION SETTING Select the region where you will be using your Safescan 6165. Use the buttons to toggle between “EUROPE”, “UK”, “USA”, “S-E ASIA” and “AUSTRALIA”. Press to confirm. 4.2.8 AUTO ADD By activating the AUTO ADD function, the amount of a counted denomination is automatically added to the total counting result once the items are removed from the platform. -
Page 17: Troubleshooting
SOLUTION: Remove all weight from the platform. If the message disappears: continue using your 6165 as normal. if the message remains: switch off the 6165 and switch it back on. If the message appears frequently, contact Safescan custo- mer support.,... - Page 18 English REMOVE .. - .. PCS The weight on the scale is too high for the 6165 to determine the exact amount of coins or banknotes. SOLUTION: Remove as many coins or banknotes from the money platform as indicated, until the 6165 has been able to deternime the amount.
-
Page 19: Rechargeable Battery
Weight table updates are done via the free currency update software tool. This software will automatically check for firmware updates and load the latest weight table file to your 6165, Instructions are supplied with the update package, which can be downloaded from www.safescan.com. www.safescan.com... -
Page 20: Precautions For Use
- Do not drop, hit or shake the 6165. - Do not spill any liquid or chemical (cleaning) spray on the 6165. If any liquid is spilled on the device, turn off the power and disconnect the power from the mains supply socket as soon as it is safe. Remove the battery (when installed) and contact Safescan for assistance. - Page 22 Safescan is a registered trademark of Solid Control Holding B.V. ® No part of this catalog may be reproduced in any form, by print, copy or in any other way without prior written permission of Solid Control Holding B.V. Solid Control Holding B.V. reserves all intellectual and industrial property rights such as any and all of their patent, trademark, design, manufacturing, reproduction, use and sales rights.
