Master Lock 3685 Mounting Instructions

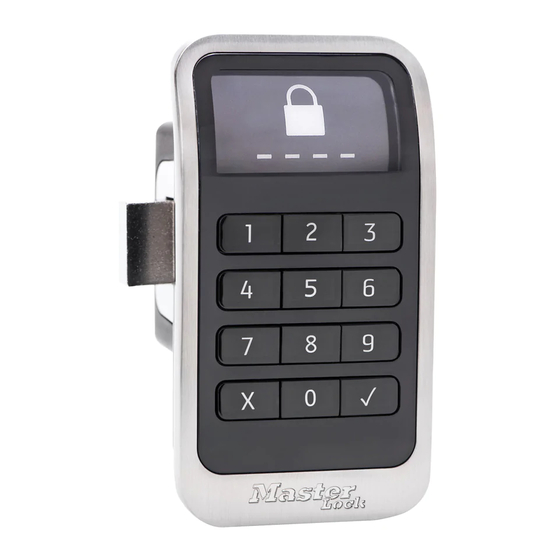

3685 & 3681 Electronic Built-In
Locker Lock

Strike Plate Mounting Instructions

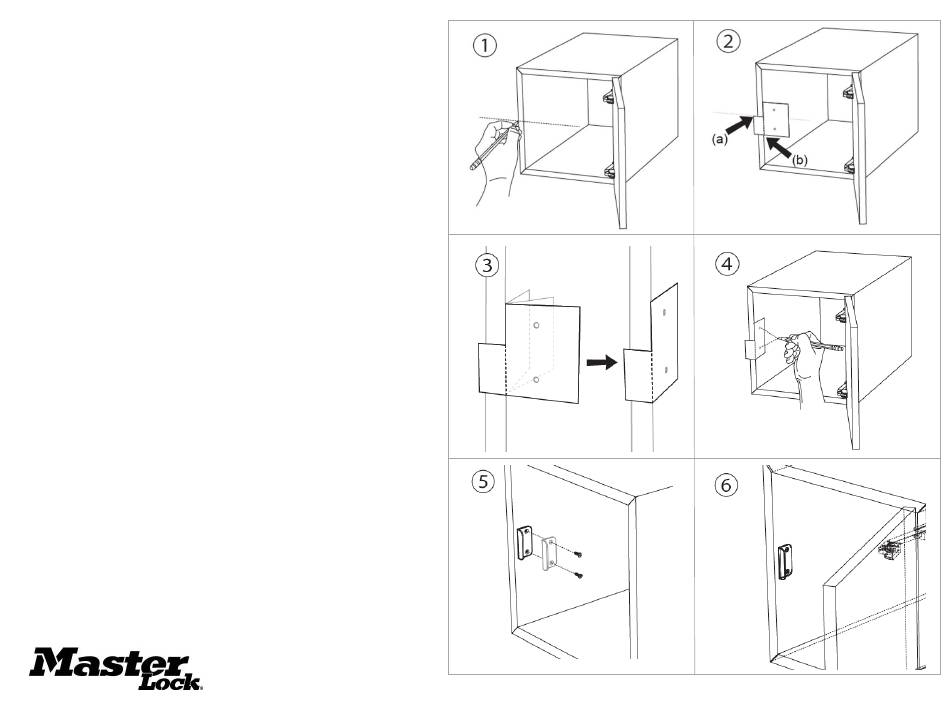

1. Locate center line of inside locker.
2. Place mounting template on locker sidewall
& align center line of template with center
line of locker (a), keeping dotted line of
template on locker wall edge (b).
3. Fold template on dotted line using the edge
of the locker wall.
4. Mark hole placement for strike screws.
5. Screw strike to locker wall using provided
screws.
6. You have successfully mounted the strike.
